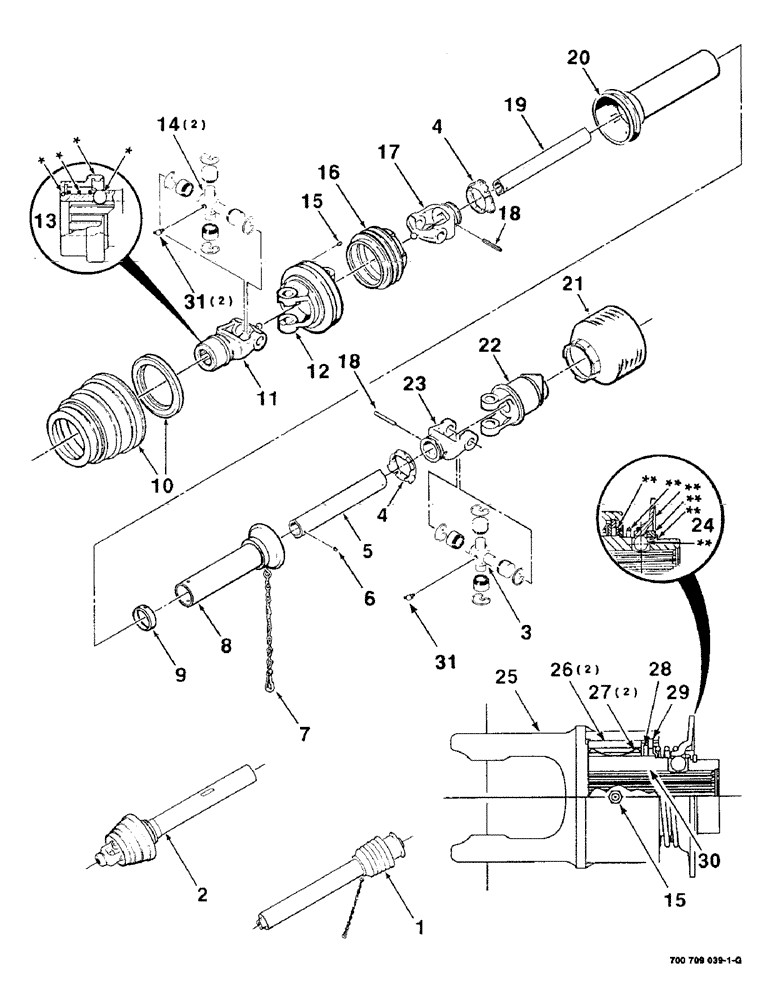

Запчасти Case IH 8545 (2-04) - IMPLEMENT DRIVELINE (WALTERSHIED) Driveline

1

700709079

JOINT

U-JOINT ASSEMBLY - implement half

1шт.

2

700709078

JOINT

U-JOINT ASSEMBLY - tractor half

1шт.

3

8804478

TOGGLE

JOURNAL REPAIR KIT - clutch end

1шт.

4

8800633

BEARING COVER

RING - bearing, shield

2шт.

5

700709062

PROFILE

TUBE - inner, drive

1шт.

6

700707556

NIPPLE, LUBE

ZERK

1шт.

7

1281453C1

CHAIN (AG)

CHAIN - safety

1шт.

8

700709067

SHIELD

TUBE - shield, inner

1шт.

9

700706769

SUPPORT

BEARING - support

1шт.

10

700709068

SHIELD

CV CONE AND BEARING ASSEMBLY

1шт.

11

700709060

FORK

YOKE - splined, front

1шт.

12

700709074

FORK

HUB YOKE - double

1шт.

13

700707557

KIT

COLLAR KIT - quick disconnect, Includes items in art marked with asterisk

1шт.

14

700709076

CROSS

JOURNAL REPAIR KIT - front

2шт.

15

77552

NIPPLE, LUBE

ZERK

2шт.

16

700709070

SHIELD

- cone, 3 rib

1шт.

17

700709075

FORK

YOKE - inboard, front

1шт.

18

700709077

PIN

SLOTTED SPRING PIN

2шт.

19

700709061

PROFILE

TUBE - outer, drive

1шт.

20

700709066

SHIELD

TUBE - shield, outer

1шт.

21

700709069

SHIELD

- cone, ribbed, clutch end

1шт.

22

700709065

CLUTCH

- overrunning

1шт.

23

700709064

YOKE

- inboard, clutch end

1шт.

24

87547C1

KIT

FLANGE KIT - clutch, quick disconnect, Includes items in art marked with double asterisk

1шт.

25

700710682

HOUSING

- clutch

1шт.

26

700710683

KEY

2шт.

27

700710684

SPRING

- leaf

2шт.

28

700710685

OIL SEAL

RING - supporting

1шт.

29

700710686

OIL SEAL

RING - retaining

1шт.

30

700713533

BUSHING

HUB

1шт.

31

700713986

LUBE NIPPLE,67.5 Degree, M8

ZERK - M8 x 67 - 1/2 Degrees

3шт.
