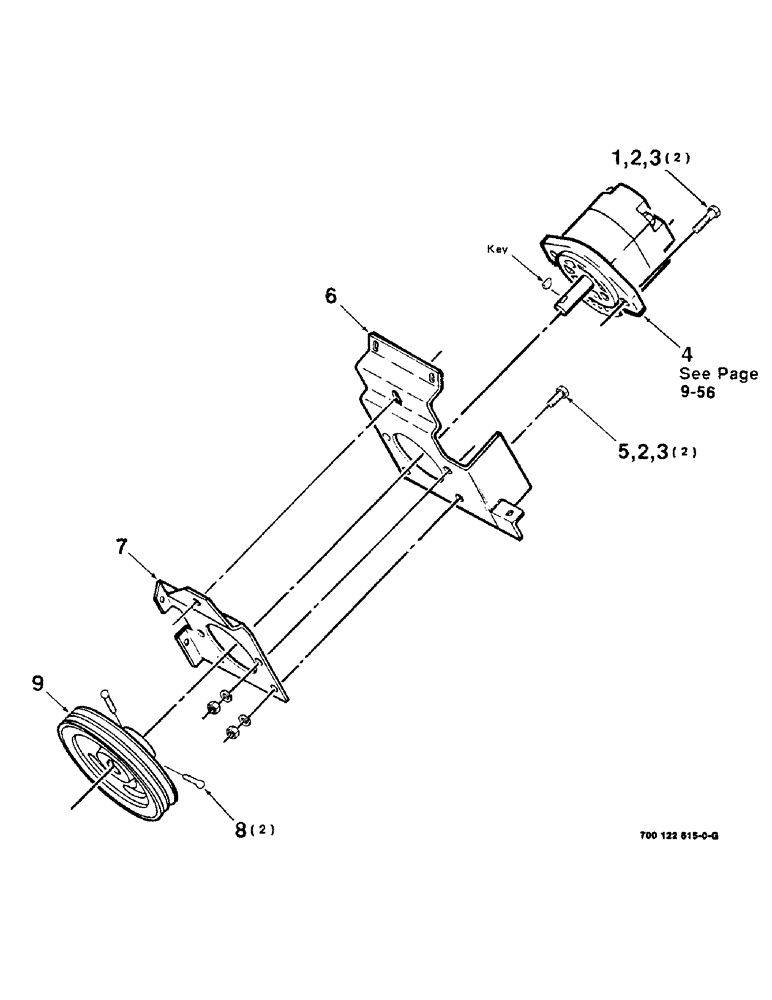

Запчасти Case IH 8545 (9-74) - HYDRAULIC PUMP ASSEMBLY, CONVERSION KIT - CONTINUED Decals & Attachments

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

2

492-11038

LOCK WASHER,3/8"

4шт.

3

425-106

NUT,3/8"-16, Cl 5

4шт.

4

7796378

PUMP

- hydraulic (Includes key)

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

6

700121578

LARGE PLATE

PLATE WA - pump, rear

1шт.

7

700121576

LARGE PLATE

PLATE WA, front

1шт.

8

85-516

SET SCREW,Sq Hd, 5/16"-18 x 1"

5/16-18 X 1 CPHSSS

2шт.

9

1662626

SHEAVE

- drive, pump

1шт.
