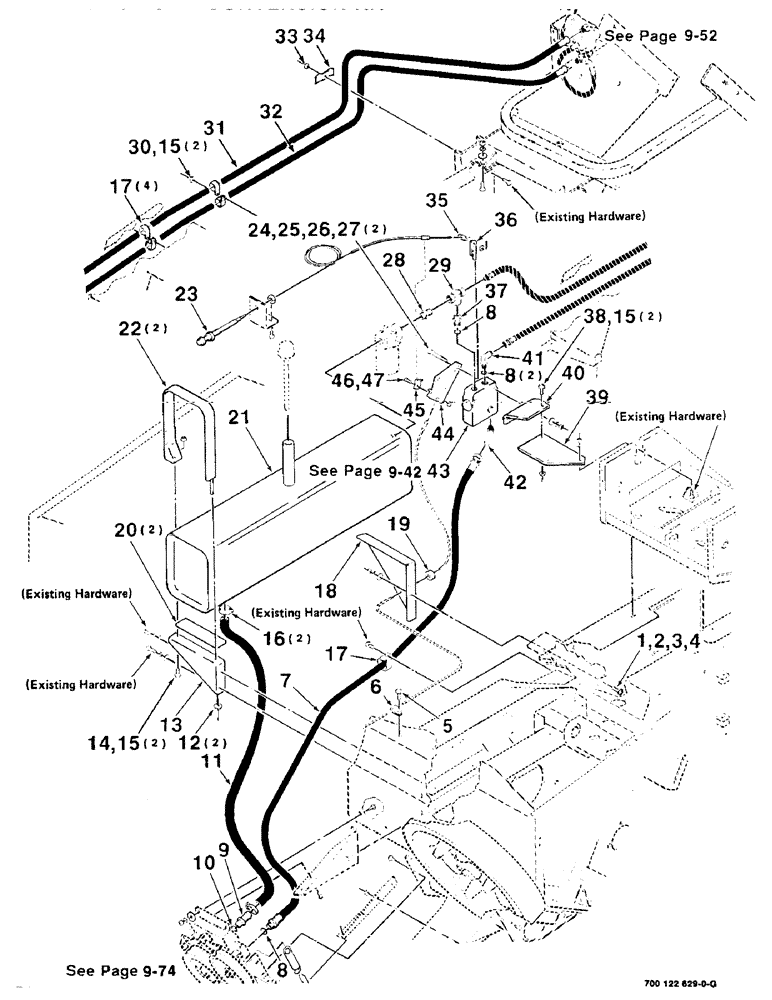

Запчасти Case IH 8545 (9-72) - HYDRAULIC PUMP CONVERSION KIT (RADIAL PISTON) (700122629 HYDRAULIC PUMP CONVERSION KIT COMPLETE) Decals & Attachments

700122629

KIT

HYDRAULIC PUMP CONVERSION KIT COMPLETE

1шт.

1

440-13812

SCREW,Cross Pan Hd, 3/8"-16 x 3/4"

3/8-16 X 3/4 CRPHMS

1шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

1шт.

6

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- line

1шт.

7

700709945

HYDRAULIC HOSE,12.70 mm ID x 1352.00 mm, SAE 100R2

(Includes item 8) 12.70 mm ID x 1352.00 mm, SAE 100R2

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

9

217-390

FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB

INSERT - hose (Includes item 10)

1шт.

10

738484

O-RING

1шт.

11

700709946

HOSE

- hydraulic, suction

1шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

13

700121512

SUPPORT

- tank, front

1шт.

14

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

15

231-5146

FLANGE NUT,3/8"-16

6шт.

16

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, #20, 0.81/1.75 Type F Worm

2шт.

17

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

Hose 15/16", Insul, 3/8" Bolt

5шт.

18

700121513

SUPPORT

- tank, rear

1шт.

19

827717

GROMMET

- rubber

1шт.

20

700121573

BEARING LINER

LINER - reservoir

2шт.

21

700709759

RESERVOIR ASSY.

RESERVOIR - oil

1шт.

22

700709944

STRAP

- reservoir

2шт.

23

700710340

CABLE

- control

1шт.

24

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1/4-20 X 2-1/2 C

2шт.

25

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

26

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

425-104

NUT,1/4"-20, Cl 5

2шт.

28

217-1073

HYD CONNECTOR,3/4" - 14 NPTF

NIPPLE - male

1шт.

29

7846124

TEE

- swivel

1шт.

30

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

31

700709941

HYDRAULIC HOSE,12.70 mm ID x 2600.00 mm, SAE 100R1

12.70 mm ID x 2600.00 mm, SAE 100R1

1шт.

32

700709942

HYDRAULIC HOSE,12.70 mm ID x 2600.00 mm, SAE 100R2

12.70 mm ID x 2600.00 mm, SAE 100R2

1шт.

33

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

1шт.

34

451641

CLAMP

- hose

1шт.

35

7041932

ROD, CONNECTING

CONNECTOR

1шт.

36

1661479

ARM

- control

1шт.

37

700709943

ADAPTER

- male (Includes item 8)

1шт.

38

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

39

700121572

SUPPORT

- plate, valve

1шт.

40

700121571

SUPPORT

ANGLE - support, valve

1шт.

41

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

(Includes item 8) 90º, 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

42

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(Incl. item 8) 45º, 7/8"-14 x 7/8"-14, O-Ring

1шт.

43

7796394

VALVE

- flow control

1шт.

44

1661297

MOUNTING PARTS

MOUNTING - valve

1шт.

45

8797433

CLAMP

1шт.

46

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

47

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.
