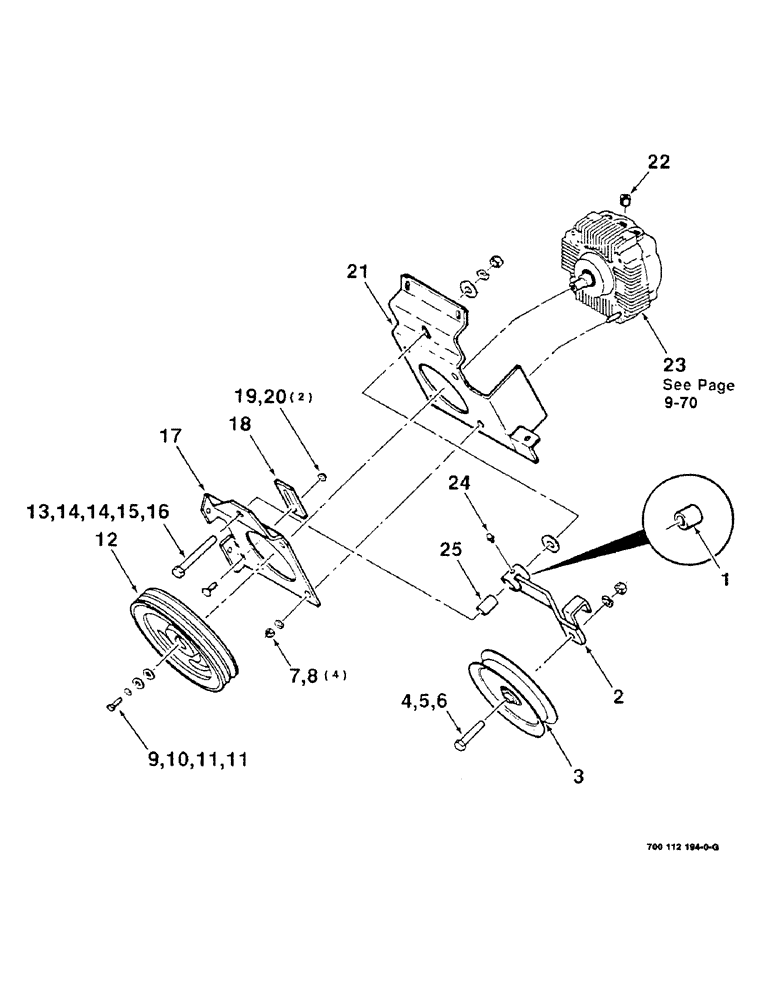

Запчасти Case IH 8545 (9-68) - HYDRAULIC PUMP AND CLUTCH ASSEMBLY (RADIAL PISTON) Decals & Attachments

1

740803

BUSHING

- oilite

1шт.

2

700112190

ARM

- idler (Includes item 1)

1шт.

3

853317

FRONT IDLER

IDLER - flat

1шт.

4

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

C Hex, 5/8"-11 x 2", G5

1шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

425-1010

NUT,5/8"-11, G5

1шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

12

700111514

SHEAVE

- drive, pump

1шт.

13

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

14

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

17

700111513

PLATE

- front

1шт.

18

700115526

STOP

- adjustable

1шт.

19

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

21

700112733

PLATE

- rear

1шт.

22

7030695

PLUG

1шт.

23

700706367

HYDRAULIC PUMP

PUMP - hydraulic (Includes key)

1шт.

700710351

REMAN-INJECTION PUMP

PUMP - hydraulic (Includes key) Rebuilt

1шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

25

700112189

BUSHING

1шт.
