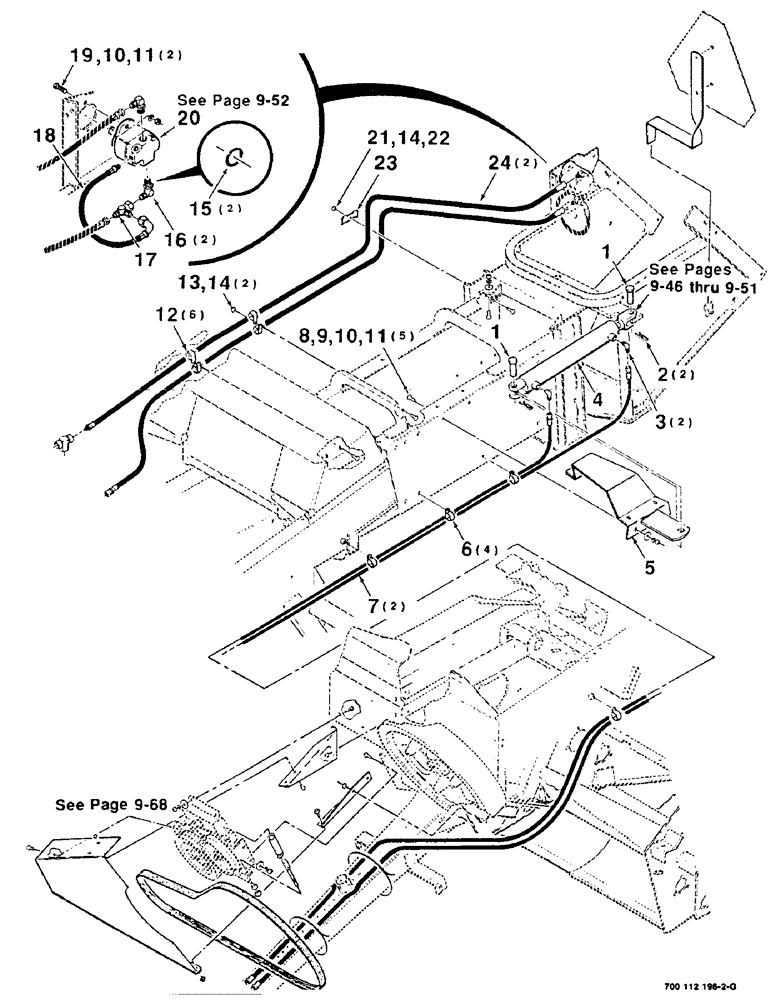

Запчасти Case IH 8545 (9-66) - HYDRAULIC DRIVE AND CONTROL ASSEMBLY - REAR, (RADIAL PISTON PUMP) Decals & Attachments

1

B17284

CLEVIS PIN

PIN - clevis

1шт.

2

S120261

PIN

.148 X 2-6/4 HAIRPIN COTTER

2шт.

3

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

3/8 X 90 DEGREE ELBOW

2шт.

4

700711032

CYLINDER ASSY.

CYLINDER - hydraulic

1шт.

700711032

CYLINDER ASSY.

CYLINDER - hydraulic

1шт.

700711078

PIN

- clevis

1шт.

5

700112726

SUPPORT

BRACKET - mounting, cylinder

1шт.

6

515-23254

CLAMP,1", Insul, 3/8" Bolt

Hose 1", Insul, 3/8" Bolt

4шт.

7

700706425

HOSE

- hydraulic

2шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

5шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

5шт.

10

492-11038

LOCK WASHER,3/8"

7шт.

11

425-106

NUT,3/8"-16, Cl 5

7шт.

12

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

Hose 15/16", Insul, 3/8" Bolt

6шт.

13

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

14

231-5146

FLANGE NUT,3/8"-16

3шт.

15

738484

O-RING

2шт.

16

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

90 DEGREE ELBOW (Includes item 15)

2шт.

17

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

18

700706426

HOSE

- hydraulic

1шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

20

7796386

HYDRAULIC MOTOR

MOTOR - hydraulic

1шт.

21

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

22

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

1шт.

23

451641

CLAMP

- line

1шт.

24

700706361

HOSE

- hydraulic

2шт.

25

700711078

PIN

- clevis

1шт.
