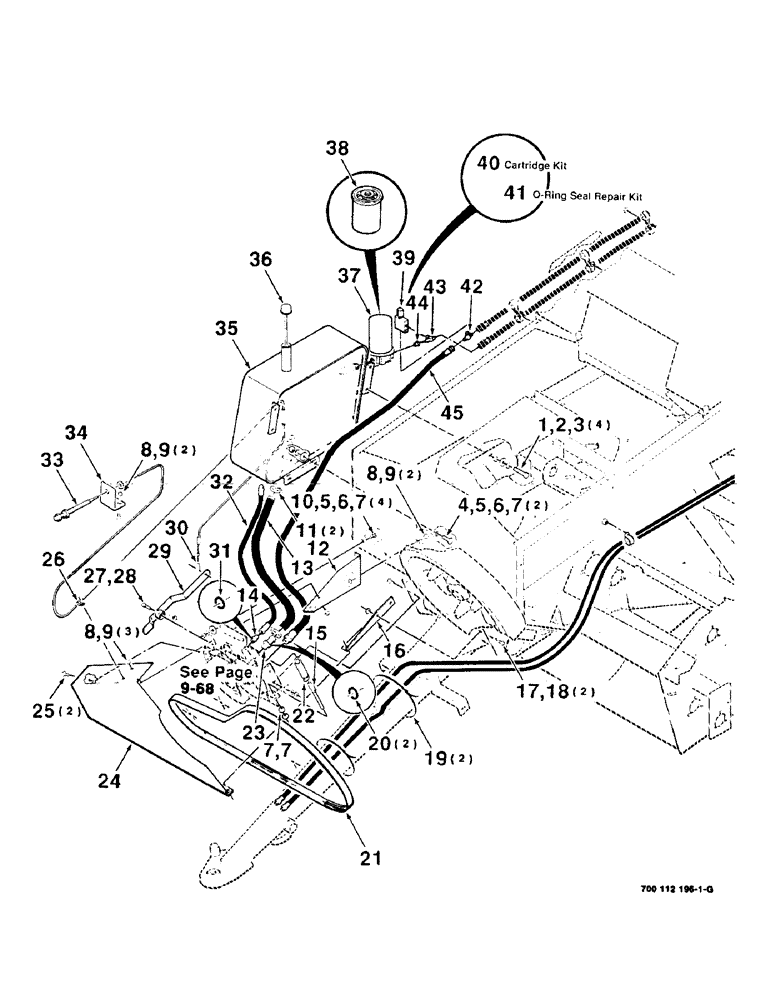

Запчасти Case IH 8545 (9-64) - HYDRAULIC DRIVE AND CONTROL ASSEMBLY - FRONT, (RADIAL PISTON PUMP) Decals & Attachments

1

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

4

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

6

492-11038

LOCK WASHER,3/8"

6шт.

7

425-106

NUT,3/8"-16, Cl 5

8шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

7шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

7шт.

10

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 X 1 HFSS

4шт.

11

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, #20, 0.81/1.75 Type F Worm

2шт.

12

700110550

SUPPORT

- shield, right

1шт.

13

700706423

HOSE

- hydraulic, suction

1шт.

14

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - flared (Includes item 20)

1шт.

15

6501167

BOLT

3/8-16 DRAWBOLT

1шт.

16

700110306

SUPPORT

- shield, left

1шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HFSS

2шт.

18

231-5146

FLANGE NUT,3/8"-16

2шт.

19

7721798

CABLE

TIE - cable

2шт.

20

738484

O-RING

2шт.

21

857573

ROLL

V-BELT

1шт.

22

58180

SPRING

- tension

1шт.

23

217-390

FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB

INSERT - hose (Includes item 20)

1шт.

24

700111565

SHIELD

- drive

1шт.

25

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

26

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- line

1шт.

27

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

28

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

1шт.

29

700112186

ARM

- control

1шт.

30

356174C91

FORK

CLEVIS

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

32

700706363

HOSE

- hydraulic

1шт.

33

700706583

KM SPEEDOMETER

CABLE - control

1шт.

34

1661511

SUPPORT

ANGLE - mounting, cable

1шт.

35

700706350

OIL RESERVOIR

RESERVOIR - oil

1шт.

36

700706418

CAP

DIP STICK - breather cap

1шт.

37

742643

FILTER

ASSEMBLY (Includes item 38)

1шт.

38

201021C1

ELEMENT

- filter

1шт.

39

700706417

VALVE, PRESSURE RELI

VALVE - relief

1шт.

40

700707365

CARTRIDGE

1шт.

41

700706154

SEAL KIT

SEAL REPAIR KIT

1шт.

42

218-554

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Br

- male

1шт.

43

700706427

TEE

- male

1шт.

44

CAS46250

BUSHING

- reducer,Bell & Outer Shield Assy.

1шт.

45

700706362

HOSE

- hydraulic

1шт.
