(9-62) - ELECTRICAL HARNESS SERVICE PARTS

Запчасти Case IH 8545 (9-62) - ELECTRICAL HARNESS SERVICE PARTS Decals & Attachments

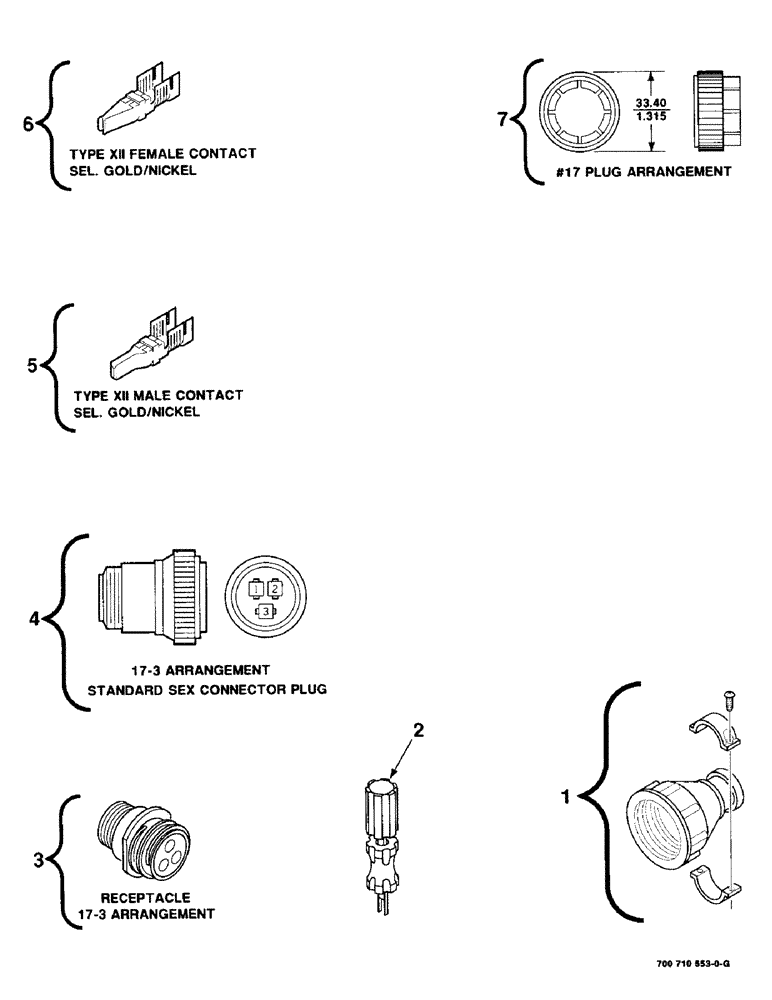

Схема запчастей Case IH 8545 - (9-62) - ELECTRICAL HARNESS SERVICE PARTS Decals & Attachments
6
5
7
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

225153C1

CONTACT HOUSING

CLAMP - cable (Shell size 17)

1шт.

2

700707014

TERMINAL CONNECTOR

TOOL - connector repair

1шт.

3

700710659

CONTACT HOUSING

RECEPTACLE

1шт.

4

225165C1

ELEC CONNECTOR

PLUG - standard sex connector

1шт.

5

700710621

CONTACT HOUSING,Male, Pole

- male

1шт.

6

700710620

TERMINAL

CONTACT - female

1шт.

7

1301191C1

CONNECTION

RING - coupling

1шт.
