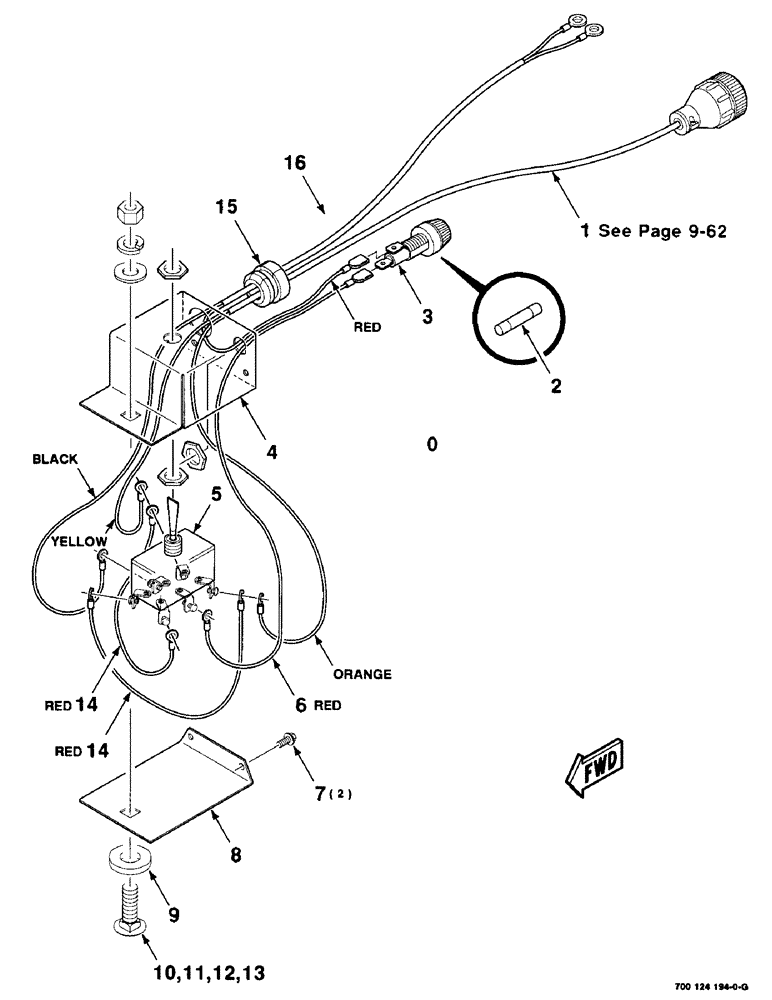

Запчасти Case IH 8545 (9-60) - BALE THROWER ELECTRICAL CONTROL BOX ASSEMBLY, (700124194 CONTROL BOX ASSEMBLY COMPLETE) Decals & Attachments

700124194

BOX

CONTROL BOX ASSEMBLY COMPLETE

1шт.

1

700710553

HARNESS

- wire

1шт.

2

9426333

FUSE,15 Amp, Type 3AG

- 15 amp

1шт.

3

376852R91

HOUSING

HOLDER - fuse

1шт.

4

700124195

TERMINAL BOX

BOX WA - control

1шт.

5

700711185

SWITCH

- electrical

1шт.

6

7723562

ELECTRICAL WIRE

WIRE - electrical, 12 ga.

1шт.

7

703082

SELF-TAP SCREW

#8-32 X 3/8 HWHTCTS

2шт.

8

700124196

BOTTOM

- box

1шт.

9

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

722355

CABLE

WIRE - electrical

2шт.

15

700711381

GROMMET

BUSHING - strain relief

1шт.

16

700710551

HARNESS

- wire

1шт.
