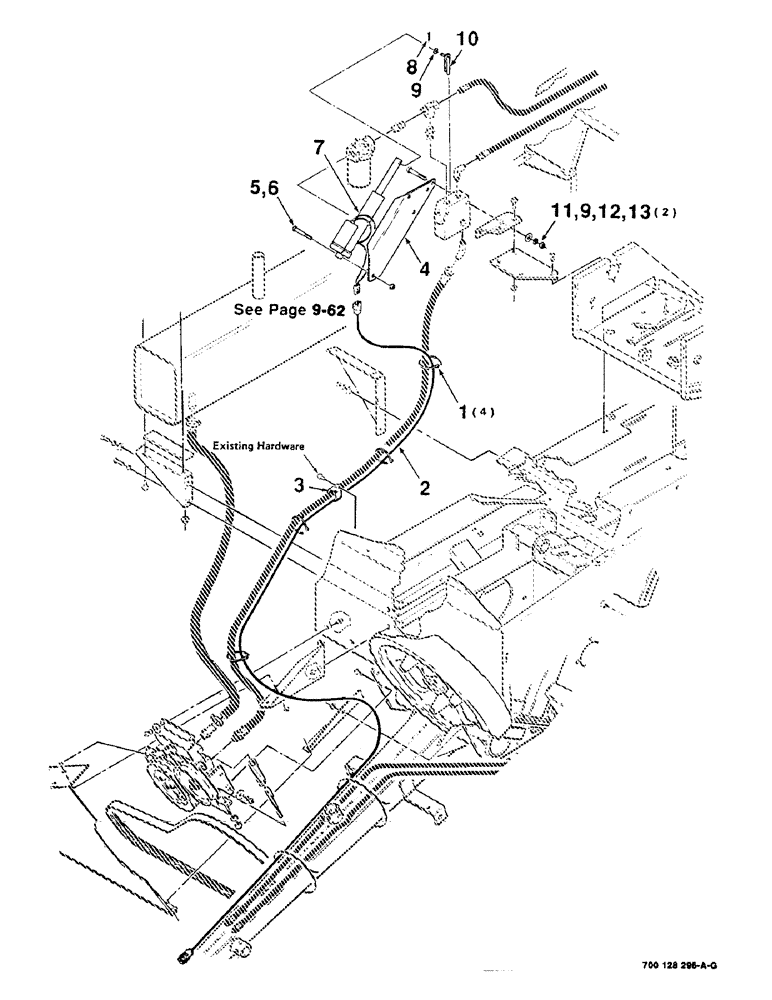

Запчасти Case IH 8545 (9-58) - BALE THROWER ELECTRICAL SPEED CONTROL ASSEMBLY Decals & Attachments

1

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

2

700711380

HARNESS

- wire

1шт.

3

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

Hose 15/16", Insul, 3/8" Bolt

1шт.

4

700124210

BRACKET

1шт.

5

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

6

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

7

700711219

ACTUATOR

- linear

1шт.

8

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

9

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

3шт.

10

700124207

ARM

ASSEMBLY

1шт.

11

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1/4-20 X 2-1/2 C

2шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

425-104

NUT,1/4"-20, Cl 5

2шт.
