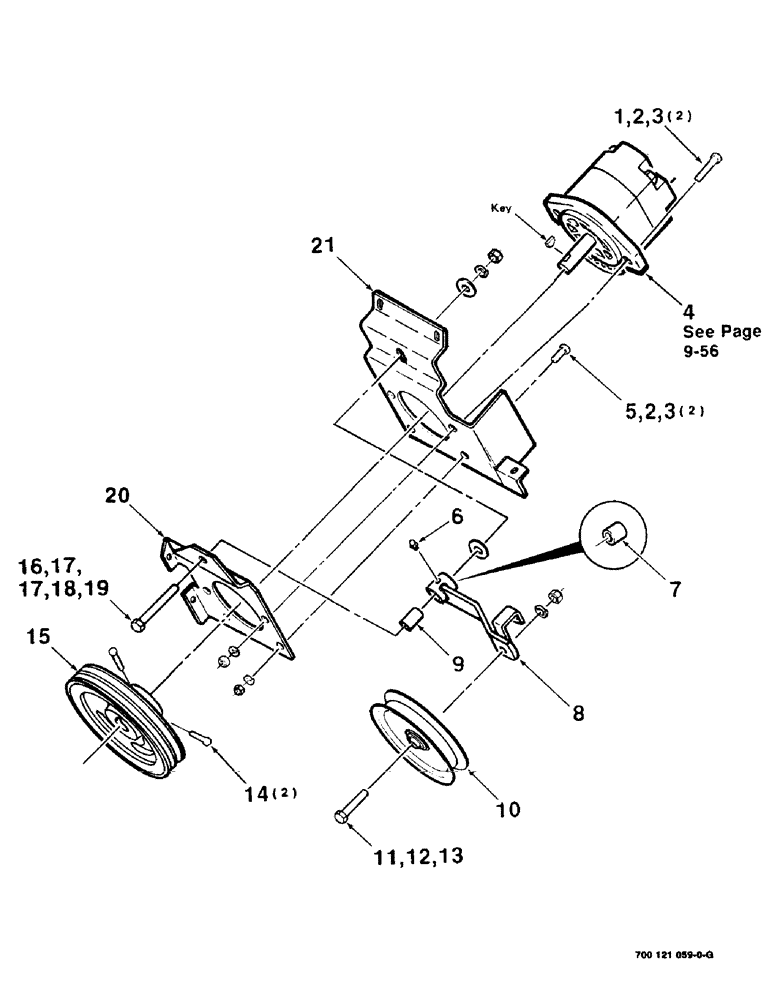

Запчасти Case IH 8545 (9-54) - HYDRAULIC PUMP AND CLUTCH ASSEMBLY (GEAR PUMP) Decals & Attachments

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

2

492-11038

LOCK WASHER,3/8"

4шт.

3

425-106

NUT,3/8"-16, Cl 5

4шт.

4

7796378

PUMP

- hydraulic (Includes key)

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

7

740803

BUSHING

- oilite

1шт.

8

700112190

ARM

- idler (Includes item 7)

1шт.

9

700112189

BUSHING

1шт.

10

853317

FRONT IDLER

IDLER - flat

1шт.

11

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

C Hex, 5/8"-11 x 2", G5

1шт.

12

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

425-1010

NUT,5/8"-11, G5

1шт.

14

85-516

SET SCREW,Sq Hd, 5/16"-18 x 1"

5/16-18 X 1 CPSQHSS

2шт.

15

1662626

SHEAVE

- drive, pump

1шт.

16

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

17

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

20

700121576

LARGE PLATE

PLATE WA - front

1шт.

21

700121578

LARGE PLATE

PLATE WA - pump, rear

1шт.
