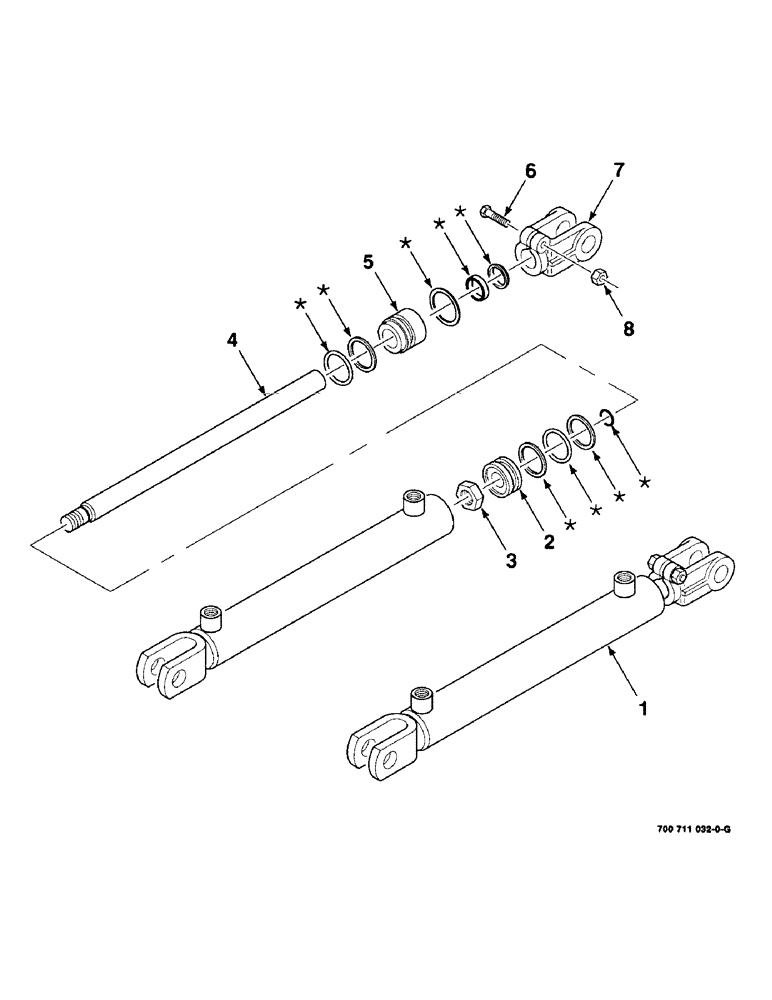

Запчасти Case IH 8545 (9-50) - BALE THROWER HYDRAULIC CYLINDER ASSEMBLY, (700711032 HYDRAULIC CYLINDER ASSEMBLY COMPLETE) Decals & Attachments

1

700711032

CYLINDER ASSY.

CYLINDER - hydraulic, complete

1шт.

2

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

3

700707419

PISTON

1шт.

4

700711111

ROD

1шт.

5

700711112

GUIDE

1шт.

6

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

7

700711113

CLEVIS

- rod

1шт.

8

425-106

NUT,3/8"-16, Cl 5

1шт.

9

700711114

SEAL KIT

SEAL KIT Includes items in art marked with asterisk

1шт.
