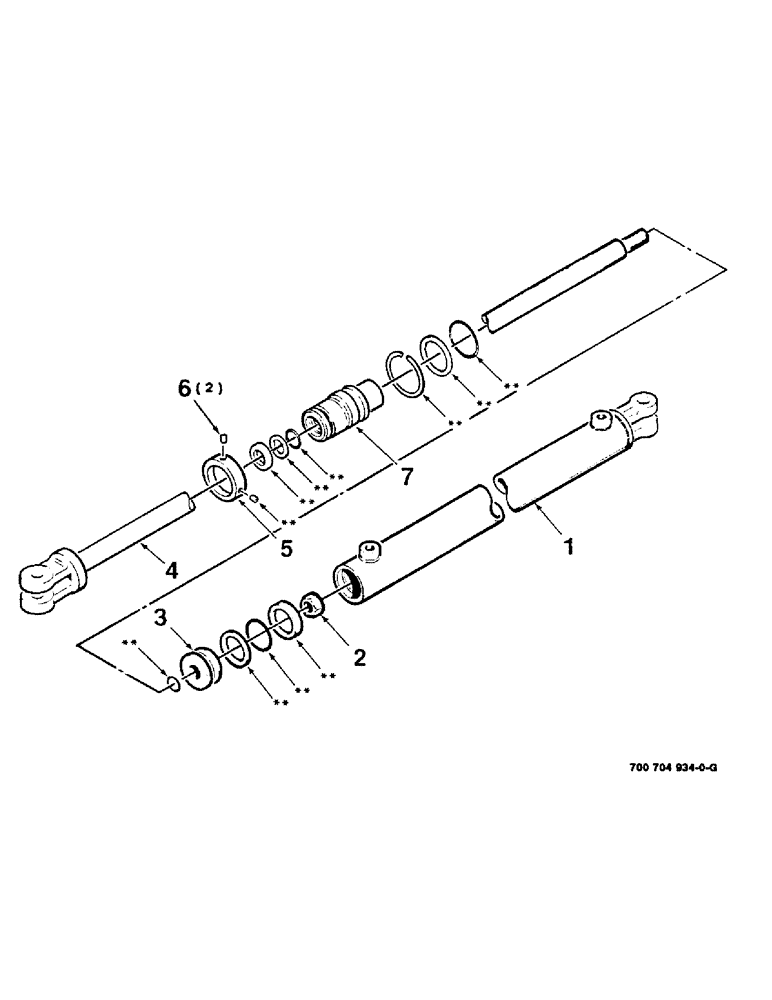

Запчасти Case IH 8545 (9-48) - BALE THROWER HYDRAULIC CYLINDER ASSEMBLY Decals & Attachments

700711032

CYLINDER ASSY.

HYDRAULIC CYLINDER COMPLETE

1шт.

1

700704936

SLEEVE CYLINDER

BARREL

1шт.

2

700704938

LOCK NUT

LOCKNUT

1шт.

3

700704942

PISTON

1шт.

4

700704937

ROD

- piston

1шт.

5

700704939

RETAINER

1шт.

6

83-2254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4-20 X 1/4 CPHSSS

2шт.

7

700704935

BUSHING

BEARING

1шт.

8

700704941

SEAL KIT

AND O-RING REPAIR KIT Includes items in art marked with asterisk

1шт.
