(9-46) - BALE THROWER HYDRAULIC DRIVE CYLINDER ASSY (796102 HYDRAULIC DRIVE CYLINDER ASSEMBLY COMPLETE)

Запчасти Case IH 8545 (9-46) - BALE THROWER HYDRAULIC DRIVE CYLINDER ASSY (796102 HYDRAULIC DRIVE CYLINDER ASSEMBLY COMPLETE) Decals & Attachments

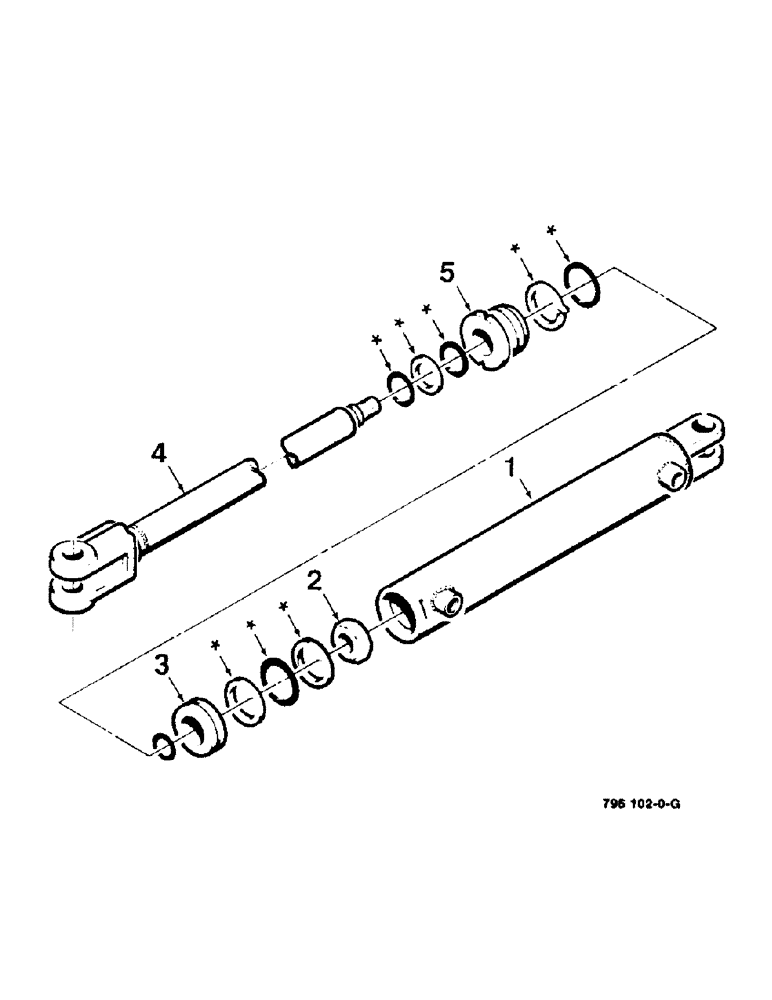

Схема запчастей Case IH 8545 - (9-46) - BALE THROWER HYDRAULIC DRIVE CYLINDER ASSY (796102 HYDRAULIC DRIVE CYLINDER ASSEMBLY COMPLETE) Decals & Attachments
1
4
5
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

796102

CYLINDER

HYDRAULIC CYLINDER COMPLETE

1шт.

1

7733033

CYLINDER

BARREL

1шт.

2

230-46112

LOCK NUT,3/4"-16, GA

LOCKNUT

1шт.

3

H347757

PISTON

1шт.

4

7733041

ROD

- piston

1шт.

5

7733025

GLAND

RETAINER (Gland)

6шт.

7733066

SEAL KIT

AND O-RING REPAIR KIT Includes items in art marked with asterisk

1шт.

Выбрано товаров: 7
