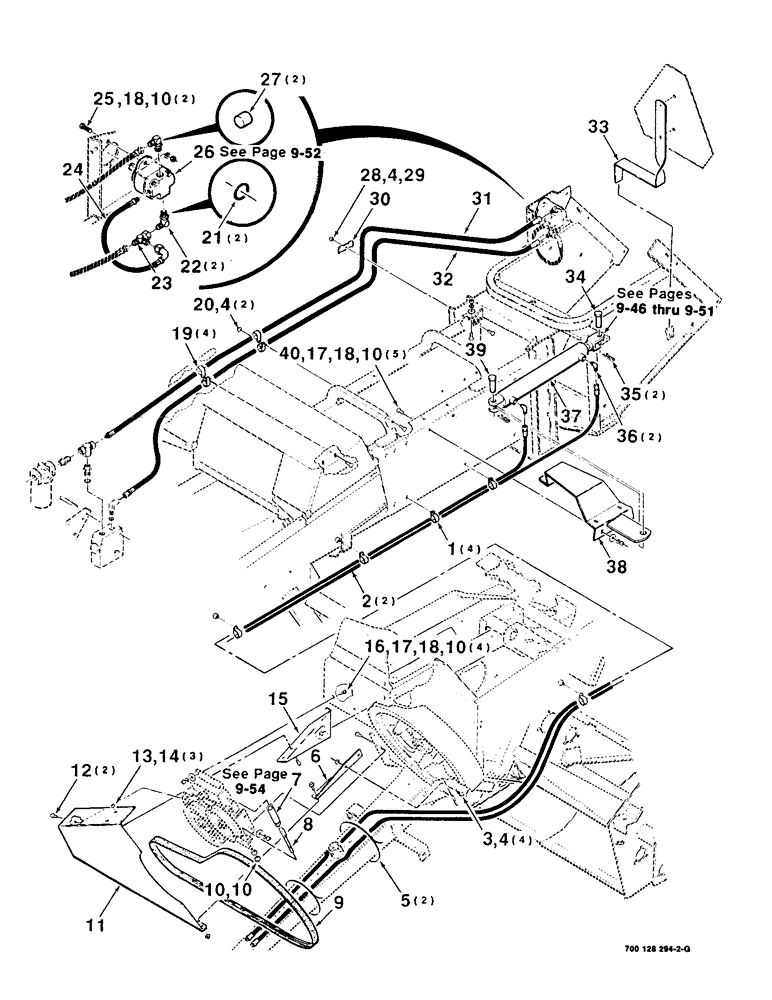

Запчасти Case IH 8545 (9-44) - HYDRAULIC DRIVE AND CONTROL ASSEMBLY - REAR, (GEAR PUMP) Decals & Attachments

1

515-23254

CLAMP,1", Insul, 3/8" Bolt

Hose 1", Insul, 3/8" Bolt

4шт.

2

700706425

HOSE

- hydraulic

2шт.

3

4097612

3/8-16 X 3/4 HFSS

4шт.

4

231-5146

FLANGE NUT,3/8"-16

7шт.

5

7721798

CABLE

TIE - cable

2шт.

6

700110306

SUPPORT

- shield, left

1шт.

7

58180

SPRING

- tension

1шт.

8

6501167

BOLT

3/8-16 DRAWBOLT

1шт.

9

51200834

BELT

V-BELT

1шт.

10

425-106

NUT,3/8"-16, Cl 5

13шт.

11

700111565

SHIELD

- drive

1шт.

12

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

5шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

5шт.

15

700110550

SUPPORT

- shield, right

1шт.

16

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 X 1 HFSS

4шт.

17

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

9шт.

18

492-11038

LOCK WASHER,3/8"

11шт.

19

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

Hose 15/16", Insul, 3/8" Bolt

4шт.

20

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

21

738484

O-RING

2шт.

22

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

90 DEGREE ELBOW (Includes item 21)

2шт.

23

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

24

700706426

HOSE

- hydraulic

1шт.

25

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

26

7796386

HYDRAULIC MOTOR

MOTOR - hydraulic

1шт.

27

218-755

CAP,37 Degree, 3/4"-16

(Shipping dust cap) 37º, 3/4"-16

2шт.

28

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

29

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

1шт.

30

451641

CLAMP

- line

1шт.

31

700709942

HYDRAULIC HOSE,12.70 mm ID x 2600.00 mm, SAE 100R2

12.70 mm ID x 2600.00 mm, SAE 100R2

1шт.

32

700709941

HYDRAULIC HOSE,12.70 mm ID x 2600.00 mm, SAE 100R1

12.70 mm ID x 2600.00 mm, SAE 100R1

1шт.

33

1661172

SUPPORT

SPADE - SMV

1шт.

34

B17284

CLEVIS PIN

PIN - clevis, special

1шт.

35

S120261

PIN

.148 X 2-3/4 HAIRPIN COTTER

2шт.

36

218-1054

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

3/8 X 90 DEGREE ELBOW

2шт.

37

700711032

CYLINDER ASSY.

CYLINDER - hydraulic

1шт.

700711032

CYLINDER ASSY.

CYLINDER - hydraulic

1шт.

700711032

CYLINDER ASSY.

CYLINDER - hydraulic

1шт.

38

700112726

SUPPORT

BRACKET - mounting, cylinder

1шт.

39

700711078

PIN

1 X 3-7/32 CLEVIS PIN, special

1шт.

40

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

5шт.
