(9-42) - HYDRAULIC FLOW CONTROL VALVE ASSEMBLY (7796394 FLOW CONTROL VALVE ASSEMBLY COMPLETE)

Запчасти Case IH 8545 (9-42) - HYDRAULIC FLOW CONTROL VALVE ASSEMBLY (7796394 FLOW CONTROL VALVE ASSEMBLY COMPLETE) Decals & Attachments

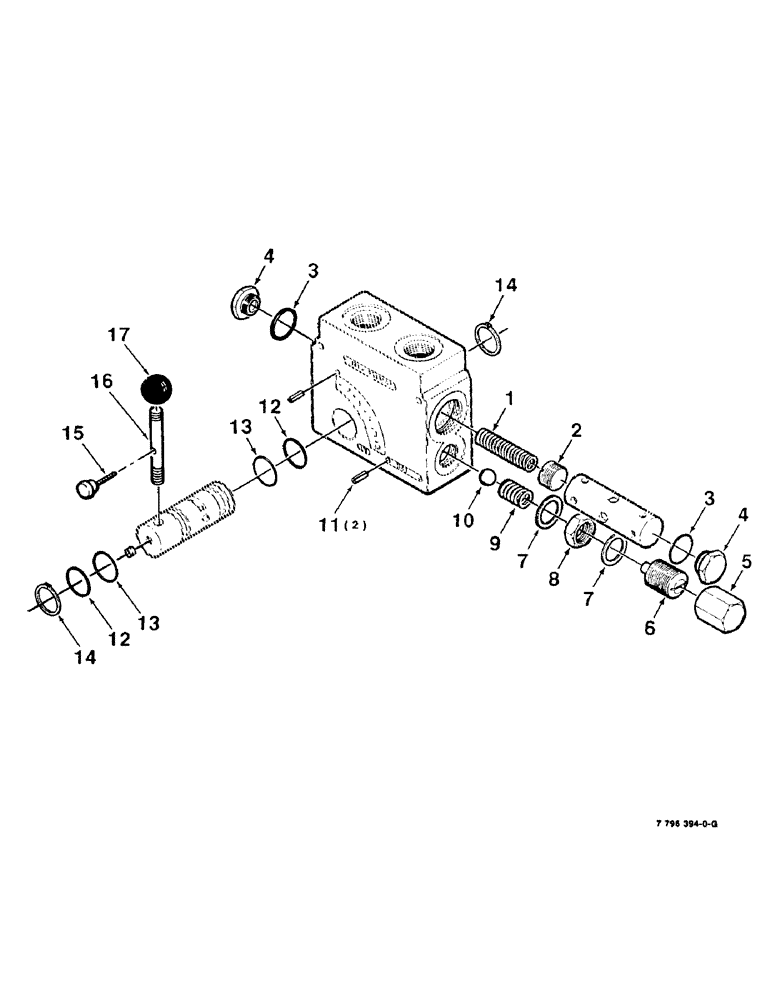

Схема запчастей Case IH 8545 - (9-42) - HYDRAULIC FLOW CONTROL VALVE ASSEMBLY (7796394 FLOW CONTROL VALVE ASSEMBLY COMPLETE) Decals & Attachments
14
12
11
7
10
4
16
4
13
1
3
9
12
14
8
13
6
5
3
7
2
17
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

7796394

VALVE

FLOW CONTROL VALVE COMPLETE

1шт.

1

8733313

SPRING

- metering

1шт.

2

8733354

PLUG

- slotted

1шт.

3

738484

O-RING

2шт.

4

8733305

PLUG

- main bore

2шт.

5

8733297

CAP

1шт.

6

8733347

ADJUSTMENT SCREW

- adjusting

1шт.

7

8733289

WASHER

- aluminum

2шт.

8

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/6-16 HEX JAM NUT

1шт.

9

8733321

SPRING

- relief

1шт.

10

211-1016

BALL,12.7mm OD, Gr 24

Steel 1/2" Dia

1шт.

11

38-11216

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

12

8733370

BACK-UP RING

RING - back up

2шт.

13

700708088

O-RING

2шт.

14

103-1193

SNAP RING,#93, Ext

Ring, Snap, #93, Ext

2шт.

15

700704950

THUMB SCREW

10-32 SCREW - thumb

1шт.

16

700704948

HANDLE

1шт.

17

700704949

KNOB

1шт.
