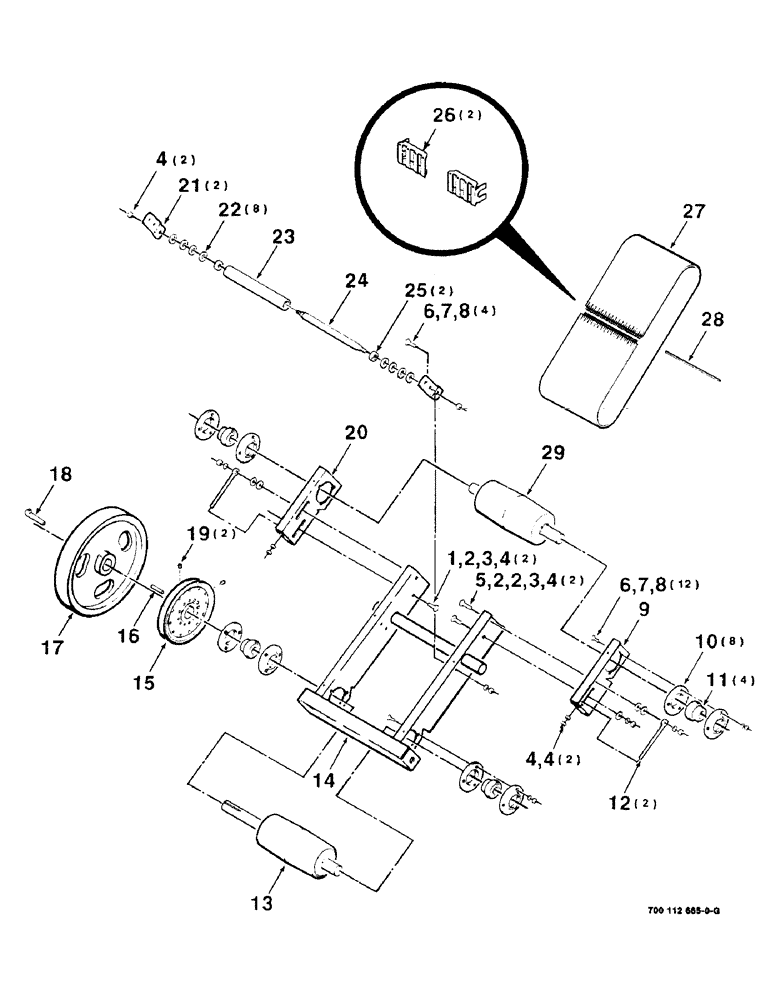

Запчасти Case IH 8545 (9-34) - BALE THROWER CHUTE ASSEMBLY - UPPER Decals & Attachments

1

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

2шт.

2

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

6шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.

5

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 RHSNB

2шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

16шт.

7

492-11038

LOCK WASHER,3/8"

16шт.

8

425-106

NUT,3/8"-16, Cl 5

16шт.

9

700112634

SUPPORT

- bearing, left

1шт.

10

T27207

FLANGED BEARING

FLANGE - bearing

8шт.

11

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING - spherical

4шт.

12

113985

1/2-13 DRAWBOLT

2шт.

13

700121569

ROLLER

- belt, lower

1шт.

14

700112645

FRAME

WA - thrower, upper

1шт.

15

700706359

PULLEY

SHEAVE - drive

1шт.

16

Q53

KEY,1/4" Sq x 1", Par

1шт.

17

700111614

FLYWHEEL

1шт.

18

61978

KEY

1/4 X 1/4 X 2-1/2 GIB KEY

1шт.

19

485-1388

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

3/8-16 X 1/2 CPSQHSS

2шт.

20

700112661

SUPPORT

- bearing, right

1шт.

21

700110303

SUPPORT

- mounting, tube

2шт.

22

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

1/2 X 14 GA. NRMB

8шт.

23

700121907

PLUG,44.45 mm OD, 330.2 mm Length

ROLLER WA - tube

1шт.

24

6556898

SHAFT

- roller

1шт.

25

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

- radial

2шт.

26

700707322

LATCH ASSY.

FASTENER - smartloc

2шт.

27

828194

BELT,12.0" W

Conveyor 12.0" W

1шт.

28

700711329

PIN

- lacing

1шт.

29

700121568

ROLLER

WA - driven, upper

1шт.
