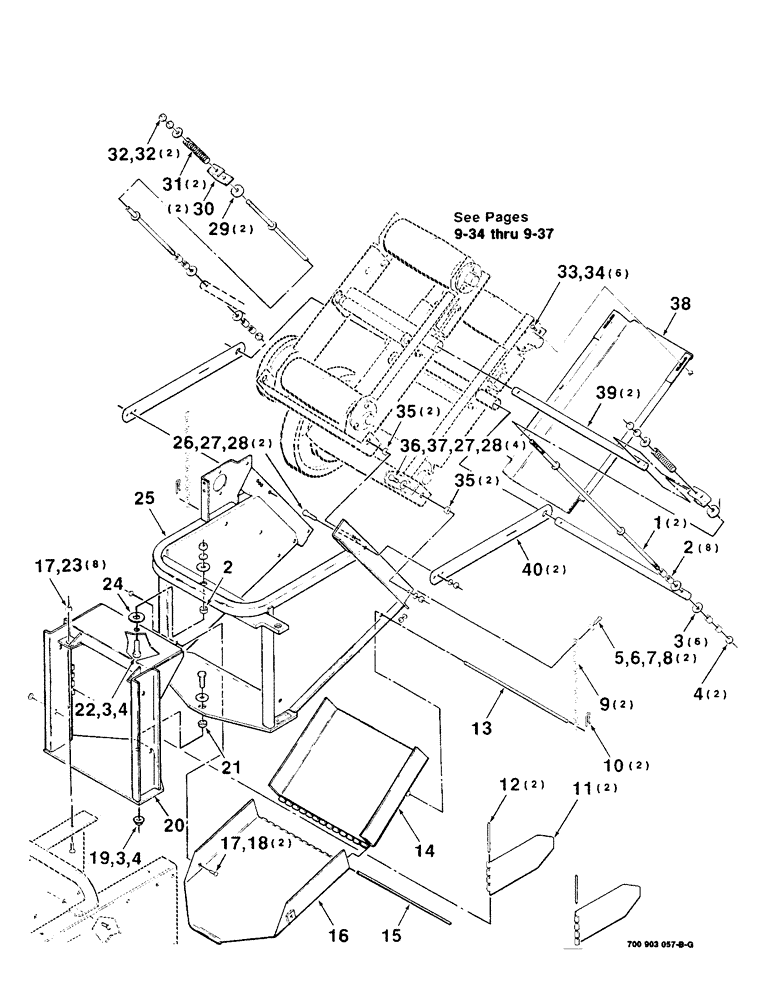

Запчасти Case IH 8545 (9-32) - BALE THROWER KIT - MOUNTING ASSEMBLY, (HK40634 BALE THROWER KIT COMPLETE - WITH SPEED CONTROL) Decals & Attachments
№
Артикул
Название
Примечание
Количество
HK40634
BALE THROWER KIT COMPLETE
1шт.
1
700112662
ROD
WA
2шт.
2
50061K
SPACER,1" Tube x 3/4"
9шт.
3
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN
10шт.
5
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
6
496-11041
WASHER,13/32" x 13/16" x .065", HDN
3/8 HARDENED PLAIN WASHER
2шт.
7
492-11038
LOCK WASHER,3/8"
2шт.
8
425-106
NUT,3/8"-16, Cl 5
2шт.
9
1662543
CHAIN (AG)
CHAIN - welded (18 links)
2шт.
10
S120261
PIN
.148 X 2-3/4 HAIR PIN COTTER
2шт.
11
1662519
SHIELD
- bale chute
2шт.
12
1662535
PIN
- hinge
2шт.
13
1662527
ROD
PIN - chute
1шт.
14
700112688
CHUTE (DOWNWARD)
CHUTE - upper
1шт.
15
700106235
PIN
- hinge
1шт.
16
700115574
CHUTE ASSY.
CHUTE - lower
1шт.
17
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
3/8-16 X 1 RHSNB
10шт.
18
231-4116
NUT,3/8"-16, GB
3/8-16 HTLN GR/B
2шт.
19
413-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5
5/8-11 X 1-3/4 C
1шт.
20
700112651
FRAME
- mounting
1шт.
21
700106060
SPACER
BUSHING - lower
1шт.
22
701771
SUPPORT
5/8-11 X 2-1/4 C
1шт.
23
231-5146
FLANGE NUT,3/8"-16
8шт.
24
495-21106
WASHER,1"
1 HARDENED PLAIN WASHER
1шт.
25
700112673
FRAME
- chute
1шт.
26
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
2шт.
27
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
6шт.
28
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
6шт.
29
7827116
ROLLER
PAD - rubber
2шт.
30
700111507
CLEVIS
- clip
2шт.
31
7758253
SPRING
- compression
2шт.
32
425-1010
NUT,5/8"-11, G5
4шт.
33
433-512
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
6шт.
34
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT, Flg, USR, 5/16"-18
6шт.
35
378604
SPACER
BUSHING
4шт.
36
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
4шт.
37
495-21056
WASHER,1/2"
1/2 WIDE PLAIN WASHER
4шт.
38
700115573
SHIELD
- lower
1шт.
39
700112051
TUBE
PIPE - cross
2шт.
40
700112341
STRAP
- link
2шт.
Выбрано товаров: 41
