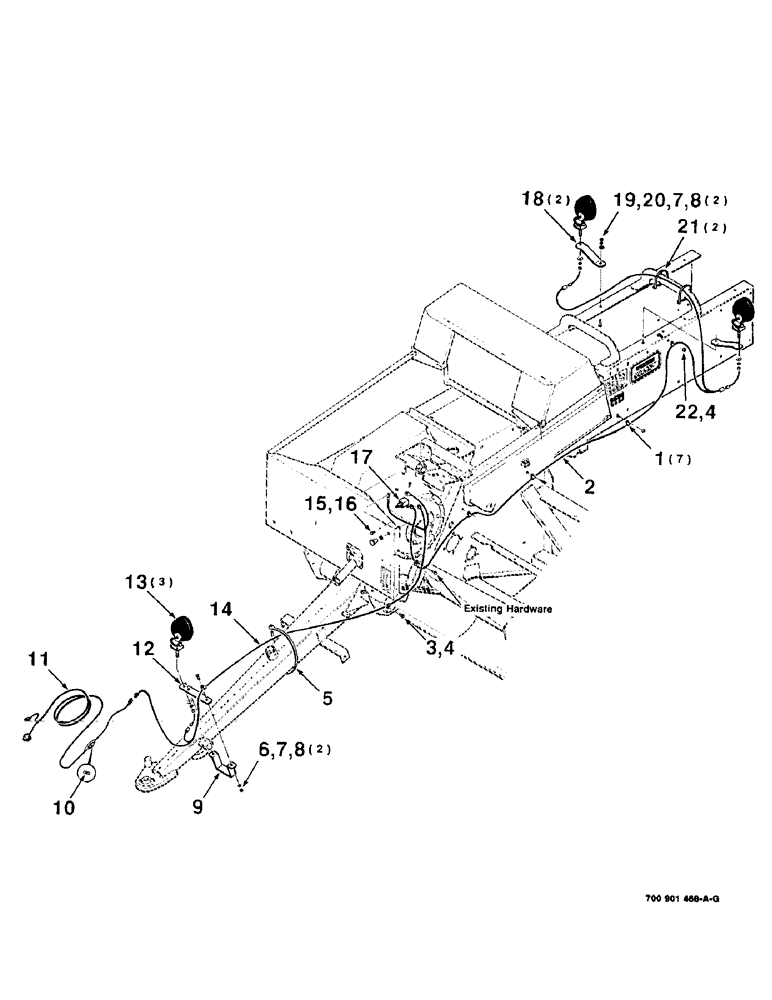

Запчасти Case IH 8545 (9-28) - FIELD LIGHT KIT, (HK40445 FIELD LIGHT KIT COMPLETE) Decals & Attachments

HK40445

LIGHT

FIELD LIGHT KIT COMPLETE

1шт.

1

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- line

7шт.

2

700704526

WIRE HARNESS

HARNESS - wiring, rear

1шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HFSS

1шт.

4

231-5146

FLANGE NUT,3/8"-16

2шт.

5

386170C1

CABLE TIE,.30" x 27 1/2"

TIE - cable

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

425-106

NUT,3/8"-16, Cl 5

4шт.

9

700116986

CLAMP

- mounting

1шт.

10

9426333

FUSE,15 Amp, Type 3AG

- 15 amp

1шт.

11

2700179

ELECTRICAL WIRE

HARNESS - wiring

1шт.

12

700116985

STRAP

- mounting

1шт.

13

CAS41624

LAMP

3шт.

14

700704525

WIRE HARNESS

HARNESS -, Serial Range: wiring,-switch

1шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

1шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

1шт.

17

80041137

FRAME

1шт.

18

700108708

STRAP

- bracket

2шт.

19

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

20

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

22

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

1шт.
