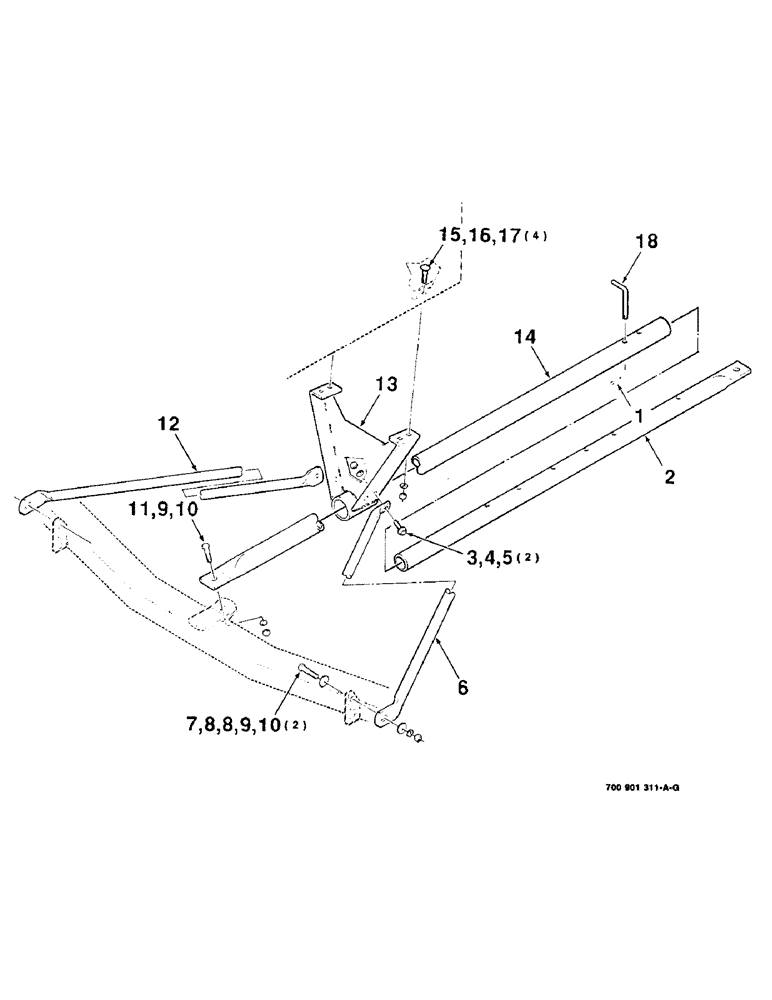

Запчасти Case IH 8545 (9-26) - WAGON HITCH KIT, (HK50392 WAGON HITCH KIT COMPLETE) Decals & Attachments

HK50392

HITCH ASSY

WAGON HITCH KIT COMPLETE

1шт.

1

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

2

700112625

TUBE,60.32 mm OD, 1580 mm Length

- hitch

1шт.

3

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

700122609

STRUT

- left

1шт.

7

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

C Hex, 5/8"-11 x 2", G5

2шт.

8

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

10

425-1010

NUT,5/8"-11, G5

3шт.

11

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8-11 X 1-3/4 C

1шт.

12

700122610

STRUT

- right

1шт.

13

700112619

SUPPORT

MOUNTING - support, rear

1шт.

14

700112618

PIPE

TUBE - outer, front

1шт.

15

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

4шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

6557565

PIN

1шт.
