(9-14) - BALE TENSIONER HYDRAULIC CYLINDER ASSEMBLY (700703899 HYDRAULIC CYLINDER ASSEMBLY COMPLETE)

Запчасти Case IH 8545 (9-14) - BALE TENSIONER HYDRAULIC CYLINDER ASSEMBLY (700703899 HYDRAULIC CYLINDER ASSEMBLY COMPLETE) Decals & Attachments

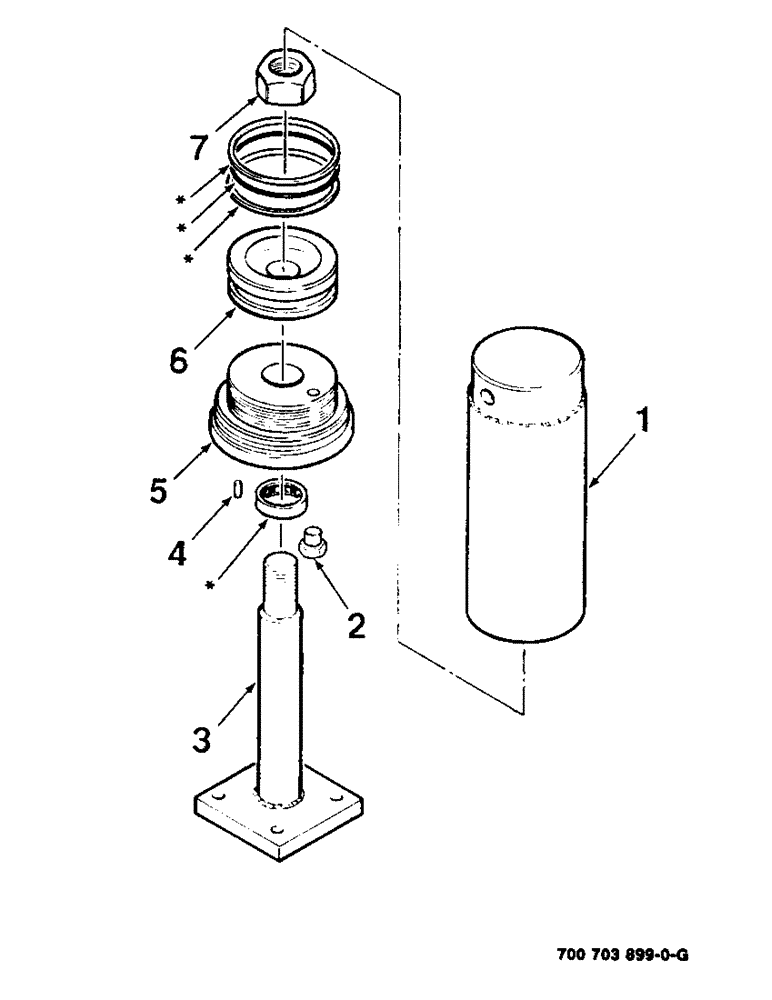

Схема запчастей Case IH 8545 - (9-14) - BALE TENSIONER HYDRAULIC CYLINDER ASSEMBLY (700703899 HYDRAULIC CYLINDER ASSEMBLY COMPLETE) Decals & Attachments
6
1
4
3
5
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700703899

CYLINDER

HYDRAULIC CYLINDER COMPLETE

1шт.

1

700704848

BARREL

1шт.

2

700704845

BREATHER

1шт.

3

700704847

ROD

1шт.

4

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

1/4-20 X 3/4 CPHSSS

1шт.

5

700704846

HEAD

1шт.

6

812645C1

PISTON

1шт.

7

7036676

NUT

1шт.

8

700704850

SEAL KIT

O-RING AND SEAL REPAIR KIT Includes Items in art Marked with Asterisk

1шт.
