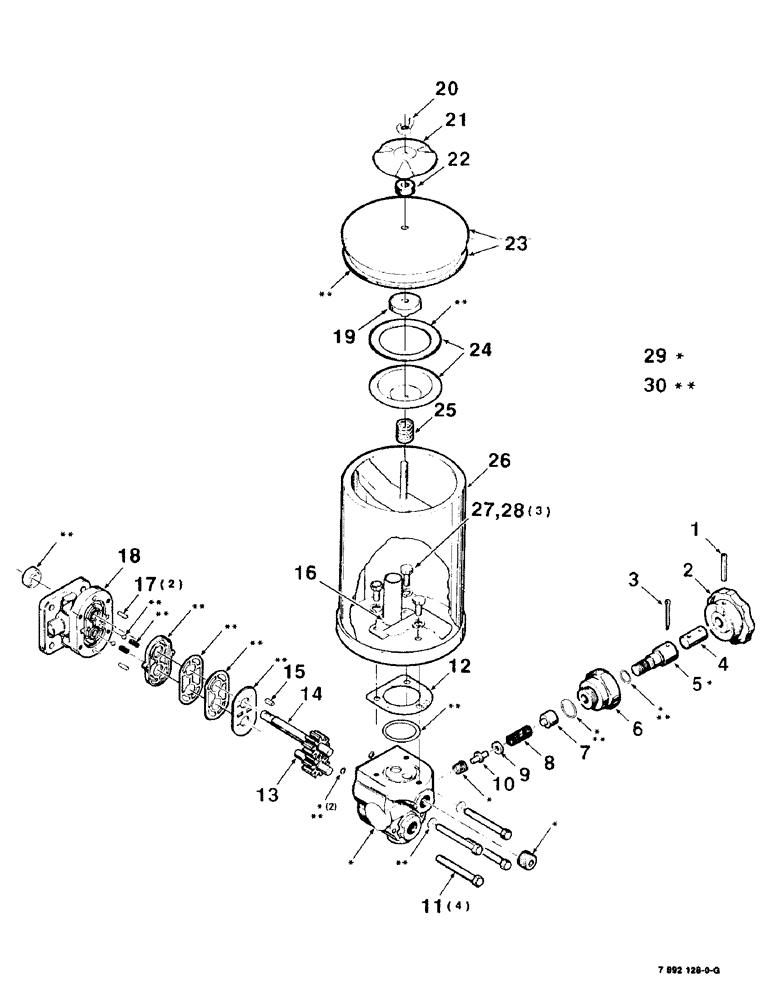

Запчасти Case IH 8545 (9-12) - BALE TENSIONER HYDRAULIC PUMP AND RESERVOIR ASSEMBLY Decals & Attachments

7892128

VALVE

HYDRAULIC PUMP & RESERVIOR COMPLETE

1шт.

1

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1шт.

2

8040552

KNOB

1шт.

3

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

4

8040545

ROD

- connecting

1шт.

5

8040560

ADJUSTMENT SCREW

- adjusting

1шт.

6

8040578

PLUG

ASSEMBLY (Includes O-Ring)

1шт.

7

8040503

GUIDE

- spring

1шт.

8

8040495

SPRING

1шт.

9

F12267

WASHER

SHIM

1шт.

10

H83931

VALVE POPPET

POPPET ASSEMBLY

1шт.

11

166-11

12 PT SCREW,Flg, 1/4" - 20 x 2 1/4", Gr 8

1/4-20 X 2-1/4 FLANGED 12 POINT SCREW

4шт.

12

668399R1

GASKET

- reservoir

1шт.

13

668389R91

GEAR

- idler

1шт.

14

668388R91

GEAR

- drive

1шт.

15

8040487

KEY

1шт.

16

668398R91

FILTER

ASSEMBLY

1шт.

17

37-148

DOWEL,1/4" x 1/2"

PIN

2шт.

18

H646265

LARGE PLATE

PLATE ASSEMBLY - front

1шт.

19

668396R1

CAP

- filter

1шт.

20

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

21

668394R1

CAP

- breather

1шт.

22

668400R1

FILTER

- air

1шт.

23

668393R11

COVER

LID AND GASKET - reservoir

1шт.

24

668395R11

FILTER

FILLER AND GASKET ASSEMBLY

1шт.

25

823148C1

SPRING

- compression

1шт.

26

CAS2700072

RESERVOIR, HYDRAULIC

RESERVIOR - hydraulic

1шт.

27

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

5/16-18 X 5/8 FLANGED 12 POINT SCREW

3шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

29

8040479

LARGE PLATE

BACK PLATE REPAIR KIT Includes Items in art marked with asterisk

1шт.

30

200420C91

SEAL KIT

SEAL REPAIR KIT Includes Items in art marked with double asterisk

1шт.
