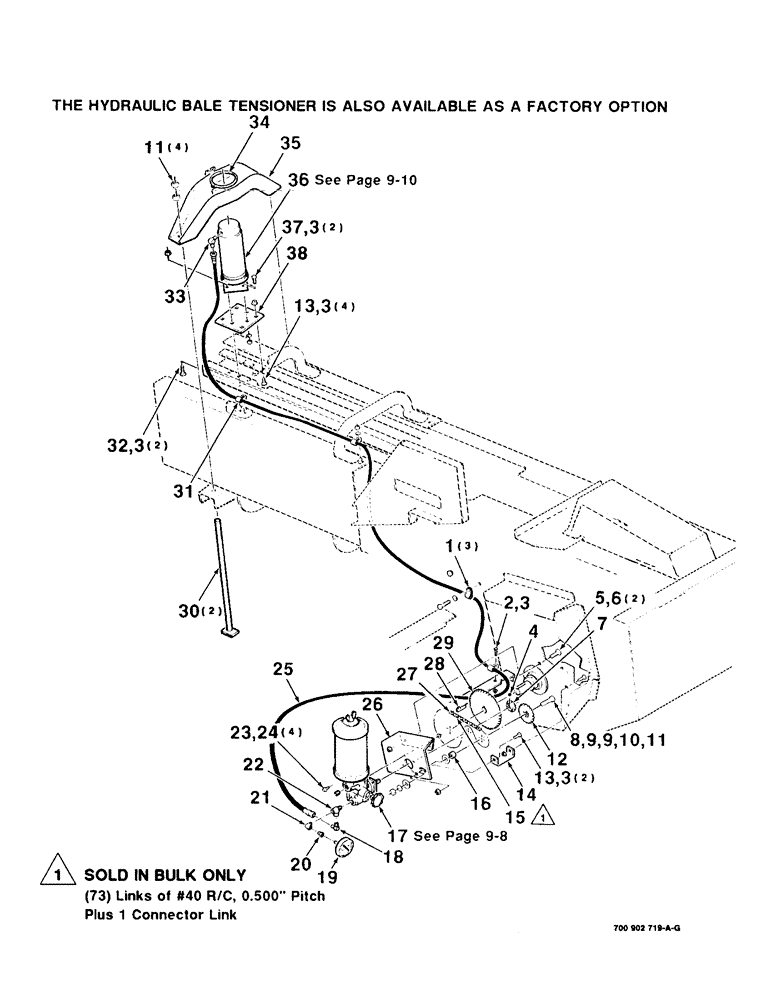

Запчасти Case IH 8545 (9-10) - HYDRAULIC BALE TENSIONER KIT, (HK40554 HYDRAULIC BALE TENSIONER KIT COMPLETE) Decals & Attachments

HK40554

HYDRAULIC BALE TENSIONER KIT COMPLETE

1шт.

1

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

2

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

3

231-5146

FLANGE NUT,3/8"-16

11шт.

4

83-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

1/4-20 X 3/8 CPHSSS

1шт.

5

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

2шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

7

7851082

SPROCKET ASSY.

SPROCKET - 40B10 tooth

1шт.

8

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

9

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

425-1010

NUT,5/8"-11, G5

5шт.

12

820963C91

SPROCKET

- idler, 40B18 tooth

1шт.

13

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

6шт.

14

700112640

SUPPORT

- pump

1шт.

15

1790D

CHAIN (AG)

CHAIN - roller, #40 (10 FOOT BULK)

1шт.

16

320993R1

SPACER,7/8" Tube x 1/2"

1шт.

17

7892128

VALVE

PUMP ASSEMBLY - hydraulic

1шт.

18

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90 DEGREE ELBOW

1шт.

19

700703817

GAUGE

- pressure

1шт.

20

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer

1шт.

21

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

3/8 STREET ELL

1шт.

22

7046113

TEE

SERVICE TEE

1шт.

23

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

4шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

25

700706300

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

26

700112644

MOUNTING PARTS

MOUNTING - pump

1шт.

27

1301D

CHAIN LINK

LINK - connector, #40 R/C

1шт.

28

61424

KEY

1/4 X 1/4 X 1-1/4 GIB KEY

1шт.

29

700112643

SPROCKET ASSY.

SPROCKET WA - 40B45 tooth

1шт.

30

700112641

BOX

WA - tension

2шт.

31

700703825

CLAMP

- hose

1шт.

32

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

33

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90 DEGREE ELBOW

1шт.

34

7852148

RING, SNAP

RING - retainer

1шт.

35

700108433

SUPPORT

WA

1шт.

36

700703899

CYLINDER

- hydraulic, tensioner

1шт.

37

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

38

700119498

LARGE PLATE

PLATE - rail

1шт.
