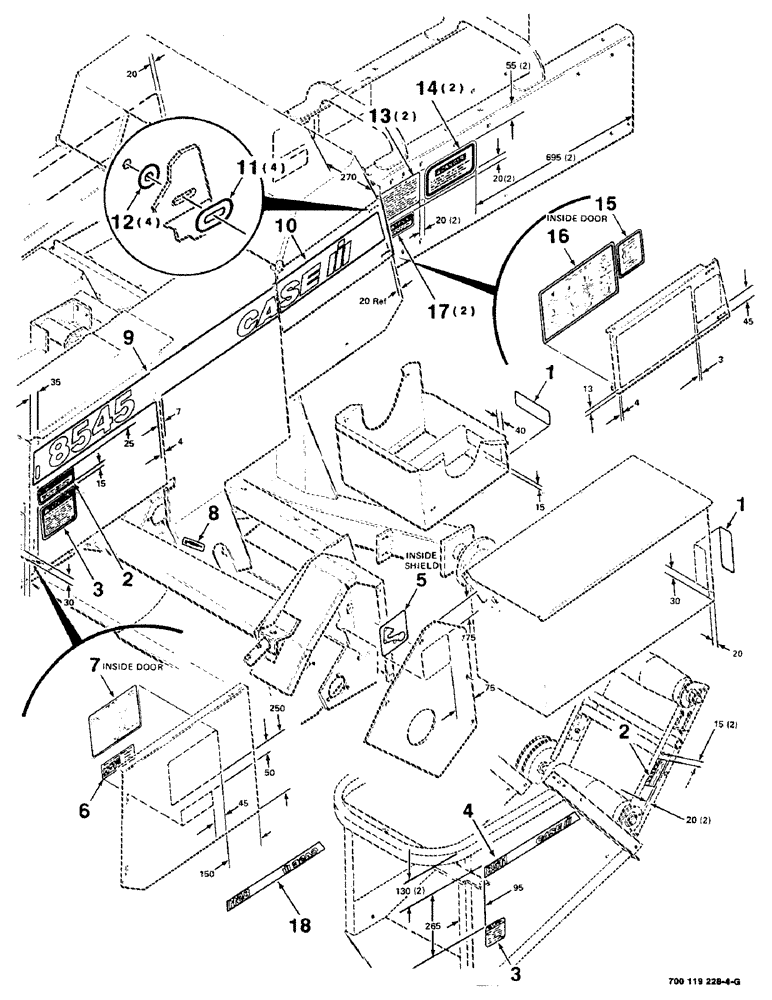

Запчасти Case IH 8545 (9-08) - DECALS AND LOCATION DIAGRAM - LEFT (S.N. CFH0044811 AND LATER) Decals & Attachments

1

878660

REFLECTOR

- red

1шт.

2

7778368

DECAL

- warning, keep hands away

2шт.

3

700714229

DECAL

- warning

2шт.

4

700714230

DECAL

- combo, 8511CASE IH, L

1шт.

5

700714104

DECAL

- drive, left

1шт.

6

700708731

DECAL

- shearbolt

1шт.

7

700706289

DECAL

- operation, stuffer timing

1шт.

8

7889306

DECAL

- grease

1шт.

9

700714332

DECAL

- combo, front, left

1шт.

10

700714334

DECAL

- combo, rear, left

1шт.

11

700709867

DECAL

- slot, camloc

4шт.

12

700709866

WASHER

- washer, camloc

4шт.

13

7889355

DECAL

- operation (Wire Only)

2шт.

700703905

DECAL

- operation (Twine Only)

2шт.

14

700700036

DECAL

- danger, serious injury

2шт.

15

700704658

DECAL

- needle timing

1шт.

16

700703441

DECAL

- operation, twine knot detail

1шт.

17

700706207

DECAL

- warning, do not adjust

2шт.

18

700714231

DECAL

- combo, case IH8511, R

1шт.
