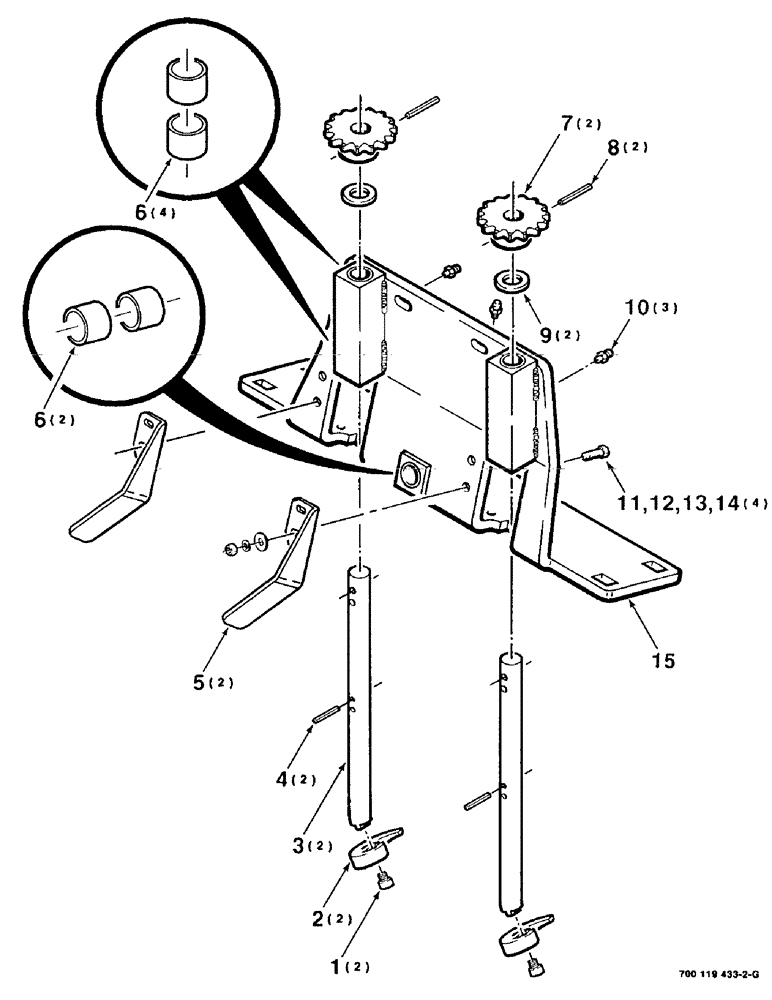

Запчасти Case IH 8545 (6-36) - TWISTER ASSEMBLY (WIRE) (14) - BALE CHAMBER

1

62-58

HEX SOC SCREW,5/16"-24 x 1/2"

5/16-24 X 1/2 HSHCS

2шт.

ref. 1 standards part number is 62-3318

1шт.

2

7813165

TWISTER

- wire tie

2шт.

3

700119802

SHAFT

- twister

2шт.

4

38-11218

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

2шт.

5

700124092

GUIDE

- NEEDLE

2шт.

6

740787

BRONZE BUSHING

BUSHING - bronze

6шт.

7

851931

SPROCKET ASSY.

SPROCKET - 15 tooth

2шт.

8

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

2шт.

9

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

3/4 X 14 GA. NRMB

2шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

11

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

4шт.

12

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

425-104

NUT,1/4"-20, Cl 5

4шт.

15

700119434

SUPPORT

FRAME WA - support, twister (Includes Item 6)

1шт.
