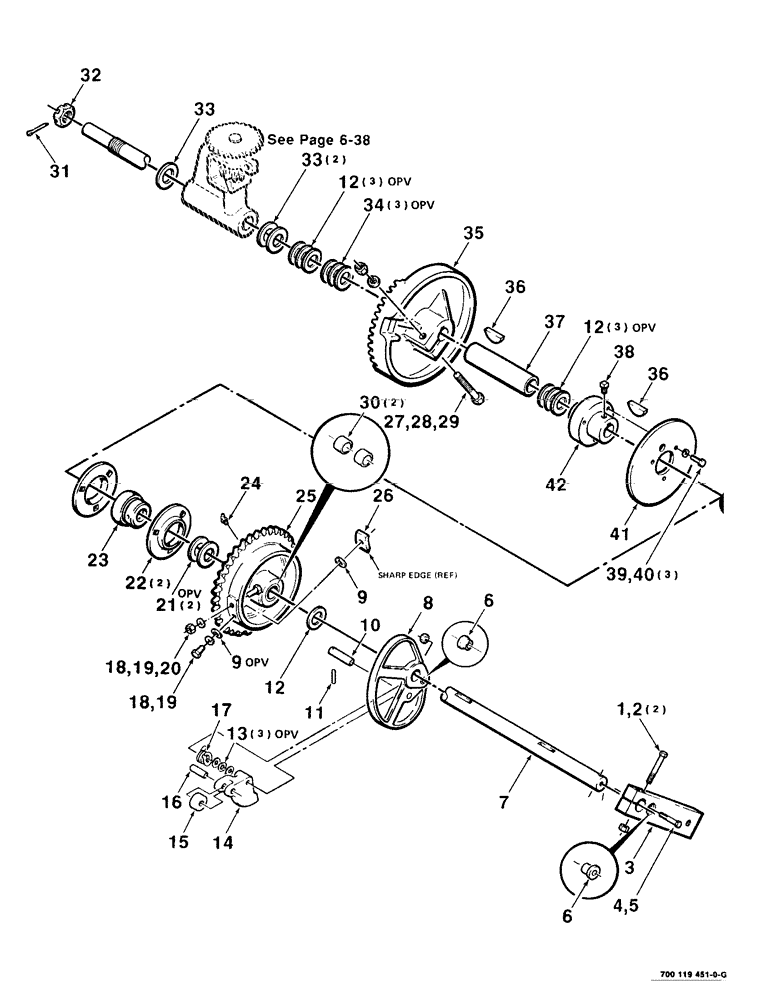

Запчасти Case IH 8545 (6-28) - TWISTER DRIVE AND CAM ASSEMBLY (WIRE) (14) - BALE CHAMBER

1

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

2

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

2шт.

3

700119455

ARM

ASSEMBLY (Included Item 6)

1шт.

4

413532

NOZZLE

5/16-18 X 2 C

1шт.

5

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 HTLN GR/B

1шт.

6

6853592

SLEEVE

- shear

2шт.

7

700119454

SHAFT

- drive, twister

1шт.

8

700119467

CAM

ASM. - clutch (Includes Item 6)

1шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

10

6853642

PIN

- dog

1шт.

11

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1шт.

12

7852171

BUSHING

1-1/8 X 20 GA. MB - special

7шт.

13

95-81100

WASHER,33/64" x 7/8" x .049"

1/2 X 18 GA, NRMB

3шт.

14

6853626

DRIVE DOG

DOG - twister

1шт.

15

6853634

ROLLER

1шт.

16

37-1624

DOWEL,3/8" x 1 1/2"

3/8 X 1-1/2 SLOTTED SPRING PIN

1шт.

17

7758857

SPRING

- torsion

1шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

425-146

JAM NUT,3/8" - 16, Gr 5

3/8-16 HEX JAM NUT

1шт.

21

195-2111

WASHER,1 3/16" x 1 3/4" x .032"

1-1/8 X 22 GA. MB - special

2шт.

22

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

2шт.

23

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- spherical

1шт.

24

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 40 DEGREE ZERK

1шт.

25

6853303

PINION

SPROKET ASSEMBLY (Includes Item 30)

1шт.

26

6853857

LUG

1шт.

27

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

29

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

30

7852023

BUSHING

- bronze

2шт.

31

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

32

7774581

SLOTTED NUT

1-1/8-12 SLOTTED HEX NUT

1шт.

33

52522

BUSHING

1-1/8 X 10 GA. NRMB

3шт.

34

6553317

ADJUSTING PLATE

1-1/8 X .005 SHIM

3шт.

35

7813108

CAM

AND GEAR

1шт.

36

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

2шт.

37

700119452

SPACER

1шт.

38

485-1388

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

3/8-16 X 1/2 CPSQHSS

1шт.

39

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

40

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

41

6553283

DISC

- brake

1шт.

42

700116915

HUB

- cam

1шт.
