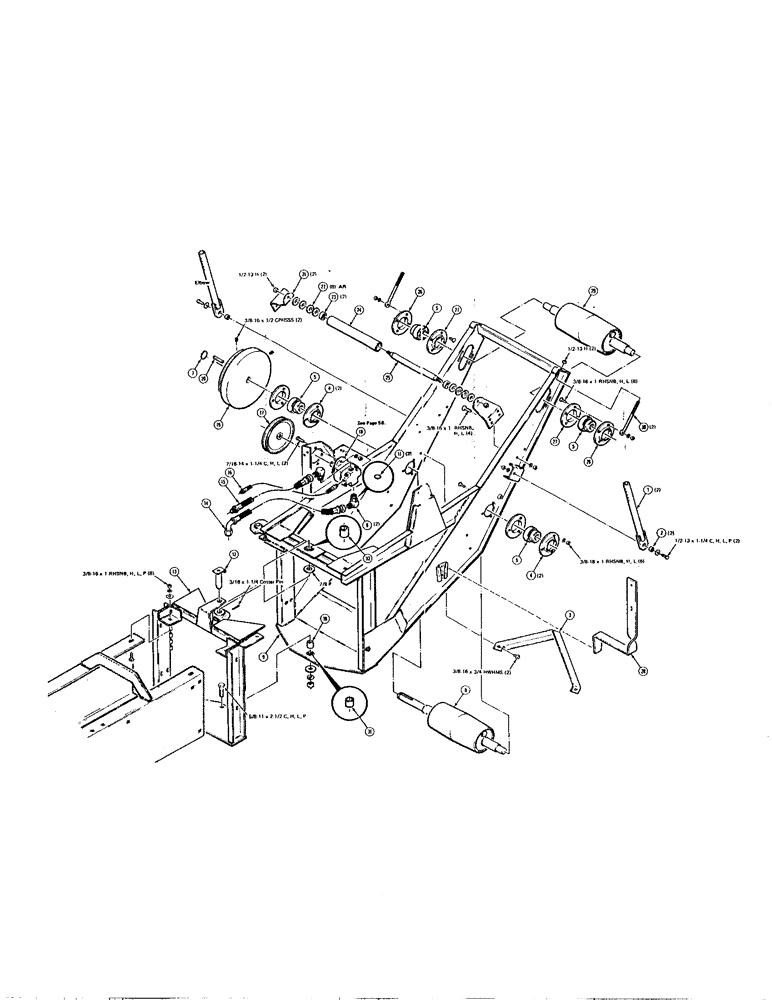

Запчасти Case IH 8540 (52) - BALE THROWER CHUTE, LOWER SECTION (16) - BALE EJECTOR

1

1661891

TUBE

SUPPORT TUBE, lower

2шт.

2

437640

BUSHING,12.95mm ID x 19.05mm OD x 12.7mm L

3/4 O.D. x 1/2" long

2шт.

3

1662568

SCRAPER

1шт.

4

50534

FLANGED BEARING

bearing

4шт.

5

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

4шт.

6

746768

ELBOW

1-1/16-12 JIC x 1-1/16-12 with o-ring, M/M x 90deg. elbow

2шт.

7

852137

RING, SNAP

SNAP RING

1шт.

8

700108189

ROLL

ER, drive

1шт.

9

1662212

FRAME ASSY

FRAME, chute

1шт.

10

6558043

SPACER

1" O.D. x 1-3/16" long

1шт.

11

738484

O-RING

(.116 x .924 I.D. x 1.010 O.D.)

2шт.

12

6557037

PIN

1шт.

13

1662121

MOUNTING PARTS

FRAME, mounting

1шт.

14

7996345

HYDRAULIC HOSE

1-1/16-12 JIC with swivel (2) F/F, 32" long

1шт.

15

7796352

HOSE

HYDRAULIC HOSE, 1-1/16-12 JIC x 1-1/16-12 JIC with swivel M/F 31-1/2" long

1шт.

16

1701127

HYDRAULIC HOSE,6.35 mm ID x 725.00 mm, SAE 100R1, SAE J517

6.35 mm ID x 725.00 mm, SAE 100R1, SAE J517

1шт.

17

7053325

SHEAVE

7-1/2" dia.

1шт.

18

7796386

HYDRAULIC MOTOR

1шт.

19

1662469

SHEAVE

flywheel, 10-3/8" dia.

1шт.

20

761320

KEY

1/4 x 1/4 x 2-1/4 key

1шт.

21

1662667

BRACKET

MOUNTING BRACKET, roller

2шт.

22

52886

WASHER

1/2 x 14 gauge machinery bushing

8шт.

23

711275

BEARING, BALL

BEARING, radial

2шт.

24

6556880

TUBE,39.95 mm ID, 44.45 mm OD, 330.2 mm Length

ROLLER TUBE

1шт.

25

6556898

SHAFT

roller

1шт.

26

710558

FLANGE

bearing

2шт.

27

1662501

FLANGE

SPECIAL FLANGE, bearing

2шт.

28

1661172

SUPPORT

BRACKET, SMV spade

1шт.

29

700108193

ROLL

ER, driven

1шт.

30

6557920

BOLT

DRAWBOLT, 1/2-13 thread

2шт.

31

7852254

BRONZE BUSHING

1 I.D. x 1-1/8" long

1шт.

32

7852296

BRONZE BUSHING

7/8 I.D. x 1-3/4" long

1шт.

7702202

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 hex cap screw grade 5

2шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex cap screw grade 5

2шт.

7701659

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 x 2-1/2 hex cap screw grade 5

1шт.

700047

BOLT

3/8-16 x 1 round head square neck bolt grade 5

26шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 hex washer head machine screw grade 5

2шт.

69419

NUT

3/8-16 x 1/2 cup point hex socket set screw

2шт.

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

7/8 wide plain washer

1шт.
