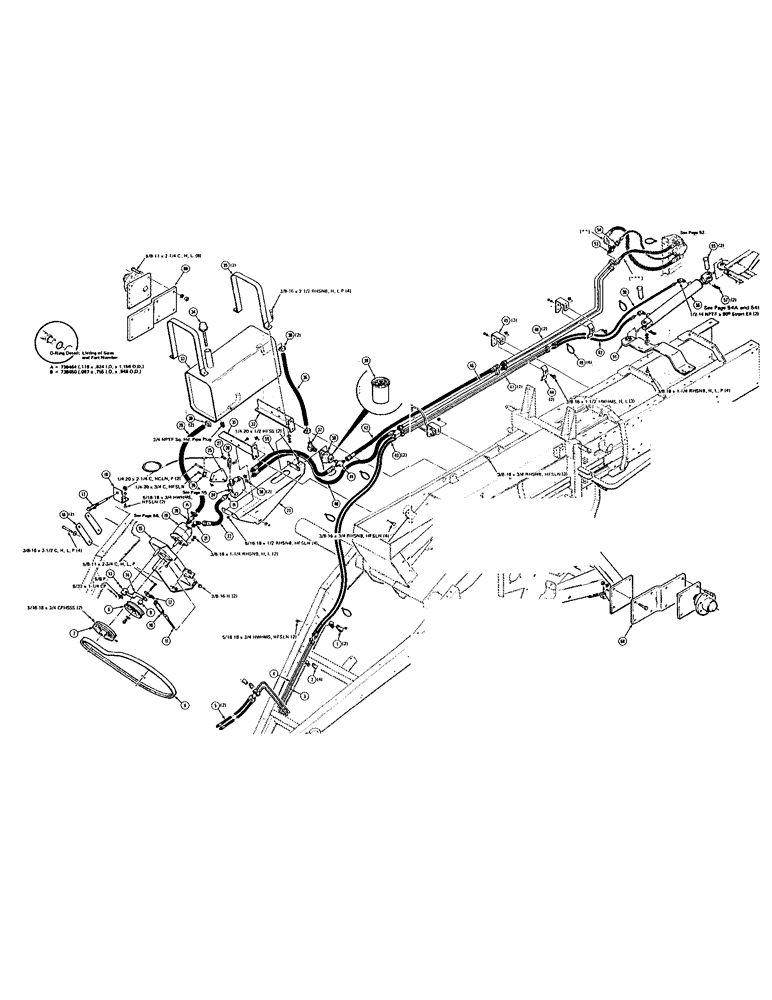

Запчасти Case IH 8540 (50) - BALE THROWER HYDRAULIC CONTROL ASSEMBLY (16) - BALE EJECTOR

7772767

SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 x 3-1/2 hex cap screw grade 5

4шт.

7703473

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1/4-20 x 1-1/4 hex cap screw grade 5

2шт.

700047

BOLT

3/8-16 x 1 round head square neck bolt grade 5

8шт.

430-4214

1/4-20 hex center lock nut

2шт.

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1/4-20 x 1/2 hex flange serrated screw grade 5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 x 3/4 hex cap screw grade 5

1шт.

7773849

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

1/4-20 x 2-1/4 hex cap screw grade 5

2шт.

7770282

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

5/16-18 x 1/2 round head square neck bolt grade 5

4шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 hex washer head machine screw grade 5

4шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 round head square neck bolt grade 5

7шт.

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 round head square neck bolt grade 5

6шт.

7883416

SCREW

3/8-16 x 1-1/2 hex washer head machine screw grade 5

3шт.

7700016

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 x 2-1/2 round head square neck bolt grade 5

4шт.

703561

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8-11 x 2-3/4 hex cap screw grade 5

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 x 2-1/4 hex cap screw grade 5

8шт.

1

755744

CLAMP

hose

2шт.

2

700708090

CLAMP

line

4шт.

3

7796410

TUBE ASSY.

HYDRAULIC LINE, 9/16-18 JIC (2) F/F, 46" long

1шт.

4

7796402

TUBE ASSY.

HYDRAULIC LINE, 9/16-18 JIC (2) F/F, 47" long

1шт.

5

7796337

HOSE

HYDRAULIC HOSE, 9/16-18 JIC x 1/2-14 NPTF M/M, 48" long

2шт.

6

7855802

V-BELT,0.49" W x 90.20" L

2 Power Band 0.49" W x 90.20" L

1шт.

7

1662626

SHEAVE

2-groove sheave, 6-3/8" dia.

1шт.

8

853317

FRONT IDLER

FLAT IDLER, 5" dia.

1шт.

9

1662717

SPACER

1 O.D. x 7/8" long

1шт.

10

758268

SPRING

1шт.

11

6501167

BOLT

DRAWBOLT

1шт.

12

1662832

SPRING

EAR

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

14

1662725

ARM ASSY.

IDLER ARM

1шт.

15

1662576

MOUNTING PARTS

PUMP MOUNTING

1шт.

16

1662816

STRAP

2шт.

17

8797284

CONTAINER

CONTROL CABLE

1шт.

18

1661511

SUPPORT

CABLE MOUNTING ANGLE

1шт.

19

7796378

PUMP

HYDRAULIC PUMP

1шт.

20

7791460

INSERT

1-1/16-12 with o-ring M/1" insert

1шт.

21

7792377

ELBOW

7/8-14 male o-ring x 45deg. elbow

1шт.

22

7796428

TUBE ASSY.

7/8-14 JIC with swivel x 7/8-14 with o-ring, M/M, 12" long

1шт.

23

1662865

MOUNTING PARTS

VALVE, reservoir and filter mount

1шт.

24

7796394

VALVE

FLOW CONTROL VALVE

1шт.

25

1661297

MOUNTING PARTS

VALVE MOUNT

1шт.

26

8797433

CLAMP

FORMED CLAMP

1шт.

27

7041932

ROD, CONNECTING

CONNECTOR, cable

1шт.

28

1661479

ARM

1шт.

29

7796311

HOSE

HYDRAULIC HOSE, 1.0 x 17" long

1шт.

30

7720055

HOSE CLAMP

4шт.

31

1661529

ANGLE

FRONT ANGLE

1шт.

32

1661552

ANGLE

REAR ANGLE

1шт.

33

7796477

RESERVOIR

1шт.

34

7021637

BREATHER

DIP STICK BREATHER CAP

1шт.

35

1661503

STRAP

RESERVOIR STRAP

2шт.

36

7796469

HOSE

HYDRAULIC HOSE, 3/4 x 6" LONG

1шт.

37

8846032

ELBOW

3/4-14 JIC M x 90deg./3/4 insert

1шт.

38

742643

FILTER

ASSEMBLY

1шт.

39

733592

FILTER, ENGINE OIL

FILLER, element

1шт.

40

7796360

HOSE

HYDRAULIC HOSE, 7/8-14 with o-ring x 1-1/16-12 JIC M/M, 28-1/2" long

1шт.

41

1701077

TEE

3/4-14 NPTF x 1-1/16-12 JIC (2) male tee

1шт.

42

1701143

HYDRAULIC HOSE,15.88 mm ID x 1120.00 mm, SAE 100R1 TYPE A, SAE J517

- 1-1/16-12 JIC x 1-1/16-12 JIC F/F 15.88 mm ID x 1120.00 mm, SAE 100R1 TYPE A, SAE J517

1шт.

43

1701069

LINK

HYDRAULIC HOSE, 9/16-18 JIC (2) M/M, 74-7/8" long

2шт.

44

1662899

CLAMP

line

2шт.

45

1662949

BRACKET

line

3шт.

46

7796451

TUBE ASSY.,19.05 mm OD, 955 mm Length

HYDRAULIC LINE, 1-1/16-12 JIC (2) F/F, 38" long

1шт.

47

1700897

HYD TUBE,9.52 mm OD

HYDRAULIC LINE, 9/16-18 JIC (2) F/F, 54" long

2шт.

48

7796568

TUBE ASSY.

HYDRAULIC LINE, 1-1/16-12 JIC (2) F/M, 59" long

2шт.

49

529070

CABLE TIE,368.3mm L

CABLE TIE

6шт.

50

1705235

HYDRAULIC HOSE,6.35 mm ID x 1510.00 mm, SAE 100R1 Type AT, SAE J517

1шт.

51

1662915

BRACKET

CYLINDER MOUNTING BRACKET

1шт.

52

7796295

HOSE

HYDRAULIC HOSE, 9/16-18 JIC x 1/2-14 NPTF M/M, 31-1/2" long

1шт.

53

7846561

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Run

3/4-14 NPTF x 1-1/16-12 JIC (2) male tee

1шт.

54

8046476

REDUCER

3/4 NPTF x 3/8 NPTF F/F reducer

1шт.

55

7037682

PIN

CLEVIS PIN

2шт.

56

796102

CYLINDER

- hydraulic

1шт.

700704934

CYLINDER

- hydraulic

1шт.

57

S120261

PIN

.148 x 2-3/4 hair pin cotter

2шт.

58

738450

O-RING

(.097 x .755 I.D. x .949 O.D.)

2шт.

59

7796329

HOSE

HYDRAULIC HOSE, 1-1/16-12 JIC with swivel x 7/8-14 with o-ring, F/M, 21" long

1шт.

60

1660533

EXTENSION

axle

2шт.
