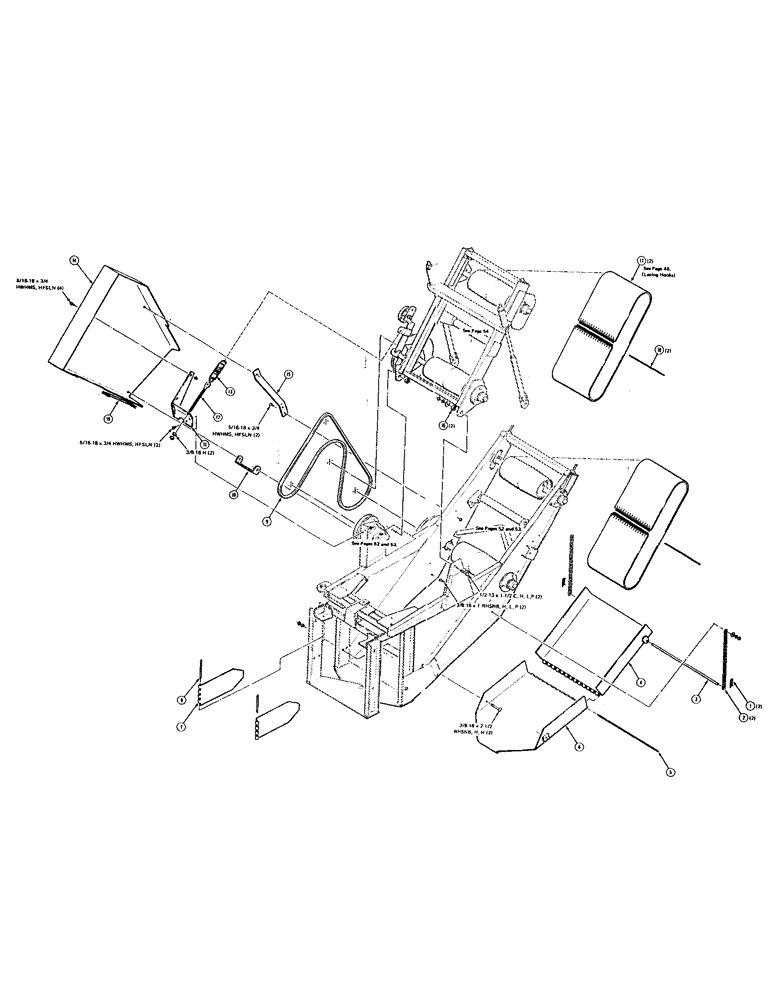

Запчасти Case IH 8540 (48) - THROWER BELTS, SHIELDS AND CHUTE ASSEMBLY (16) - BALE EJECTOR

HK4600BT

BALE THROWER KIT COMPLETE

1шт.

1

S120261

PIN

.148 x 2-3/4 hair pin cotter

2шт.

2

1662543

CHAIN (AG)

CHAIN

2шт.

3

1662527

ROD

CHUTE ROD

1шт.

4

1662402

CHUTE ASSY.

UPPER CHUTE

1шт.

5

329920

SCREW

CHUTE PIN

1шт.

6

1662360

CHUTE ASSY.

LOWER CHUTE

1шт.

7

1662519

SHIELD

BALE CHUTE SHIELD

2шт.

8

1662535

PIN

SHIELD ROD

2шт.

9

7855265

V-BELT

1шт.

10

1662659

ANGLE

LOWER SHIELD SUPPORT ANGLE

1шт.

11

1662436

BRACKET

SPRING AND SHIELD MOUNTING BRACKET

1шт.

12

263350

BOLT

DRAWBOLT

1шт.

13

758102

SPRING

1шт.

14

1662683

SHIELD

1шт.

15

1662675

BRACKET

SHIELD SUPPORT BRACKET

1шт.

16

6840847

BUSHING

(.541 I.D. x .591 long)

2шт.

17

828194

BELT,12.0" W

2шт.

18

828186

PIN

2шт.

19

6612030

GROMMET

trim

1шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 hex washer head machine screw grade 5

8шт.

700047

BOLT

3/8-16 x 1 round head square neck bolt grade 5

2шт.

7700016

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 x 2-1/2 round head square neck bolt grade 5

2шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex cap screw grade 5

2шт.
