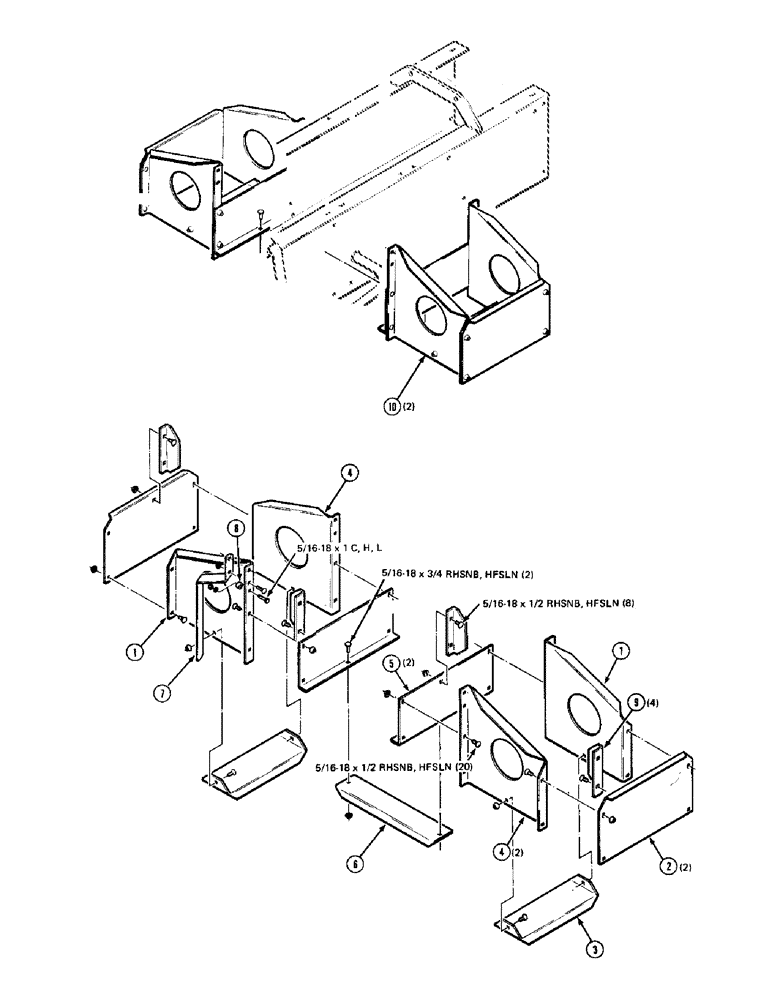

Запчасти Case IH 8540 (39) - LEFT AND RIGHT WIRE BOX ASSEMBLIES (14) - BALE CHAMBER

1

6859425

PANEL

side

2шт.

2

6859466

PANEL

outer

2шт.

3

6859441

BASE

1шт.

4

6859433

PANEL

side

2шт.

5

6859458

PANEL

inner

2шт.

6

6859474

CHANNEL

wire box

1шт.

7

700100006

GUARD

wire

1шт.

8

6560346

SPACER

5/8 O.D. x 13/32" long

1шт.

9

700101200

ANGLE

divider

4шт.

10

6859417

BOX

WIRE BOX ASSEMBLY

2шт.

7770282

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

5/16-18 x 1/2 round head square neck bolt grade 5

28шт.

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 x 1 hex cap screw grade 5

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex cap screw grade 5

1шт.
