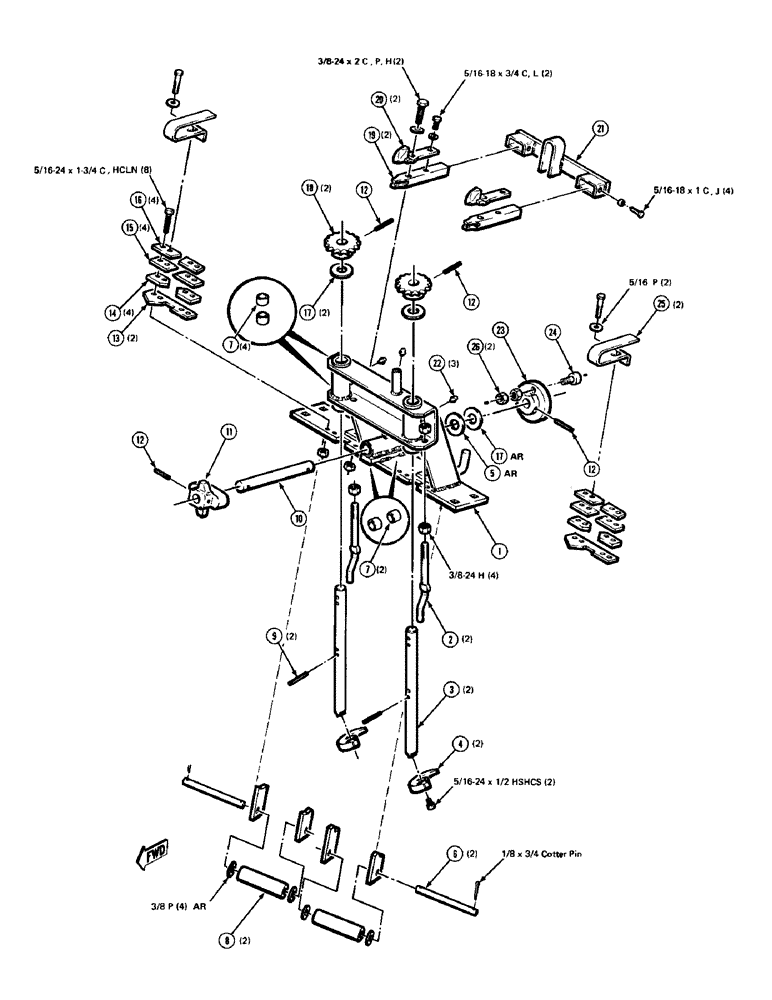

Запчасти Case IH 8540 (38) - WIRE TWISTER PLATFORM (14) - BALE CHAMBER

1

8802258

TWISTER

FRAME, twister

1шт.

2

8806697

ROD

wire deflector

2шт.

3

8802241

SHAFT

twister

2шт.

4

7813165

TWISTER

WIRE TIE TWISTER

2шт.

5

52183

BUSHING

3/4 x 18 gauge machinery bushing

1шт.

6

6859383

PIN

2шт.

7

740787

BRONZE BUSHING

3/4 I.D. x 1" long

6шт.

8

6859375

ROLLER

3-15/16" long

2шт.

9

763482

PIN

3/16 x 1-1/8 slotted spring pin

2шт.

10

8806689

SHAFT

cam

1шт.

11

7813157

CAM

1шт.

12

63107

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, LOCK, 1/4" x 1 1/2", Slotted

4шт.

13

748426

LEDGER PLATE

2шт.

14

7813207

SPACER

lower

4шт.

15

7813215

TOW BAR

TONGUE, wire holder

4шт.

16

7813181

SPACER

upper

4шт.

17

NLS

NO LONGER SERVICED

3/4 x 14 gauge machinery bushing

2шт.

18

851931

SPROCKET ASSY.

SPROCKET, 40-P, 15-tooth

2шт.

19

7813272

CUTTER

wire

2шт.

20

2401582

GUIDE

WIRE GUIDE

2шт.

21

8802381

BAR

SHUTTLE BAR

1шт.

22

77248

FITTING

1/4-28 zerk, taper thread

3шт.

23

7813173

HUB ASSY.

HUB, cam

1шт.

24

51169

BEARING

cam follower

1шт.

25

700101227

GUIDE

wire

2шт.

26

704197

NUT

3/8-24 hex jam nut

2шт.

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex cap screw grade 5

2шт.

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 x 1 hex cap screw grade 5

4шт.

7884729

HARDWARE

5/16-24 x 1-3/4 hex cap screw grade 5

8шт.

72694

BOLT

3/8-24 x 2 hex cap screw grade 5

2шт.

7884711

HEX SOC SCREW,5/16" - 24 x 1/2"

5/16-24 x 1/2 hex socket head cap screw grade 5

2шт.

704536

LOCK NUT

5/16-24 hex center lock nut

8шт.
