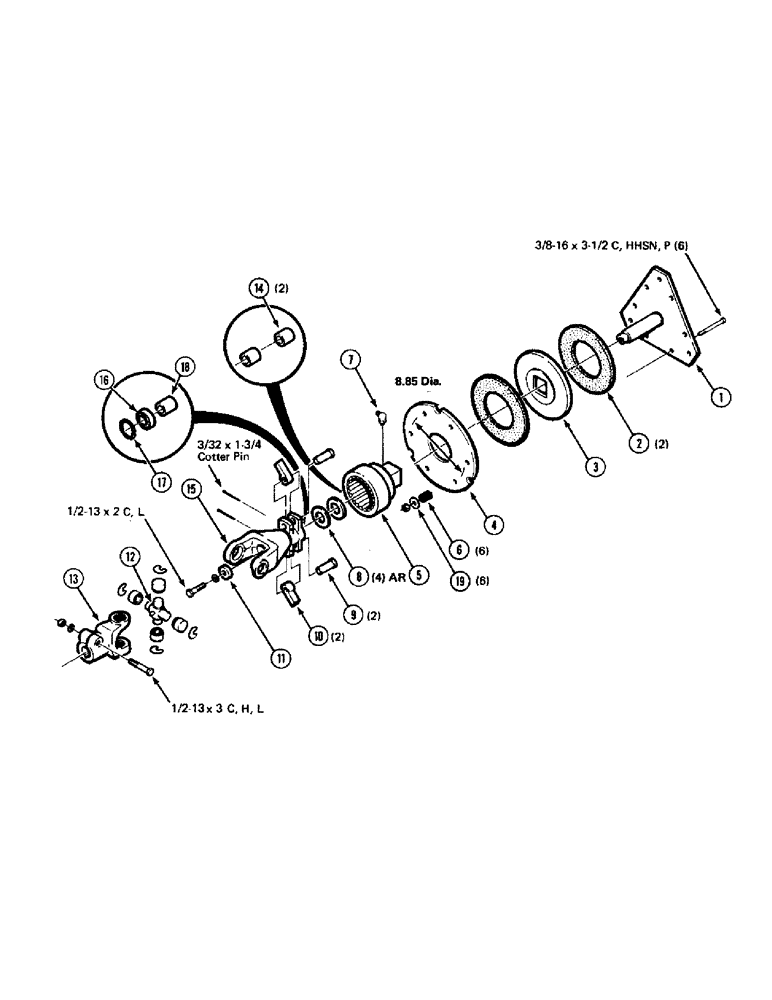

Запчасти Case IH 8540 (33[A]) - OVERRUNNING AND SLIP CLUTCH (14) - BALE CHAMBER

1

1662980

GUIDE

CLUTCH PLATE, pilot

1шт.

2

700709463

DISC

FRICTION DISC, clutch

2шт.

3

51200260

DISC

PRESSURE PLATE, center

1шт.

4

1662964

LARGE PLATE

PRESSURE PLATE

1шт.

5

6855522

FITTING

HOUSING AND HUB ASSEMBLY

1шт.

6

58107

SPRING

compression

6шт.

7

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1/4-28 x 45deg. zerk

1шт.

8

6522932

SHIM

clutch

4шт.

9

6522916

PIN

pawl

2шт.

10

6522924

CLUTCH

PAWL, overrunning clutch

2шт.

11

6522940

SPACER

3/8" long

1шт.

12

845198

KIT

JOURNAL REPAIR KIT

1шт.

13

816025

YOKE

clamp end

1шт.

14

7852114

BUSHING,34.9mm ID x 38.1mm OD x 33.27mm L

1-3/8 I.D. x 1-1/2" long

2шт.

15

7813298

YOKE

ASSEMBLY (includes bearing, retainer ring and bushing)

1шт.

16

7714926

BALL BEARING,20 mm ID x 42 mm OD x 12 mm

radial

1шт.

17

7852726

OIL SEAL

RETAINER RING

1шт.

18

7852817

BUSHING

1-3/8 I.D. x 1-5/16" long

1шт.

19

700709603

WASHER,3/8"

3/4 NPW

6шт.

7701675

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 hex cap screw grade 5

1шт.

7772767

SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 x 3-1/2 hex cap screw grade 5

6шт.

7702038

SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 x 3 hex cap screw grade 5

1шт.

704122

NUT

3/8-16 heavy hex stop nut

6шт.
