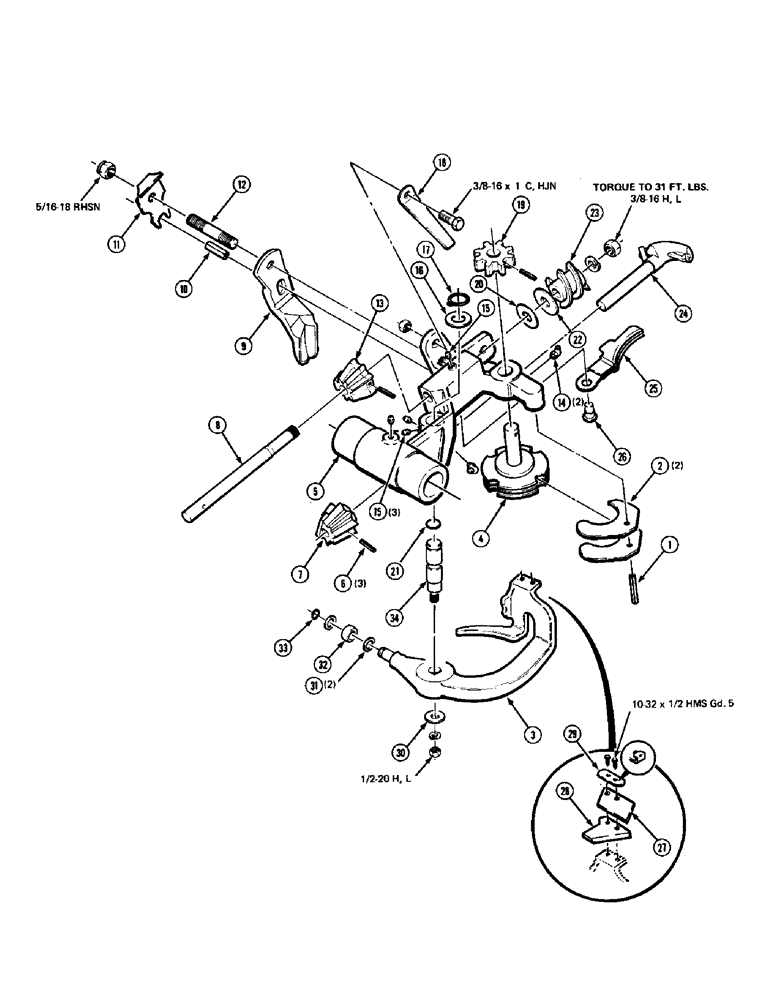

Запчасти Case IH 8540 (32) - TWINE KNOTTER HEAD (14) - BALE CHAMBER

6853311

KNOTTER ASSY.

KNOTTER HEAD COMPLETE

1шт.

1

63396

LOCK PIN,3/16" x 1 1/2", Slotted

Pin, 3/16" x 1 1/2", Slotted

1шт.

2

6853352

CLEANER

KNOTTER CLEANER

2шт.

3

6853345

STRIPPER

ARM

1шт.

4

8745358

DISC

TWINE DISC

1шт.

5

6853329

FRAME

KNOTTER HEAD FRAME

1шт.

6

863761

PIN, GROOVED

3/16 x 7/8 groove pin

3шт.

7

7894389

PINION

GEAR, bill hook

1шт.

8

6553267

SHORT SHAFT

KNOTTER WORM SHAFT

1шт.

9

6523203

CAM

BILL HOOK CAM

1шт.

10

138-153

LOCK PIN,5/16" x 1", Slotted

5/16 x 1 slotted spring pin

1шт.

11

7895733

SPRING

TENSIONER SPRING

1шт.

12

6523229

STUD

MOUNTING STUD

1шт.

13

7894421

WORM

BEVEL PINION GEAR, worm

1шт.

14

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1/4-28 x 90deg. zerk

2шт.

15

77818

FITTING

1/4-28 straight zerk - spin drive thread

4шт.

16

7852742

WASHER,19.84mm ID x 27.38mm OD x 0.889mm Thk

25/32 x 20 ga. machinery bushing

1шт.

17

852533

OIL SEAL

RETAINER RING

1шт.

18

6553259

SPRING

TWINE SPRING

1шт.

19

7894454

PINION

GEAR, twine disc

1шт.

20

6553275

SHIM

COUNTERSHAFT SHIM

1шт.

21

733048

O-RING

1шт.

22

7852163

BUSHING

5/8 x 20 ga. machinery bushing

1шт.

23

7894413

WORM GEAR

1шт.

24

700108195

BILL HOOK

KNOTTER BILL HOOK

1шт.

25

8745325

HOLDER

TWINE HOLDER

1шт.

26

6523237

SCREW

SHOULDER SCREW

1шт.

27

6858971

BASE

knife

1шт.

28

49783

KNIFE

twine

1шт.

29

6613624

WASHER, LOCK

LOCK, tab

1шт.

30

6591572

WASHER

special

1шт.

31

7852593

SHIM,15mm ID x 21mm OD x 1mm Thk

9/16 x 20 gauge machinery bushing

2шт.

32

700122799

ROLLER

SPHERICAL ROLLER

1шт.

33

7852577

RING, SNAP

RETAINER RING

1шт.

34

6591580

SHAFT

stripper arm

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex cap screw grade 5

1шт.

231-1445

NUT,5/16"-18, GB

5/16-18 regular hex stop nut

1шт.
