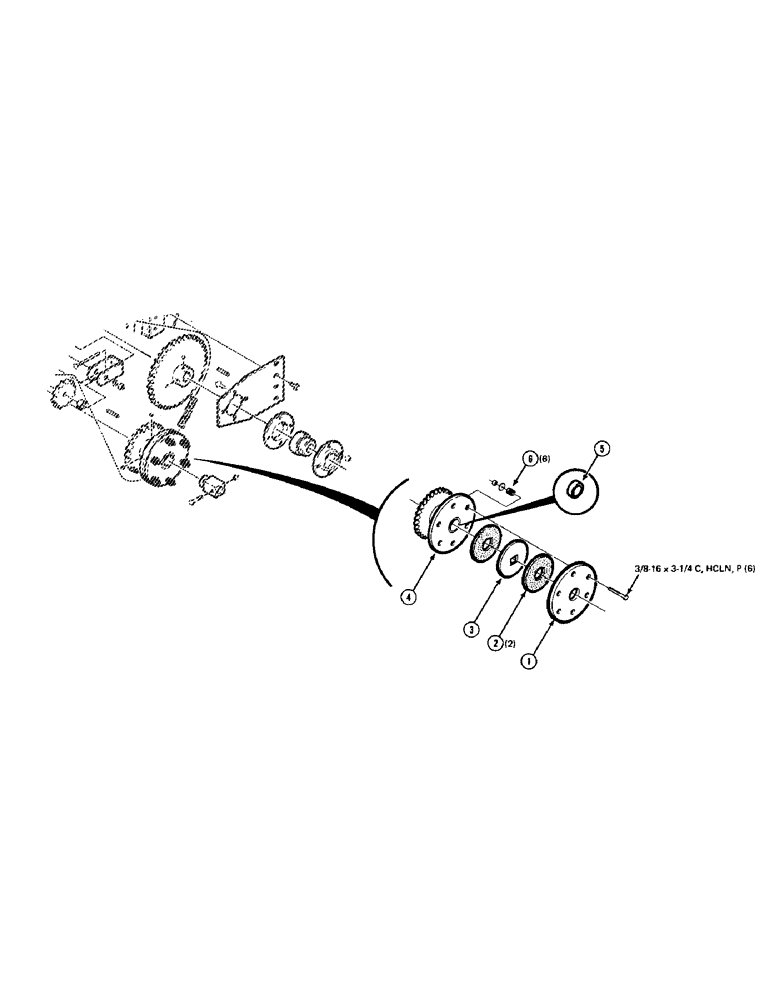

Запчасти Case IH 8540 (25[A]) - SLIP CLUTCH, PICKUP, ASSEMBLY (14) - BALE CHAMBER

1

6855282

PLATE

pressure

1шт.

2

755421

FACING

FRICTION DISC, clutch

2шт.

3

6855274

DISC

center

1шт.

4

2401467

DISC

SPROCKET AND CLUTCH DISC ASSEMBLY, 80-pitch, 32-tooth (includes bushing)

1шт.

5

8052391

BRONZE BUSHING

1-3/4 I.D. x 1/2" long

1шт.

6

58107

SPRING

compression

6шт.

873174

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8-16 x 3-1/4 hex cap screw grade 5

6шт.

88902

NUT,3/8"-16

3/8-16 hex center lock nut

6шт.
