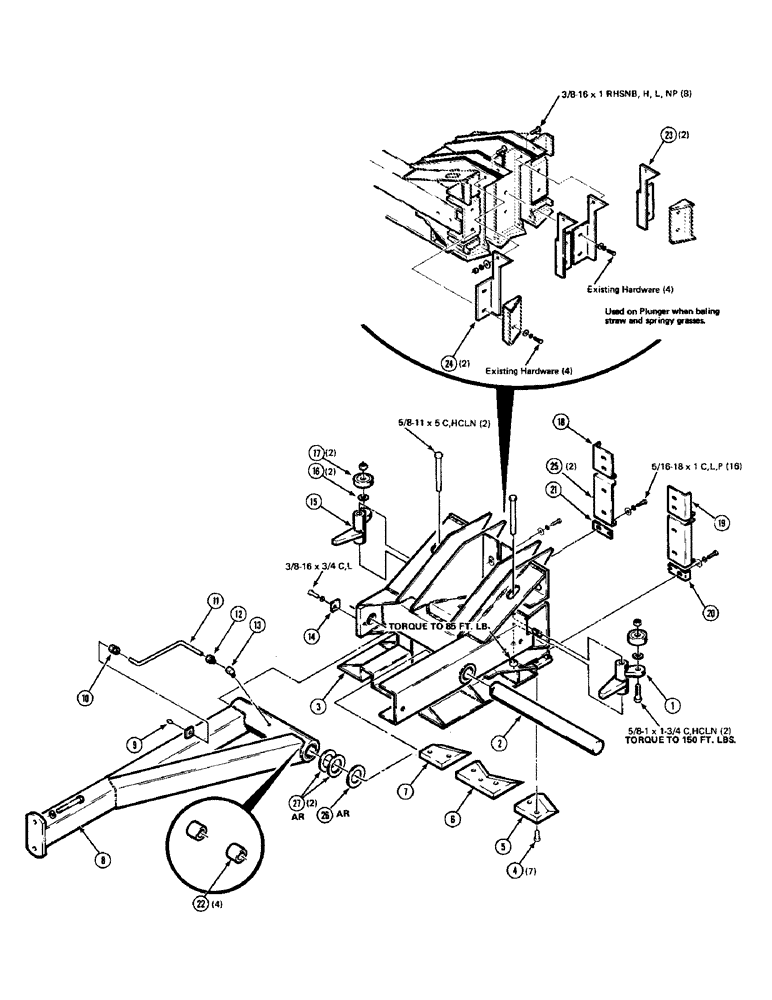

Запчасти Case IH 8540 (24) - PLUNGER ASSEMBLY (14) - BALE CHAMBER
№
Артикул
Название
Примечание
Количество
1
6857023
PIVOT
ADJUSTING PIVOT, left
1шт.
2
6857015
PIN
wrist
1шт.
3
700101178
PLUNGER
1шт.
4
26146
BOLT
1/2-20 x 13/16 wheel bolt
7шт.
5
700702047
KNIFE
PLUNGER KNIFE, left
1шт.
6
700702048
KNIFE
PLUNGER KNIFE, center
1шт.
7
700702049
KNIFE
PLUNGER KNIFE, right
1шт.
8
2401579
PITMAN ASSY.
PITMAN (includes bushings)
1шт.
9
77065
LUBE NIPPLE,1/8"-27 x .66 lg
1/8 NPTF zerk
1шт.
10
7746167
PLUG
1/8 NPTF x 3/16 I.D. F/F connector
1шт.
11
7796246
LINE
grease, 6-1/2" long
1шт.
12
7746472
CONNECTOR, ELEC
1/8 NPTF x 3/16 I.D. M/F connector
1шт.
13
7746464
ELBOW
1/4-28 x 1/8 NPTF M/F x 90deg. elbow
1шт.
14
6857114
RETAINER
TAB, retainer
1шт.
15
6857064
PIVOT
ADJUSTING PIVOT, right
1шт.
16
52233
BUSHING
5/8 x 14 gauge machinery bushing
2шт.
17
667925R91
ROLLER BEARING,0.628" ID x 2" OD x 15 mm
CYLINDRICAL BEARING
2шт.
18
700101189
ANGLE
WIPER, upper, right
1шт.
19
700101190
ANGLE
WIPER, upper, left
1шт.
20
6857106
ANGLE
WIPER, lower, left
1шт.
21
6857882
ANGLE
WIPER, lower, right
1шт.
22
1661171
BUSHING
1-3/4 I.D. x 2" long
4шт.
23
6856587
WEDGE
PLUNGER FACE EXTENSION, right
2шт.
24
6856595
WEDGE
PLUNGER FACE EXTENSION, left
2шт.
25
700101191
ANGLE
WIPER, center
2шт.
26
51200824
DISC
1-3/4 x 10 gauge machinery bushing
1шт.
27
52290
BUSHING
1-3/4 x 14 gauge machinery bushing
2шт.
701235
BOLT,1/2" - 13 x 1 1/2", Gr 5
1/2-13 x 1-1/2 hex cap screw grade 5
2шт.
703579
BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd
5/16-18 x 1 hex cap screw grade 5
16шт.
703199
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
3/8-16 x 3/4 hex cap screw grade 5
1шт.
703793
BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5, Full Thd
5/8-11 x 1-3/4 hex cap screw grade 5
2шт.
7702194
CAPSCREW,Hex, 5/8" - 11 x 5", Gr 5
5/8-11 x 5 hex cap screw grade 5
2шт.
230-42110
LOCK NUT,5/8"-11, GA
5/8-11 hex center lock nut
4шт.
705657
WASHER
3/8 narrow plain washer
8шт.
Выбрано товаров: 35
