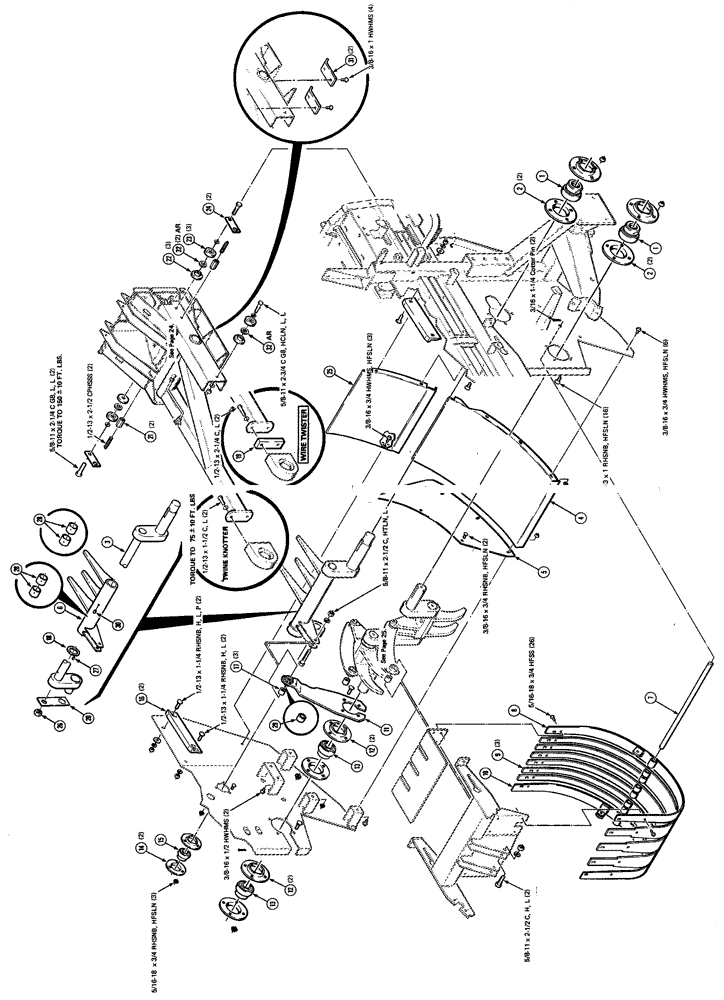

Запчасти Case IH 8540 (22) - FEEDER CHARGE ASSEMBLY (13) - FEEDER

1

712158

SPHERICAL BEARING,2" ID x 100 mm OD

SPHERICAL BEARING

2шт.

2

714360

FLANGED BEARING

FLANGE, bearing

4шт.

3

2401533

CRANK

CRANK, stuffer

1шт.

4

NLS

NO LONGER SERVICED

PAN, chute

1шт.

5

2401573

CHUTE ASSY.

SIDE, chute

1шт.

6

NLS

NO LONGER SERVICED

FORK, stuffer

1шт.

7

2401561

ROD

TILE ROD, wrapper

1шт.

8

2401556

UNIT

WRAPPER, left

1шт.

9

NLS

NO LONGER SERVICED

WRAPPER, center

3шт.

10

2401557

UNIT

WRAPPER, right

1шт.

11

2401541

LINK ASSY.

LINK, stuffer

1шт.

12

50583

FLANGED BEARING

FLANGE, bearing

4шт.

13

51318

BEARING

SPHERICAL BEARING

2шт.

14

51200380

FLANGE

FLANGE, bearing

2шт.

15

50302

SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm

SPHERICAL BEARING

1шт.

16

NLS

NO LONGER SERVICED

KNIFE

2шт.

17

6857122

BUSHING

BUSHING, 1" O.D. x 1-1/16" long

3шт.

18

51200383

BUSHING

1-3/4 x 14 gauge machinery bushing

1шт.

19

2401577

SPACER

SPACER (wire twister only)

1шт.

20

2401531

PLATE

TAB, lock

1шт.

21

6857874

SPECIAL NUT

SPECIAL NUT, use screw 708545, see below

2шт.

22

6857866

SPACER

SPACER, special

3шт.

23

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

CYLINDRICAL BEARING

3шт.

24

6856579

PLATE

TAB, lock

2шт.

25

2401552

BUSHING

DOOR, chute

1шт.

26

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

1-1/2-12 hex jam nut

1шт.

27

2700107

WOODRUFF KEY,3/8" x 1

3/8 x 1 Woodruff key

1шт.

28

6849160

BRONZE BUSHING,44.74mm ID x 50.93mm OD x 38.1mm L

BUSHING, bronze, 1-3/4 I.D. x 1-1/2" long

4шт.

29

1700061

BUSHING

BUSHING, bronze, 1" I.D. x 1" long

1шт.

30

77065

LUBE NIPPLE,1/8"-27 x .66 lg

1/8 NPTF zerk

1шт.

31

700101216

KNIFE

KNIFE, plunger

2шт.

32

52233

BUSHING

5/8 x 14 gauge machinery bushing

3шт.

7701659

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 x 2-1/2 hex cap screw grade 5

3шт.

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex cap screw grade 5

2шт.

70924864

SCREW

1/2-13 x 2-1/4 hex cap screw grade 5

2шт.

873687

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8-11 x 2-1/4 hex cap screw grade 5

2шт.

873703

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

5/8-11 x 2-3/4 hex cap screw grade 8

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 round head square neck bolt grade 5

3шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 round head square neck bolt grade 5

2шт.

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 round head square neck bolt grade 5

16шт.

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-13 x 1-1/4 round head square neck bolt grade 5

4шт.

703132

SERRATED SCREW

5/16-18 x 3/4 hex flange serrated screw

26шт.

7883366

SCREW,Hex Washer, 3/8" - 16 x 1/2"

3/8-16 x 1/2 hex washer head machine screw

2шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 x 3/4 hex washer head cap screw grade 5

8шт.

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

5/16-18 x 1 hex washer head cap screw grade 5

4шт.

708545

SET SCREW

1/2-13 x 2-1/2 cup point hex socket set screw, used with ref 21 Nut

2шт.

704700

SUPPORT

5/8-11 hex center lock nut

1шт.

704924

NUT

5/8-11 hex top lock nut

3шт.
