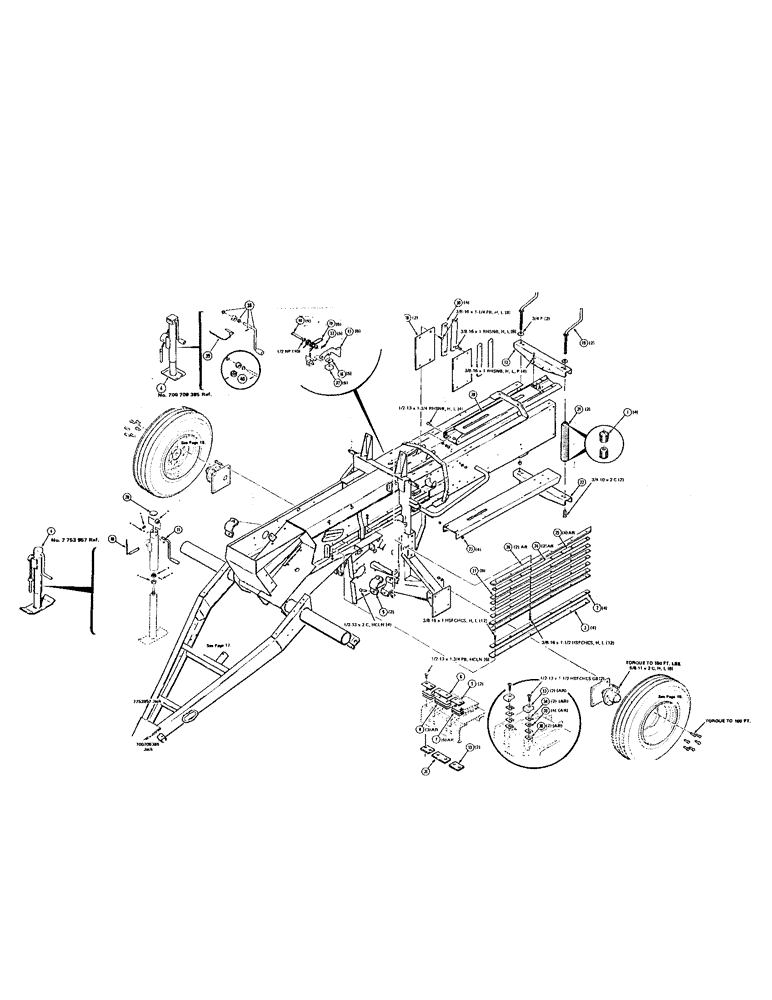

Запчасти Case IH 8540 (20) - MAINFRAME AND BALE CHAMBER (12) - MAIN FRAME

1

6555684

PLUG

spring

4шт.

2

6851554

RAIL ASSY.

RAIL, hardened

4шт.

3

6851687

SHIELD

rail

4шт.

4

7753957

JACK

lift

1шт.

700709385

JACK

Lift

1шт.

5

748269

KNIFE

side

2шт.

6

51200282

KNIFE

center

1шт.

7

6851539

SHIM

side knife

6шт.

8

6851547

SHIM

center knife

3шт.

9

6851299

MOUNTING PARTS

MOUNTING STRAP, pickup

2шт.

10

756007

PIN

AND CHAIN, 7753957 JACK

1шт.

11

755975

CRANK

HANDLE, 7753957 JACK

1шт.

12

2401519

CHANNEL

cross

1шт.

13

6851802

PAD

KNIFE PAD, outer

2шт.

14

863423

CLEVIS PIN

1/2 x 3-1/2 clevis pin

5шт.

15

700703776

SPRING

TORSION SPRING

5шт.

16

700108418

WASHER

- special

5шт.

17

700108417

RETAINER

HAYDOG

5шт.

18

6850762

PLATE

chamber

2шт.

19

6851695

CRANK

2шт.

20

2401510

CHANNEL

upper

1шт.

21

6554356

SPRING

ASSEMBLY (includes plugs)

2шт.

22

2401511

CHANNEL

lower

1шт.

23

324269

BUSHING

SPACER, 3/8" long

4шт.

24

6851562

SHIM

4шт.

25

6851570

SHIM

16шт.

26

6851521

RAIL

- side

2шт.

27

6851588

SHIM

8шт.

28

8804338

CAP

dust (7753957 jack)

1шт.

29

7753858

PACKAGE, REPAIR

JACK REPAIR KIT, Includes items in art marked with asterisk, 7753957 JACK

1шт.

30

837971

CASTING

RESISTOR, hay

4шт.

31

6851729

PAD

KNIFE PAD, center

1шт.

32

T54573

PIN

.120 x 2-1/2 hair pin cotter

5шт.

33

700101217

KNIFE

2шт.

34

700101218

ADJUSTING PLATE

SHIM, .057

2шт.

35

700101219

ADJUSTING PLATE

SHIM, .017

4шт.

36

700101221

ADJUSTING PLATE

SHIM, .112

2шт.

37

700703778

BUMPER

rubber

5шт.

38

700702060

CRANKED HANDLE

CRANK KIT, 700709385 JACK

1шт.

39

700709409

LINK CHAIN

PIN AND CHAIN ASSEMBLY, 700709385 JACK

1шт.

40

700702059

KIT

GEAR SE, 700709385 JACK

1шт.

700047

BOLT

3/8-16 x 1 round head square neck bolt grade 5

8шт.

7701675

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 hex cap screw grade 5

4шт.

7701949

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex cap screw grade 5

8шт.

7702160

BOLT,Hex 3/4" - 10 x 2", Gr 5

3/4-10 x 2 hex cap screw grade 5

2шт.

703850

HEX SOC SCREW,Flat Hd, 3/8"-16 x 1"

3/8-16 x 1 hex socket flat countersunk head cap screw grade 8

12шт.

768226

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 round head square neck bolt grade 5

1шт.

7883598

HEX SOC SCREW,Flat Hd, CSK, 3/8" - 16 x 1 1/2"

3/8-16 x 1-1/2 hex socket flat countersunk head cap screw grade 8

12шт.

700700584

HEX SOC SCREW,Flat Hd, 1/2"-13 x 1 1/2"

1/2-13 x 1-1/2 hex socket, flat, 3/8 SP, countersunk head cap screw grade 8

2шт.

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-13 x 1-1/4 round head square neck bolt grade 5

4шт.

707018

BOLT,#3, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 plow bolt grade 5

8шт.

707455

BOLT,#3, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 x 1-3/4 plow bolt grade 5

6шт.

704288

LOCK NUT

1/2-13 hex center lock nut

10шт.

495-11053

WASHER,1/2", SAE

1/2 narrow plain washer

5шт.
