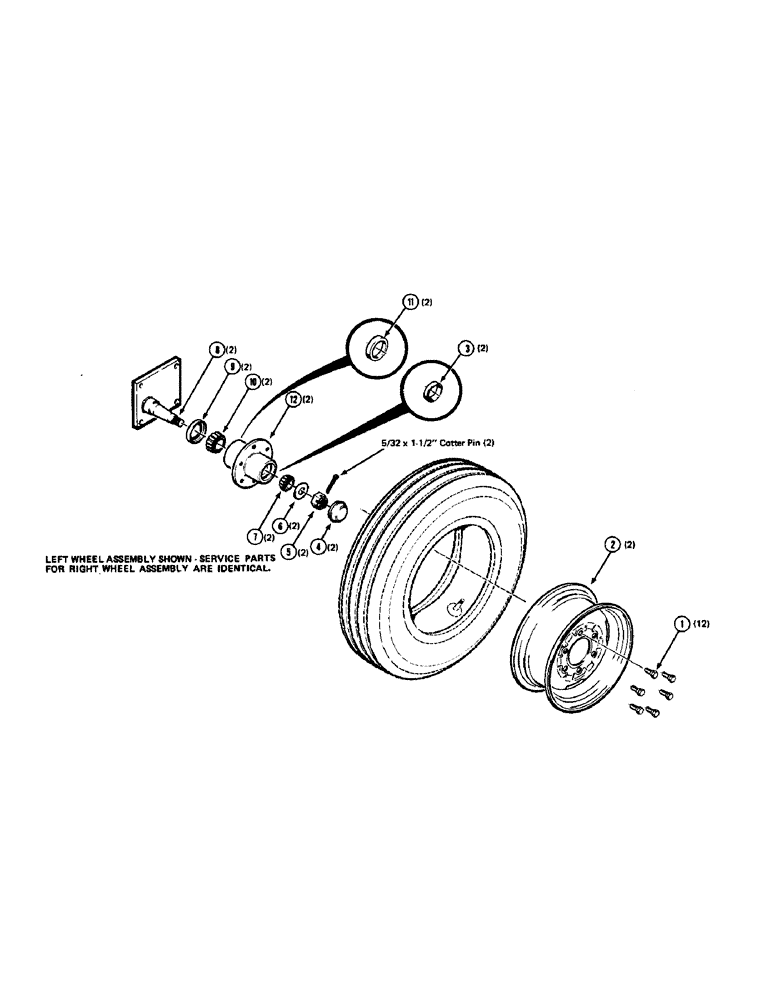

Запчасти Case IH 8540 (18[A]) - WHEEL AND HUB ASSEMBLY (12) - MAIN FRAME

1

13542

WHEEL BOLT,Hex, 9/16" - 18 x 1 1/8", HT

9/16-18 x 1-1/8 wheel bolt

12шт.

2

700707967

RIM

WHEEL RIM, 14"

2шт.

3

711242

BEARING CUP

outer

2шт.

4

26930

CAP

HUB CAP

2шт.

5

7704208

SLOTTED NUT

3/4-16 slotted hex nut

2шт.

6

26971

WASHER

2шт.

7

711507

ROLLER BEARING,31.77 mm ID x 16.764 mm

BEARING CONE, outer

2шт.

8

6851646

SPINDLE

2шт.

9

844050

SEAL

grease

2шт.

10

713537

ROLLER BEARING

BEARING CONE, inner

2шт.

11

663558R1

BEARING CUP

inner

2шт.

12

826255

HUB

ASSEMBLY (includes cups)

2шт.
