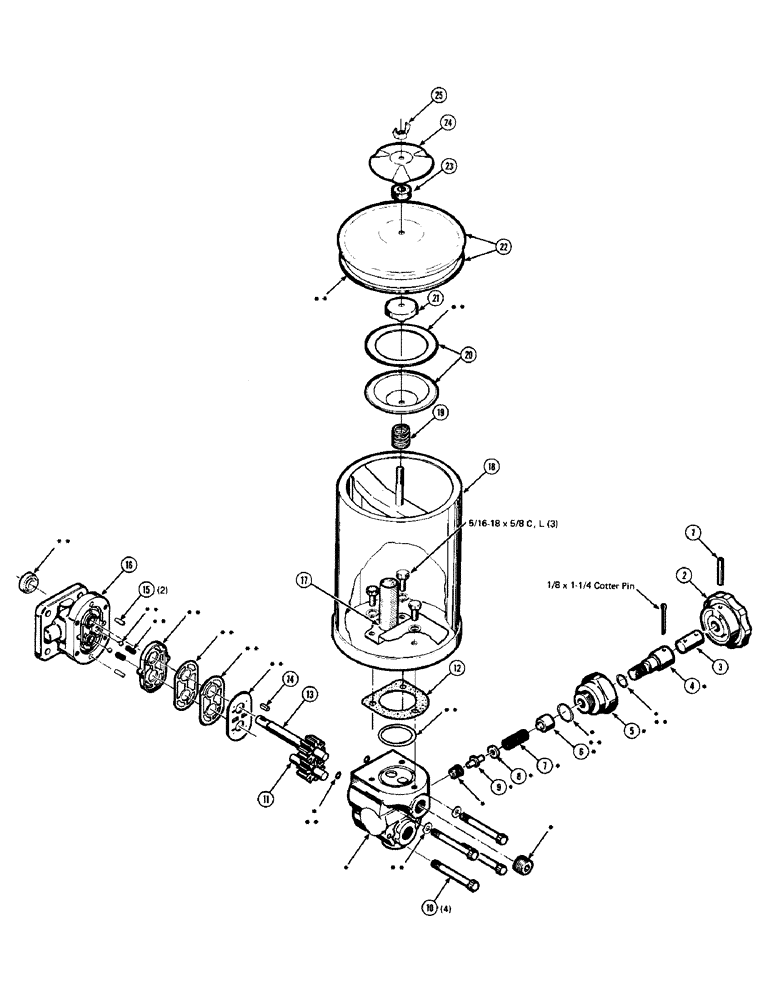

Запчасти Case IH 8540 (45) - HYDRAULIC PUMP AND RESERVOIR (07) - HYDRAULICS

7892128

VALVE

HYDRAULIC PUMP AND RESERVOIR COMPLETE

1шт.

1

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1/8" x 1 1/4", Slotted

1шт.

2

8040552

KNOB

1шт.

3

8040545

ROD

connector

1шт.

4

8040560

ADJUSTMENT SCREW

adjusting

1шт.

5

8040578

PLUG

ASSEMBLY (includes o-ring)

1шт.

6

8040503

GUIDE

spring

1шт.

7

8040495

SPRING

1шт.

8

730820

SHIM

1шт.

9

731679

VALVE POPPET

POPPET ASSEMBLY

1шт.

10

7071871

12 PT SCREW

1/4-20 x 2-1/4 12 point cap screw

4шт.

11

8040537

GEAR

IDLER GEAR ASSEMBLY

1шт.

12

730259

GASKET

reservoir

1шт.

13

8040529

GEAR

DRIVE GEAR ASSEMBLY

1шт.

14

8040487

KEY

1/8 x 1/8 x 23/32 key

1шт.

15

730804

DOWEL,1/4" x 1/2"

1/4 x 1/2 dowel pin

2шт.

16

731067

LARGE PLATE

FRONT PLATE ASSEMBLY

1шт.

17

730275

FILTER

SCREEN ASSEMBLY

1шт.

18

2700072

FLEXIBLE HOSE

RESERVOIR

1шт.

19

2700073

SPRING

1шт.

20

733766

FILTER

POCKET ASSEMBLY

1шт.

21

730895

CAP

FILTER CAP

1шт.

22

733774

COVER

LID AND GASKET

1шт.

23

730887

FILTER

AIR FILTER

1шт.

24

668394R1

CAP

BREATHER CAP

1шт.

25

704205

NUT, WING

1/4-20 wing nut

1шт.

2700074

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

5/16-18 x 5/8 12-point cap screw grade 5

3шт.

8040479

LARGE PLATE

BACK PLATE REPAIR KIT, Includes items in art marked with asterisk.

1шт.

8040586

SEAL KIT

SEAL REPAIR KIT, Includes items in art marked with (2) asterisks.

1шт.
