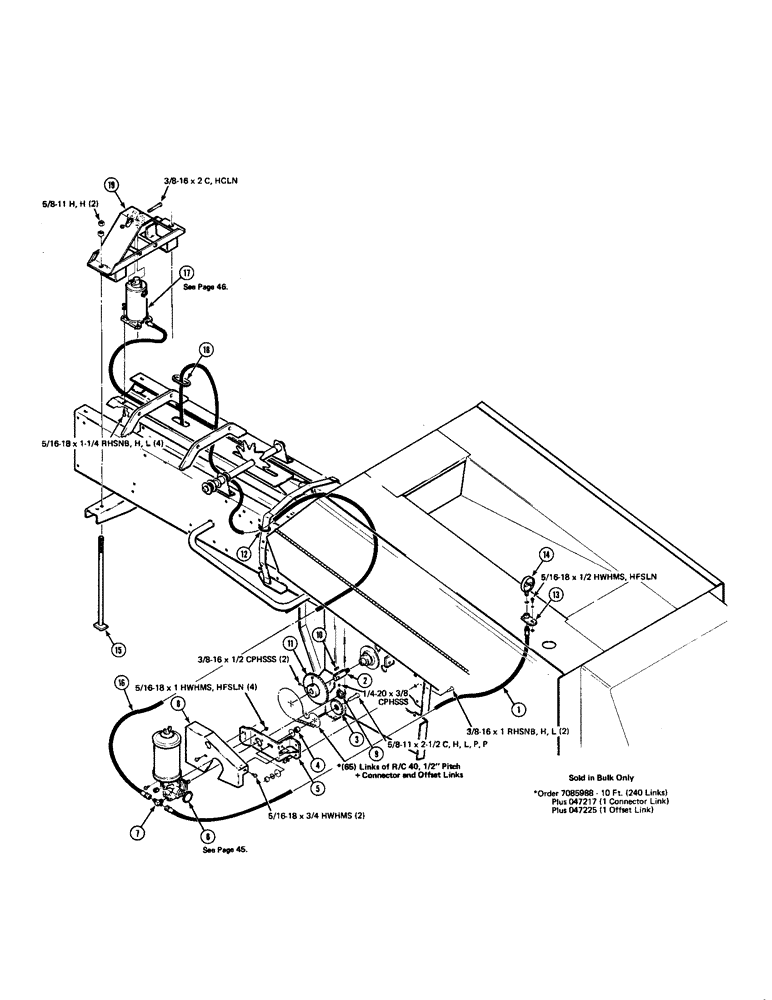

Запчасти Case IH 8540 (44) - HYDRAULIC BALE TENSIONER KIT (07) - HYDRAULICS

HK42365

AUTOMATIC HYDRAULIC BALE TENSIONER KIT COMPLETE

1шт.

1

7042633

HYDRAULIC HOSE,0.25" ID x 53.00"

1/4-28 NPTF x 9/16-18 JIC with swivel M/F, 53" long

1шт.

2

6855183

SHAFT

stub

1шт.

3

88732

BEARING

IDLER SPROCKET, 40-pitch, 18-tooth

1шт.

4

312801

SPACER

1шт.

5

6855142

MOUNTING PARTS

MOUNTING BRACKET, pump

1шт.

6

7892128

VALVE

HYDRAULIC PUMP AND RESERVOIR

1шт.

7

2700139

TEE

9/16-18 JIC (2) x 3/8 NPTF M/M/M TEE

1шт.

8

6855175

SHIELD

pump

1шт.

9

7851082

SPROCKET ASSY.

SPROCKET, 40-pitch, 10-tooth

1шт.

10

61077

KEY

1/4 x 1/4 x 1-1/4 key

1шт.

11

6855134

SPROCKET ASSY.

SPROCKET, 40-pitch, 40-tooth

1шт.

12

722470

MOUNTING CLIP

CABLE TIE

1шт.

13

6560726

MOUNTING PARTS

MOUNTING, gauge

1шт.

14

8722464

PRESSURE GAUGE

1шт.

15

6560601

ROD

ADJUSTING ROD, tension

2шт.

16

2700141

HYDRAULIC HOSE

1/4 NPTF x 9/16-18 JIC with swivel M/F, 88-5/8" long

1шт.

17

8042020

CYLINDER ASSY.

HYDRAULIC CYLINDER

1шт.

18

6829501

GROMMET

1шт.

19

6560635

SUPPORT

TENSION TRUSS

1шт.

7701659

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 x 2-1/2 hex cap screw grade 5

1шт.

7701634

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 hex cap screw grade 5

1шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 hex washer head machine screw grade 5

4шт.

7700107

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5, Full Thd

5/16-18 x 1-1/4 round head square neck bolt grade 5

4шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 hex washer head machine screw grade 5

2шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 hex washer head machine screw grade 5

1шт.

704635

NUT

3/8-16 hex center lock nut

1шт.

69765

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

1/4-20 x 3/8 cup point hex socket set screw

1шт.

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

3/8-16 x 1/2 cup point hex socket set screw

2шт.
