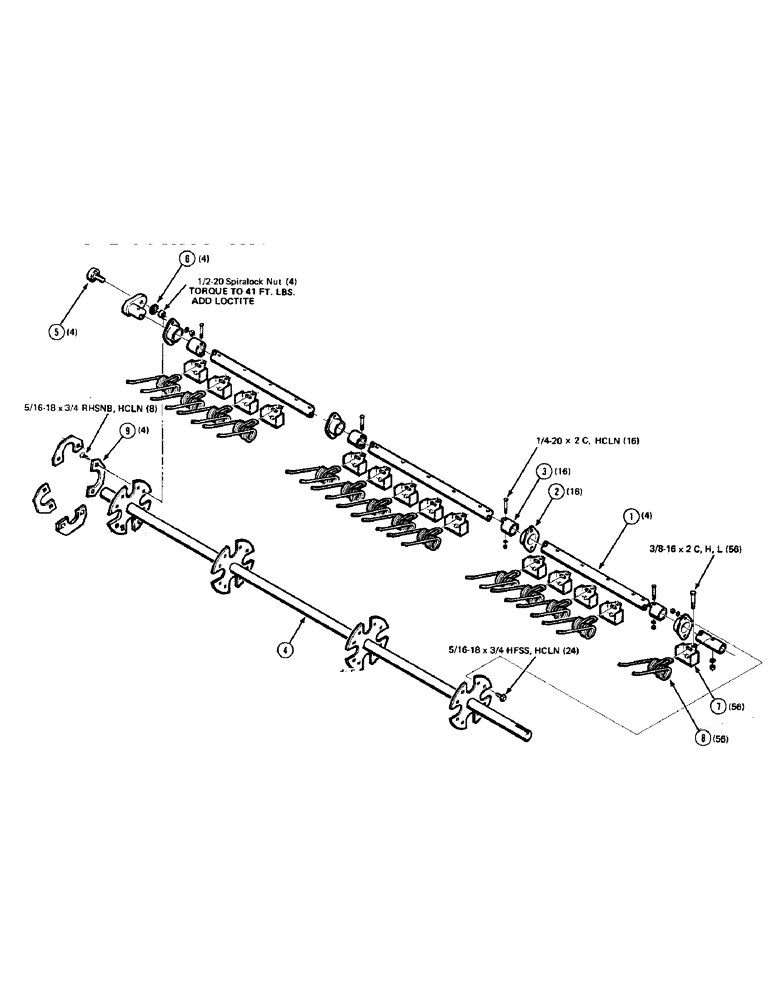

Запчасти Case IH 8540 (17[A]) - TINE PICKUP ASSEMBLY Pickup

1

6852511

TUBE

TINE SHAFT

4шт.

2

6157879

BEARING HOUSING

bearing

16шт.

3

6105159

NYLON BEARING,1.75"

BEARING, tine

16шт.

4

6852479

ROTOR ASSY.

ROTOR SHAFT, pickup

1шт.

5

700705612

CAM FOLLOWER

BEARING, cam

4шт.

6

705228

BRACKET

1/2 external lock washer

4шт.

7

6867824

SUPPORT

tine

56шт.

8

8045981

TINE

double

56шт.

9

702400019

RETAINER

CLIP

4шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 round head square neck bolt grade 5

8шт.

703132

SERRATED SCREW

5/16-18 x 3/4 hex flange serrated screw

24шт.

7701634

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8-16 x 2 hex cap screw grade 5

56шт.

7701485

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4-20 x 2 hex cap screw grade 5

16шт.

702700045

LOCK NUT

1/2-20 spiralock nut

4шт.

704619

SUPPORT

5/16-18 hex center lock nut

32шт.

430-4214

1/4-20 hex center lock nut

16шт.

700712011

BUSHING

1 in., for wheels

1шт.

700709967

BUSHING

3/4 in.

1шт.
