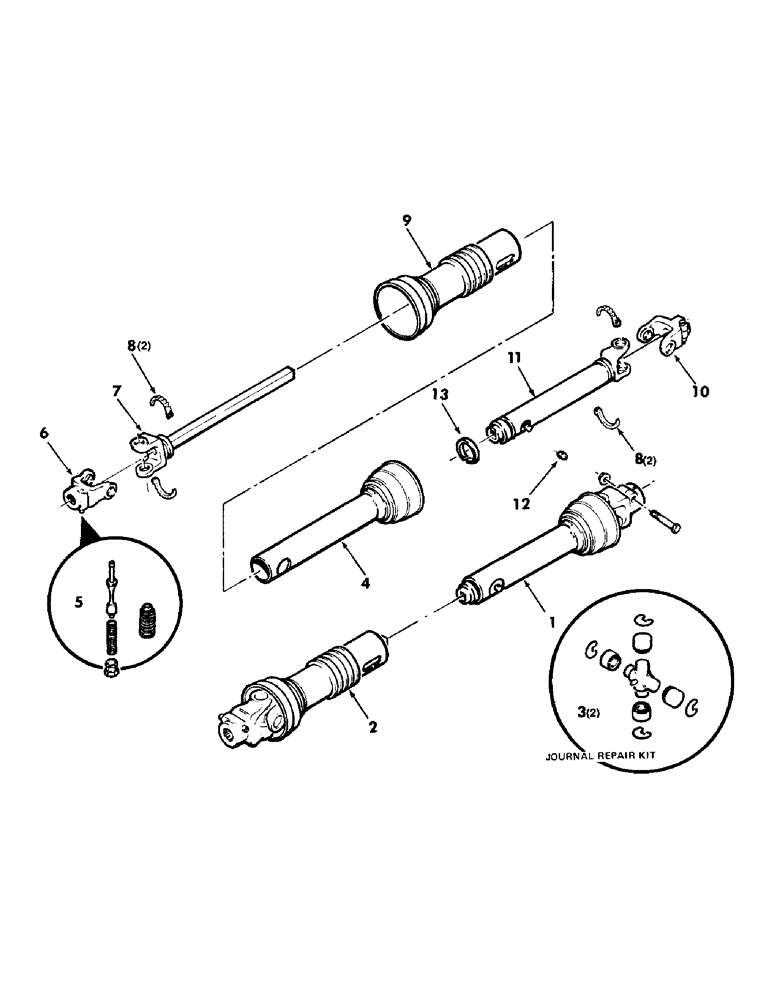

Запчасти Case IH 8540 (18A) - IMPLEMENT DRIVE LINE PLASTIC SHIELDS, PAGE 18 SHOWS IMPLEMENT DRIVELINE WITH METAL SHIELDS Driveline

1

700709010

YOKE

IMPLEMENT HALF ASSEMBLY

1шт.

2

700709011

YOKE

TRACTOR HALF ASSEMBLY (540 RPM)

1шт.

3

845198

KIT

JOURNAL REPAIR KIT

2шт.

4

700709008

SHIELD

- inner, plastic

1шт.

5

700708364

KIT

PIN KIT - quick disconnect

1шт.

6

8803645

FORK

YOKE - tractor, 540 RPM

1шт.

7

1708239

SHAFT

YOKE WITH SHAFT

1шт.

8

700709007

CLIP

BEARING - shield

4шт.

9

700709009

SHIELD

- outer, plastic

1шт.

10

1708189

FORK

YOKE - clamp

1шт.

11

700709012

YOKE

WITH TUBE

1шт.

12

77032

FITTING

ZERK

1шт.

13

700708997

BEARING

RING - bearing

1шт.
