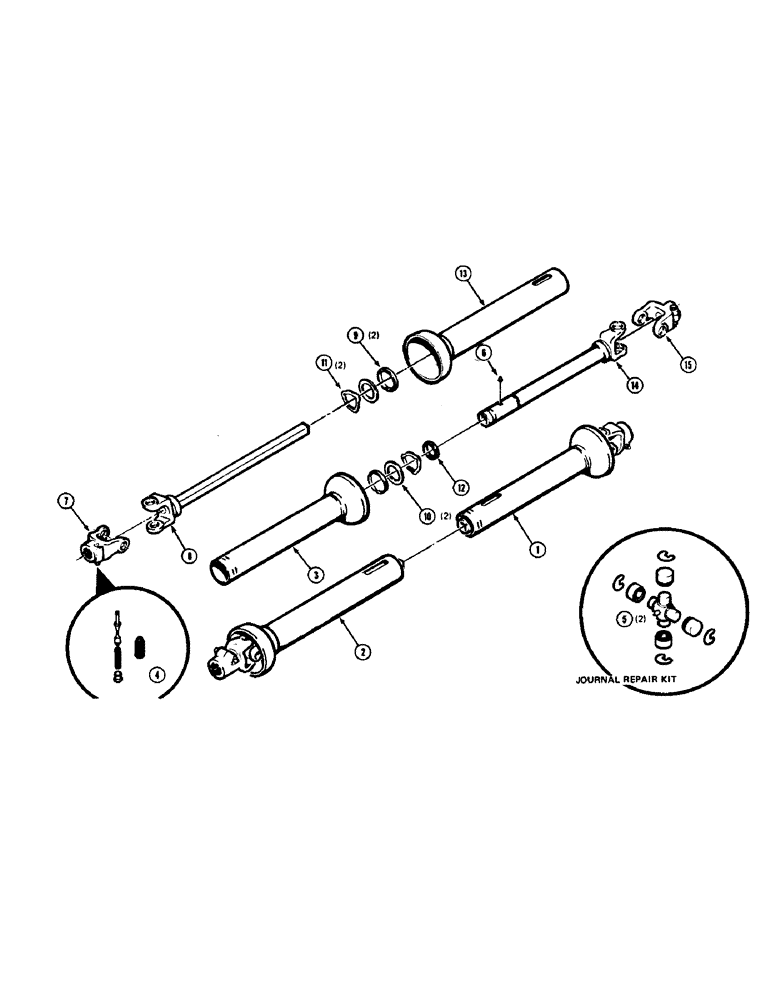

Запчасти Case IH 8540 (18) - IMPLEMENT DRIVE LINE, METAL SHIELDS Driveline

1

1708205

UNIVERSAL JOINT

IMPLEMENT HALF ASSEMBLY (sub. 700709010 implement half assembly and 700709011 tractor half assembly)

1шт.

700709010

YOKE

IMPLEMENT HALF ASSEMBLY (see page 18A.)

1шт.

700709011

YOKE

TRACTOR HALF ASSEMBLY (see page 18A.)

1шт.

2

1708221

UNIVERSAL JOINT

TRACTOR HALF ASSEMBLY (sub. 700709011 tractor half assembly and 700709010 implement half assembly)

1шт.

700709011

YOKE

TRACTOR HALF ASSEMBLY (see page 18A.)

1шт.

700709010

YOKE

IMPLEMENT HALF ASSEMBLY (see page 18A.)

1шт.

3

HFI1708197

SHIELD

inner

1шт.

4

700708364

KIT

PIN KIT

1шт.

5

845198

KIT

JOURNAL REPAIR KIT

2шт.

6

77032

FITTING

1/4-28 zerk

1шт.

7

8803645

FORK

YOKE, tractor

1шт.

8

1708239

SHAFT

YOKE AND SHAFT

1шт.

9

754242

NYLON BEARING,52.88 mm ID x 71.32 mm OD x 9.52 mm

NYLON BEARING

2шт.

10

754291

THRUST WASHER

THRUST WASHER

2шт.

11

754283

OIL SEAL

SNAP RING

2шт.

12

7813801

NYLON BEARING

BEARING, center nylon

1шт.

13

1708247

SHIELD

outer

1шт.

14

1708213

TUBE

YOKE AND TUBE

1шт.

700709012

YOKE

AND TUBE

1шт.

15

1708189

FORK

YOKE, implement

1шт.
