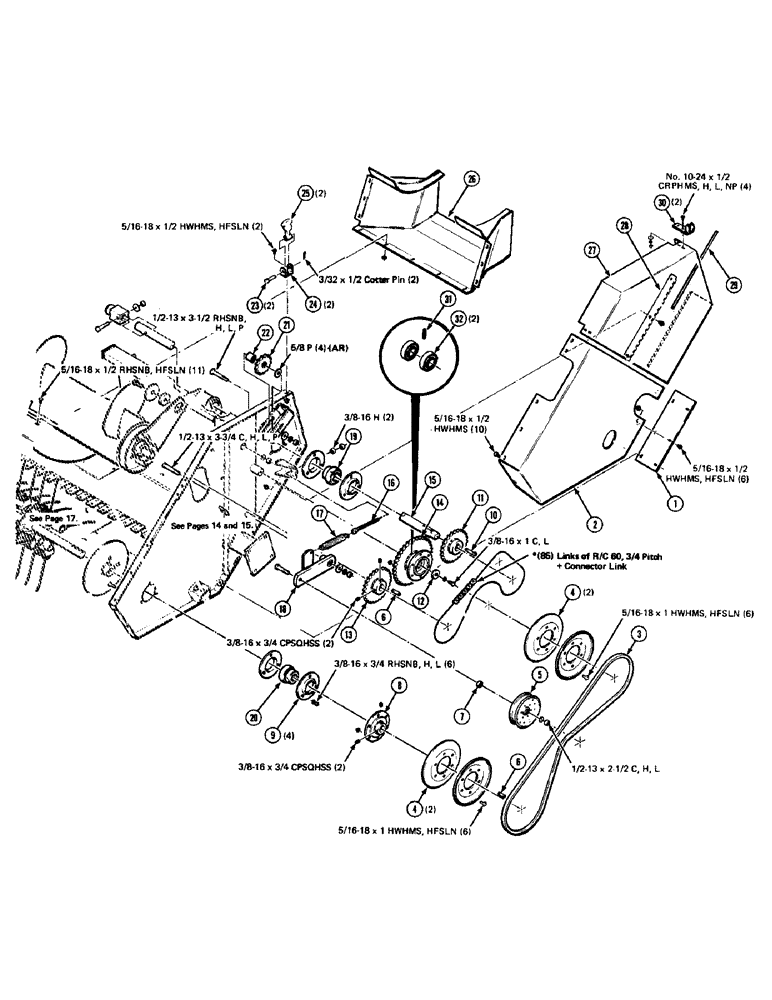

Запчасти Case IH 8540 (16) - PICKUP DRIVE ASSEMBLY Driveline

1

2401520

SHIELD

SUPPORT PLATE, shield

1шт.

2

2400119

SHIELD

1шт.

3

51200826

V-BELT

1шт.

4

6188304

SHEAVE

HALF SHEAVE, 8-1/2 dia.

4шт.

5

853788

PULLEY

FLAT IDLER, 6" dia.

1шт.

6

61085

KEY

1/4 x 1/4 x 1-1/2" key

2шт.

7

NLS

NO LONGER SERVICED

9/16 ID x 13/32" long

1шт.

8

NLS

NO LONGER SERVICED

HUB, vari-sheave

1шт.

9

617863R1

FLANGED BEARING

bearing

4шт.

10

761205

KEY

5/16 x 5/16 x 2 gib key

1шт.

11

6859821

SPROCKET ASSY.

SPROCKET, 60-pitch, 28-tooth

1шт.

12

411579

WASHER

SPECIAL WASHER

1шт.

13

6859813

SPROCKET ASSY.

SPROCKET, 60-pitch, 25-tooth

1шт.

14

6859771

SPROCKET ASSY.

SPROCKET AND PLATE ASSEMBLY, 60-pitch, 25-tooth (includes bearings)

1шт.

15

6859847

SHAFT

drive

1шт.

16

6501167

BOLT

DRAWBOLT, 3/8-16 thread

1шт.

17

58180

SPRING

tension

1шт.

18

2401481

ARM ASSY.

IDLER ARM

1шт.

19

7000708091

SPHERICAL BEARING

1шт.

20

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

SPHERICAL BEARING

1шт.

21

89235

SPROCKET ASSY.

IDLER SPROCKET, 60-pitch, 13-tooth

1шт.

22

480061

HUB

SPACER, 11/16 ID x 1" long

1шт.

23

63784

CLEVIS PIN

1/4 x 1-1/2 clevis pin

2шт.

24

776674

SUPPORT

BRACKET ANCHOR

2шт.

25

776682

HOOK

anchor

2шт.

26

2401485

PANEL

PAN, feeder throat

1шт.

27

2400120

SHIELD

upper

1шт.

28

6852867

HINGE

1шт.

29

6852875

SCREW

PIN, hinge

1шт.

30

776666

BRACKET

anchor

2шт.

31

763623

PIN, ROLL

5/32 x 3/4 slotted spring pin

1шт.

32

587015R92

BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W

AND ADAPTER

2шт.

69203

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

3/8-16 x 3/4 cup point hex socket set screw

4шт.

7870215

CARRIAGE BOLT,Short NK, 5/8"-11 x 3 1/2", G5

5/8-11 x 3-1/2 hex cap screw grade 5

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 x 2-1/2 hex cap screw grade 5

1шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 round head square neck bolt grade 5

6шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 hex washer head machine screw

12шт.

7883317

SCREW,Hex Washer, 5/16" - 18 x 1/2"

5/16-18 x 1/2 hex washer head machine screw

18шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex cap screw grade 5

1шт.

7770282

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

5/16-18 x 1/2 round head square neck bolt grade 5

11шт.

495-31022

WASHER,#10

No. 10 narrow plain washer

4шт.
