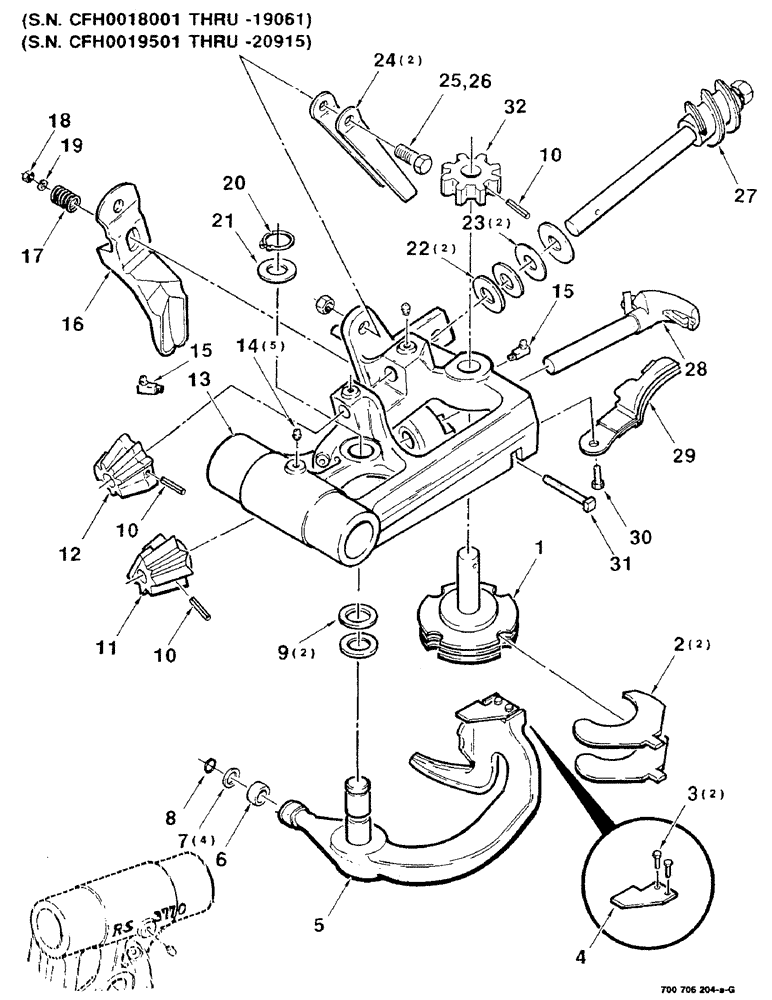

Запчасти Case IH 8530 (6-28) - KNOTTER (TWINE) HEAD ASSEMBLY (RASSPE) (S.N. CFH0018001 - CFH0019061) (S.N. CFH0019501 - CFH0020915) (14) - BALE CHAMBER

700706204

KNOTTER

HEAD COMPLETE (Rasspe) Consist of Ref 1-15

1шт.

1

700707896

TWINE

DISC - twine

1шт.

2

700707902

CLEANER

- knotter

2шт.

3

700707886

BOLT,M4 x 10

M4 X .07 X 10 C

2шт.

4

700707884

KNIFE

- twine

1шт.

5

700707883

ARM

ASSEMBLY - knife

1шт.

6

700707887

ROLLER

- spherical

1шт.

7

7852593

SHIM,15mm ID x 21mm OD x 1mm Thk

9/16 X 20 GA MACHINERY BUSHING

4шт.

8

700707888

CIRCLIP

RING - retainer

1шт.

9

700707890

SPACER

2шт.

10

700707898

PIN

SLOTTED SPRING PIN

3шт.

11

700710906

PINION

GEAR - pinion, bill hook

1шт.

12

700710904

GEAR

- pinion

1шт.

13

700707882

FRAME

HEAD

1шт.

14

77602

PROTECTION STRIP

ZERK

5шт.

15

77453

NIPPLE, LUBE

90 DEGREE ZERK

2шт.

16

700707891

JAW

CAM - jaw, bill hook

1шт.

17

700707894

SPRING

- cam

1шт.

18

832-41308

NUT,M8 x 1.25, Cl 10

8 X 1.25 HTLN

1шт.

19

700707895

WASHER

SPACER - cam

1шт.

20

852533

OIL SEAL

RING - retainer, external

1шт.

21

700707889

SPACER

1шт.

22

7852163

BUSHING

5/8 X 20 GA MACHINERY BUSHING

2шт.

23

6553275

SHIM

5/8 X .007 SHIM

2шт.

24

700707905

SPRING

- twine

2шт.

25

700708349

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

M10 X 1.5 X 25 C

1шт.

26

7704398

NUT,M10, Cl 8

10 X 1.5 H

1шт.

27

700707900

SHAFT

ASSEMBLY - worm

1шт.

28

700707906

HOOK

BILL HOOK ASSEMBLY

1шт.

29

700707903

TWINE

HOLDER - twine

1шт.

30

700707904

BOLT,Spcl

SHOULDER - screw

1шт.

31

700707892

BOLT

- special

1шт.

32

700707897

GEAR

- pinion, twine disc

1шт.
