Запчасти Case IH 8530 (6-26) - KNOTTER (TWINE) HEAD ASSEMBLY (HFI) (S.N. CFH0019062 AND LATER), (S.N. CFH0020916 AND LATER) (14) - BALE CHAMBER

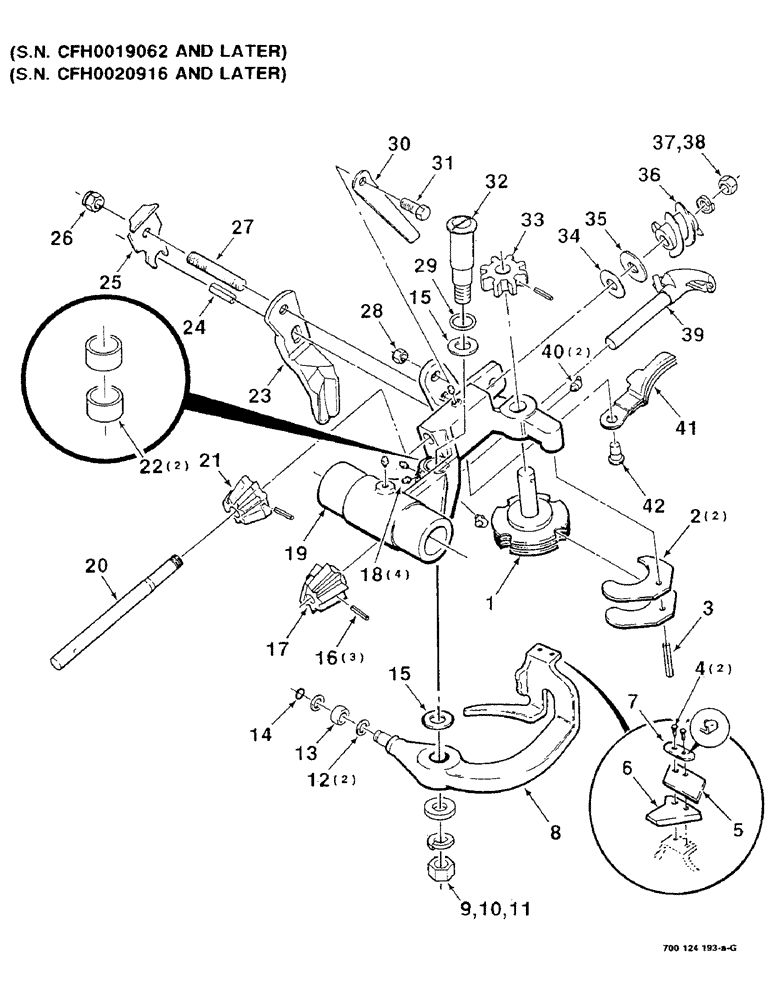

Схема запчастей Case IH 8530 - (6-26) - KNOTTER (TWINE) HEAD ASSEMBLY (HFI) (S.N. CFH0019062 AND LATER), (S.N. CFH0020916 AND LATER) (14) - BALE CHAMBER
10
28
29
11
42
35
37
7
20
24
25
4
1
31
2
26
8
3
41
9
14
19
33
30
17
40
16
6
27
21
12
13
32
39
5
34
15
23
18
36
38
15
22

Артикул

Название

Примечание

Количество

700124193

KNOTTER

HEAD COMPLETE

1шт.

1

8745358

DISC

- twine

1шт.

2

6853352

CLEANER

- knotter

2шт.

3

63396

LOCK PIN,3/16" x 1 1/2", Slotted

Pin, 3/16" x 1 1/2", Slotted

1шт.

4

8701625

SCREW,Hex, #10 - 32 x 1/2"

10-32 X 1/2 HHMS

2шт.

5

6858971

BASE

- knife

1шт.

6

49783

KNIFE

- twine

1шт.

7

6613624

WASHER, LOCK

TAB - lock

1шт.

8

700122620

ARM

- stripper

1шт.

9

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

11

704148

NUT

1/2-20 HEX JAM NUT

1шт.

12

7852593

SHIM,15mm ID x 21mm OD x 1mm Thk

9/16 X 20 GA. MB - special

2шт.

13

700122799

ROLLER

- spherical

1шт.

14

7852577

RING, SNAP

RING - retainer

2шт.

15

7852742

WASHER,19.84mm ID x 27.38mm OD x 0.889mm Thk

25/32 X 20 GA. MB - special

1шт.

16

863761

PIN, GROOVED

3/16 X 7/8 GROOVE PIN

3шт.

17

7894389

PINION

GEAR - pinion, bill hook

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

19

700122619

FUNNEL

KNOTTER HEAD FRAME ASSEMBLY (Includes item 22)

1шт.

20

6553267

SHORT SHAFT

SHAFT - worm, knotter

1шт.

21

7894421

WORM

GEAR - bevel, pinion, worm

1шт.

22

700710315

BUSHING,19.03mm ID x 22.24mm OD x 12.95mm L

2шт.

23

6523203

CAM

- bill hook

1шт.

24

138-153

LOCK PIN,5/16" x 1", Slotted

5/16 X 1 SLOTTED SPRING PIN

1шт.

25

7895733

SPRING

TENSIONER - spring

1шт.

26

231-1445

NUT,5/16"-18, GB

5/16-18 LIGHT HEX STOP NUT

1шт.

27

6523229

STUD

- mounting

1шт.

28

704064

NUT

3/8-16 HEX JAM NUT

1шт.

29

733048

O-RING

1шт.

30

6553259

SPRING

- twine

1шт.

31

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

1шт.

32

700122621

SHAFT

- knife arm

1шт.

33

7894454

PINION

GEAR - pinion, twine disc

1шт.

34

6553275

SHIM

- countershaft

1шт.

35

7852163

BUSHING

5/8 X 20 GA. MB - spherical

1шт.

36

7894413

WORM GEAR

GEAR - worm

1шт.

37

704304

NUT

3/8-24 H

1шт.

38

705038

CONTROL VALVE

3/8"

1шт.

39

700108195

BILL HOOK

- knotter

1шт.

40

77057

1/4-28 X 90 DEGREE ZERK

2шт.

41

8745325

HOLDER

- twine

1шт.

42

6523237

SCREW

SHOULDER SCREW

1шт.

Выбрано товаров: 43
