Запчасти Case IH 8530 (6-22) - KNOTTER CONTROL ASSEMBLY (RASSPE) (S.N. CFH0018001 THRU CFH0019061)(S.N. CFH0019501 THRU CFH0020915) (14) - BALE CHAMBER

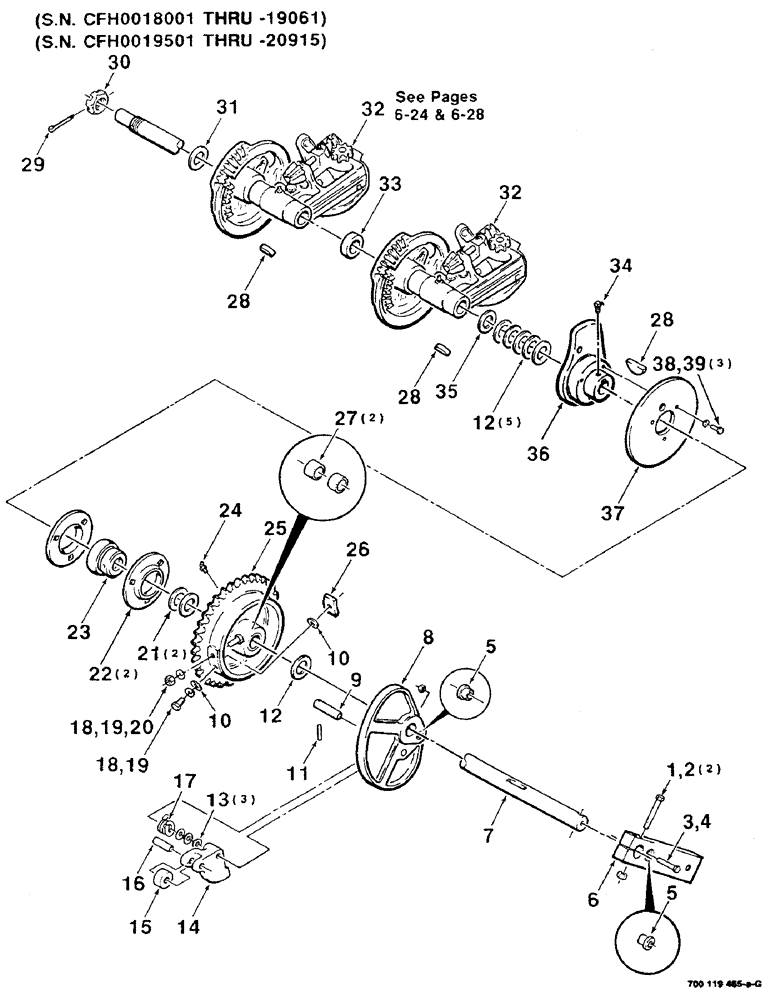

Схема запчастей Case IH 8530 - (6-22) - KNOTTER CONTROL ASSEMBLY (RASSPE) (S.N. CFH0018001 THRU CFH0019061)(S.N. CFH0019501 THRU CFH0020915) (14) - BALE CHAMBER
5
8
10
37
15
34
12
32
36
17
28
39
7
29
14
1
10
12
33
27
28
23
26
19
32
9
13
5
18
3
18
38
24
19
20
31
30
35
11
2
4
16
28
6
21
22
25

Артикул

Название

Примечание

Количество

1

7701899

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 X 2-1/2 C

2шт.

2

704635

NUT

3/8-16 HCLN GR/C

2шт.

3

7703507

DECAL,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 X 2 C

1шт.

4

704163

LOCK NUT

5/16-18 HTLN GR/B

1шт.

5

6853592

SLEEVE

- shear

2шт.

6

6853840

ARM

- needle (Includes item 5)

1шт.

7

700112502

SHAFT

- drive, knotter

1шт.

8

700119467

CAM

ASSEMBLY - clutch (Includes item 5)

1шт.

If dealer's casting number on his old cam is 8030702, he should order cam assembly 6853659.

1шт.

9

6853642

PIN

- dog

1шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

2шт.

11

63024

SPRING

1/8 X 1-1/4 SLOTTED SPRING PIN

1шт.

12

7852171

BUSHING

1-1/8 X 20 GA. MB - special

6шт.

13

52167

SUPPORT

1/2 X 18 GA. NRMB

3шт.

14

6853626

DRIVE DOG

DOG - cam

1шт.

15

6853634

ROLLER

1шт.

16

762286

PIN

- dowel

1шт.

17

7758857

SPRING

- torsion

1шт.

18

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 X 3/4 C

2шт.

19

705038

CONTROL VALVE

3/8"

2шт.

20

704064

NUT

3/8-16 HEX JAM NUT GR/2

1шт.

21

7852189

BUSHING

1-1/8 X 22 GA. MB - special

2шт.

22

50534

FLANGED BEARING

- bearing

2шт.

23

700708095

SPHERICAL BEARING

BEARING - spherical

1шт.

24

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1/4-28 X 45 DEGREE ZERK

1шт.

25

6853303

PINION

SPROCKET ASSEMBLY (Includes item 27)

1шт.

26

6853857

LUG

1шт.

27

7852023

BUSHING

- bronze

2шт.

28

700703198

WOODRUFF KEY,#28, 5/16" x 2 1/8"

5/16 X 2-1/8 WOODRUFF KEY

3шт.

29

62299

PIN

1/4 X 1-1/2 COTTER PIN

1шт.

30

7774581

SLOTTED NUT

1-1/8-12 SLOTTED HEX NUT GR/2

1шт.

31

52522

BUSHING

1-1/8 X 10 GA. NRMB

1шт.

32

700709864

KNOTTER

AND GEAR ASSEMBLY

2шт.

33

700112503

SPACER

1шт.

34

83984714

SET SCREW,Sq Hd, 3/8"-16 x 1/2", Cup Pt

3/8-16 X 1/2 CPSQHSS

1шт.

35

6553317

ADJUSTING PLATE

1-1/8 X .005 SHIM

1шт.

36

700121550

CAM

- knotter

1шт.

37

6553283

DISC

- brake

1шт.

38

7703457

HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 C

3шт.

39

705012

LOCK WASHER

1/4"

3шт.

FOOTNOTE

1шт.

Item #8-If dealer's casting number on his old cam is 8030702, he should order cam assembly 6853659.

1шт.

Выбрано товаров: 42
