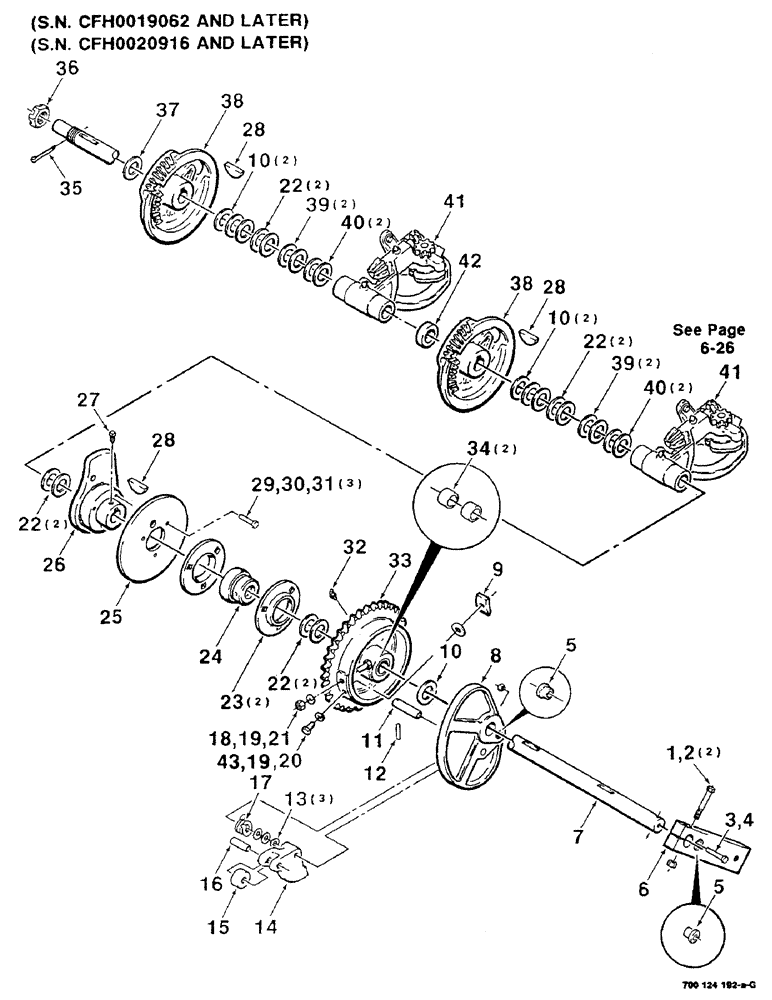

Запчасти Case IH 8530 (6-20) - KNOTTER CONTROL ASSEMBLY (HFI) (S.N. CFH0019062 AND LATER), (S.N. CFH0020916 AND LATER) (14) - BALE CHAMBER

1

7701899

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 X 2-1/2 C

2шт.

2

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/C

2шт.

3

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 X 2 C

1шт.

4

231-4115

NUT,5/16"-18, GB

5/16-18 HTLN GR/C

1шт.

5

6853592

SLEEVE

- shear

2шт.

6

6853840

ARM

- needle (Includes item 5)

1шт.

7

700112446

SHAFT

- drive, knotter

1шт.

8

700119467

CAM

ASSEMBLY - clutch (Includes item 5)

1шт.

If dealer's casting number on his old cam is 8030702, he should order cam assembly 6853659.

1шт.

9

6853857

LUG

1шт.

10

7852171

BUSHING

1-1/8 X 20 GA. MB - special

5шт.

11

6853642

PIN

- dog

1шт.

12

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1/8 X 1-1/4 SLOTTED SPRING PIN

1шт.

13

95-81100

WASHER,33/64" x 7/8" x .049"

1/2 X 18 GA. NRMB

3шт.

14

6853626

DRIVE DOG

DOG - cam

1шт.

15

6853634

ROLLER

1шт.

16

762286

PIN

- dowel

1шт.

17

7758857

SPRING

- torsion

1шт.

18

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 X 3/4 C

1шт.

19

705038

CONTROL VALVE

3/8"

2шт.

20

705533

WASHER

3/8 HARDENED PLAIN WASHER

1шт.

21

704064

NUT

3/8-16 HEX JAM NUT GR/2

1шт.

22

7852189

BUSHING

1-1/8 X 22 GA. MB - special

8шт.

23

50534

FLANGED BEARING

- bearing

2шт.

24

700708095

SPHERICAL BEARING

BEARING - spherical

1шт.

25

6553283

DISC

- brake

1шт.

26

700121550

CAM

- knotter

1шт.

27

485-1388

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

3/8-16 X 1/2 CPSQHSS,Set screw

1шт.

28

700703198

WOODRUFF KEY,#28, 5/16" x 2 1/8"

5/16 X 2-1/8 WOODRUFF KEY

3шт.

29

7703457

HYD CONNECTOR,Hex, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 C

3шт.

30

705012

LOCK WASHER

1/4"

3шт.

31

704007

NUT,1/4"-20, G5

1/4-20 H

3шт.

32

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1/4-28 X 45 DEGREE ZERK

1шт.

33

6853303

PINION

SPROCKET ASSEMBLY (Includes item 34)

1шт.

34

7852023

BUSHING

- bronze

2шт.

35

62299

PIN

1/4 X 1-1/2 COTTER PIN

1шт.

36

7774581

SLOTTED NUT

1-1/8-12 SLOTTED HEX NUT GR/2

1шт.

37

52522

BUSHING

1-1/8 X 10 GA. NRMB

1шт.

38

6553291

GEAR

- cam

2шт.

700122623

GEAR

- cam

2шт.

39

6553317

ADJUSTING PLATE

1-1/8 X .005 SHIM

4шт.

40

6553325

ADJUSTING PLATE

SHIM - 1.125 x 010

4шт.

41

700124193

KNOTTER

HEAD ASSEMBLY - knotter

2шт.

42

6853899

SPACER

1шт.

43

772376

BOLT,3/8" - 16 x 7/8", Gr 5

3/8-16 X 7/8 C

1шт.
