Запчасти Case IH 8530 (6-16) - KNOTTER CONTROL ASSEMBLY (HFI) (S.N. CFH0019062 AND LATER), (S.N. CFH0020916 AND LATER) (14) - BALE CHAMBER

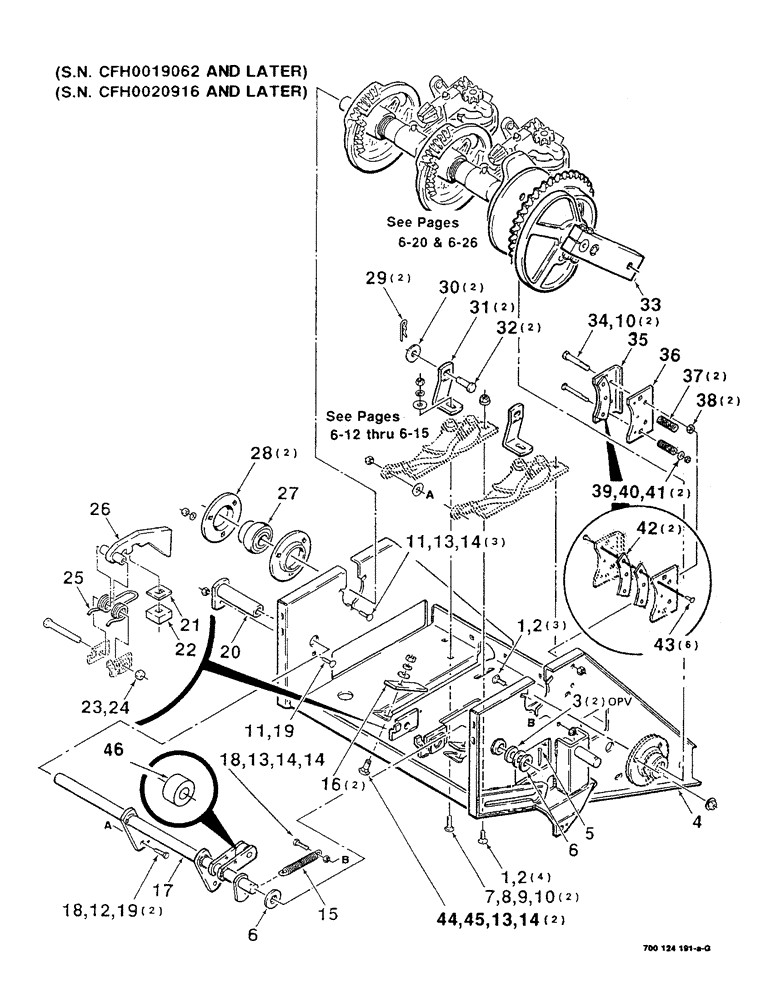

Схема запчастей Case IH 8530 - (6-16) - KNOTTER CONTROL ASSEMBLY (HFI) (S.N. CFH0019062 AND LATER), (S.N. CFH0020916 AND LATER) (14) - BALE CHAMBER
11
29
18
36
46
32
6
45
40
15
1
28
38
43
27
17
41
1
20
6
34
19
35
14
10
16
44
10
18
2
33
7
23
19
25
13
13
22
5
42
37
31
11
39
12
3
14
14
8
24
2
21
13
14
4
9
26
30

Артикул

Название

Примечание

Количество

1

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

7шт.

2

704247

NUT

3/8-16 HFSLN

7шт.

3

NLS

NO LONGER SERVICED

3/4 X 14 GA. NRMB

2шт.

4

700119473

FUNNEL

FRAME - knotter

1шт.

5

62224

PIN, SPLIT (COTTER)

3/8 X 16 X 1 COTTER PIN

1шт.

6

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

7

700047

BOLT

3/8-16 X 1 RHSNB

2шт.

8

705533

WASHER

3/8 HARDENED PLAIN WASHER

2шт.

9

705038

CONTROL VALVE

3/8"

2шт.

10

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

11

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

4шт.

12

705525

WASHER

5/16 HARDENED PLAIN WASHER

2шт.

13

705020

LOCK WASHER

5/16"

6шт.

14

704015

NUT,5/16"-18, G5

5/16-18 H

7шт.

15

7758147

SPRING

- tension

1шт.

16

700705653

SHIELD

2шт.

17

700112443

SHAFT

- cam follower (Includes item 46)

1шт.

18

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 X 1 C

3шт.

19

231-4115

NUT,5/16"-18, GB

5/16-18 HTLN GR/B

3шт.

20

6553523

ANCHOR

MOUNTING - bearing

1шт.

21

700108418

WASHER

- special

1шт.

22

700703778

BUMPER

1шт.

23

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

1шт.

24

704858

LOCK NUT

1/2-13 HTLN GR/B

1шт.

25

700707863

SPRING

- torsion

1шт.

26

700117281

DRIVE DOG

DOG - hay

1шт.

27

50302

SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm

- spherical

1шт.

28

51200380

FLANGE

- bearing

2шт.

29

62521

COTTER PIN

.125 HAIRPIN COTTER

2шт.

30

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

31

700124189

SUPPORT

- knotter

2шт.

32

427-8136

CLEVIS PIN,1/2" x 1.360"

1/2 X 1 CLEVIS PIN

2шт.

33

700124192

ASSEMBLY

KNOTTER ASM

1шт.

34

7701899

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 X 2-1/2 C

2шт.

35

6553556

BRACKET

BRAKE ASSEMBLY - right (Includes items 42 & 43)

1шт.

36

6553572

BRAKE LINING

BRAKE ASSEMBLY - left (Includes items 42 & 43)

1шт.

37

7758154

SPRING

- compression

2шт.

38

704064

NUT

3/8-16 HEX JAM NUT

2шт.

39

7770233

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2 1/2", Gr 5

1/4-20 X 2-1/2 RHSNB

2шт.

40

705517

WASHER

1/4 HARDENED PLAIN WASHER

2шт.

41

7774839

LOCK NUT

1/4-20 HTLN GR/B

2шт.

42

700711021

BRAKE LINING

LINING - brake

2шт.

43

64980

RIVET

- aluminum

6шт.

44

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 X 1 RHSNB

2шт.

45

700709602

WASHER,5/16"

5/16 WIDE PLAIN WASHER

2шт.

46

6553424

ROLLER

1шт.

Выбрано товаров: 46
