Запчасти Case IH 8530 (6-14) - FINGER (TWINE) GUIDE ASSEMBLY, (S.N. CFH0018717 AND LATER), (S.N. CFH0020517 AND LATER) (14) - BALE CHAMBER

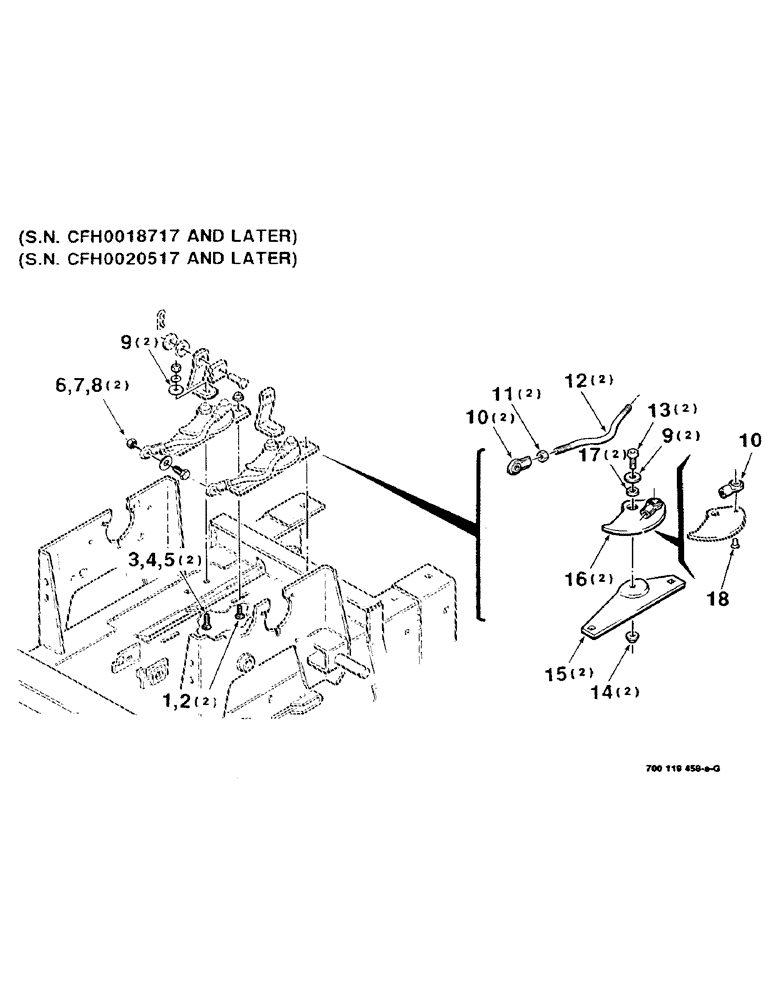

Схема запчастей Case IH 8530 - (6-14) - FINGER (TWINE) GUIDE ASSEMBLY, (S.N. CFH0018717 AND LATER), (S.N. CFH0020517 AND LATER) (14) - BALE CHAMBER
9
15
3
9
7
4
10
1
8
13
14
18
5
16
11
2
12
10
17
6

Артикул

Название

Примечание

Количество

1

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

2шт.

2

704247

NUT

3/8-16 HFSLN

2шт.

3

700047

BOLT

3/8-16 X 1 RHSNB

2шт.

4

705038

CONTROL VALVE

3/8"

2шт.

5

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.

6

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 X 1 C

2шт.

7

705525

WASHER

5/16 HARDENED PLAIN WASHER

2шт.

8

231-4115

NUT,5/16"-18, GB

5/16-18 HTLN GR/C CW

2шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

4шт.

10

700703692

ADJUSTMENT ROD

ROD - end

3шт.

11

704429

NUT

5/16-24 H

2шт.

12

700119462

ROD

2шт.

13

7884414

CAPSCREW,Button Hd, 3/8" - 16 x 1", Gr 8

3/8-16 HSBHCS

2шт.

14

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

15

700119459

MOUNTING PARTS

MOUNTING - finger

2шт.

16

700120654

FINGER

ASSEMBLY - twine (Includes items 10 & 18)

2шт.

17

6553614

SPACER

2шт.

18

700709157

RIVET

5/16 X 3/4 RIVET - flat

1шт.

Выбрано товаров: 18
