(6-12) - FINGER (TWINE) GUIDE ASSEMBLY, (S.N. CFH0018001 THRU CFH0018716), (S.N. CFH00190501 THRU CFH0020516)

Запчасти Case IH 8530 (6-12) - FINGER (TWINE) GUIDE ASSEMBLY, (S.N. CFH0018001 THRU CFH0018716), (S.N. CFH00190501 THRU CFH0020516) (14) - BALE CHAMBER

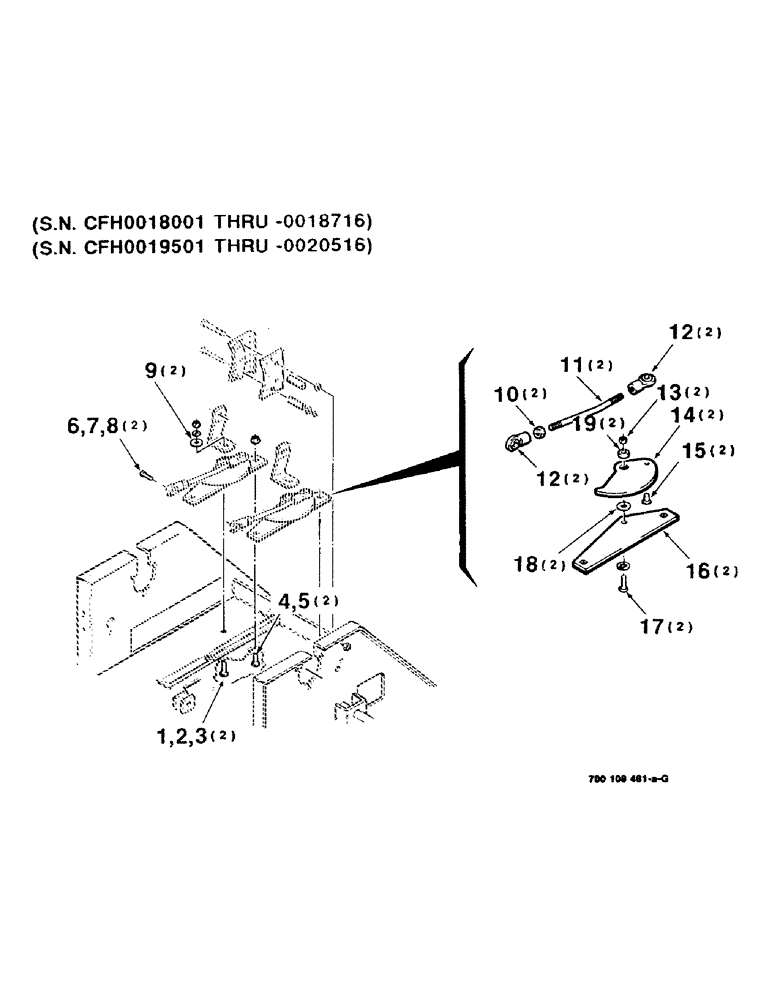

Схема запчастей Case IH 8530 - (6-12) - FINGER (TWINE) GUIDE ASSEMBLY, (S.N. CFH0018001 THRU CFH0018716), (S.N. CFH00190501 THRU CFH0020516) (14) - BALE CHAMBER
4
9
6
18
1
3
15
14
7
12
17
16
11
2
8
13
12
5
10
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700047

BOLT

3/8-16 X 1 RHSNB

2шт.

2

705038

CONTROL VALVE

3/8"

2шт.

3

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.

4

770065

FRAME

3/8-16 X 3/4 RHSNB

2шт.

5

704247

NUT

3/8-16 HFSLN

2шт.

6

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 X 1 C

2шт.

7

705020

LOCK WASHER

5/16"

2шт.

8

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

9

705533

WASHER

3/8 HARDENED PLAIN WASHER

2шт.

10

704429

NUT

5/16-24 H

2шт.

11

700108483

ROD

2шт.

12

700703692

ADJUSTMENT ROD

ROD - end

4шт.

13

88902

NUT,3/8"-16

3/8-16 HCLN

2шт.

14

700108482

FINGER

- twine

2шт.

15

700703693

RIVET

- flat, head

2шт.

16

6553606

MOUNTING PARTS

MOUNTING - finger

2шт.

17

7884414

CAPSCREW,Button Hd, 3/8" - 16 x 1", Gr 8

3/8-16 HSBHCS

2шт.

18

705657

WASHER

3/8 NARROW PLAIN WASHER

2шт.

19

6553614

SPACER

2шт.
